Energized Water Scanner - mechanical PCB template is an open source PCB design by jhbryan0817-del, published on GitHub. It is a 2-layer board measuring 91 × 124 mm, with 4 components from 1 distinct parts.
From the project
A small unmanned surface vessel for research into detecting and mapping electrical hazards in flooded areas. Two deployable electrodes, E2/E4, measure voltage difference; the vessel must combine that measurement with validated probe pose, orientation and location. A low reading c
A small unmanned surface vessel for research into detecting and mapping electrical hazards in flooded areas. Two deployable electrodes, E2/E4, measure voltage difference; the vessel must combine that measurement with validated probe pose, orientation and location. A low reading cannot establish that water is safe.

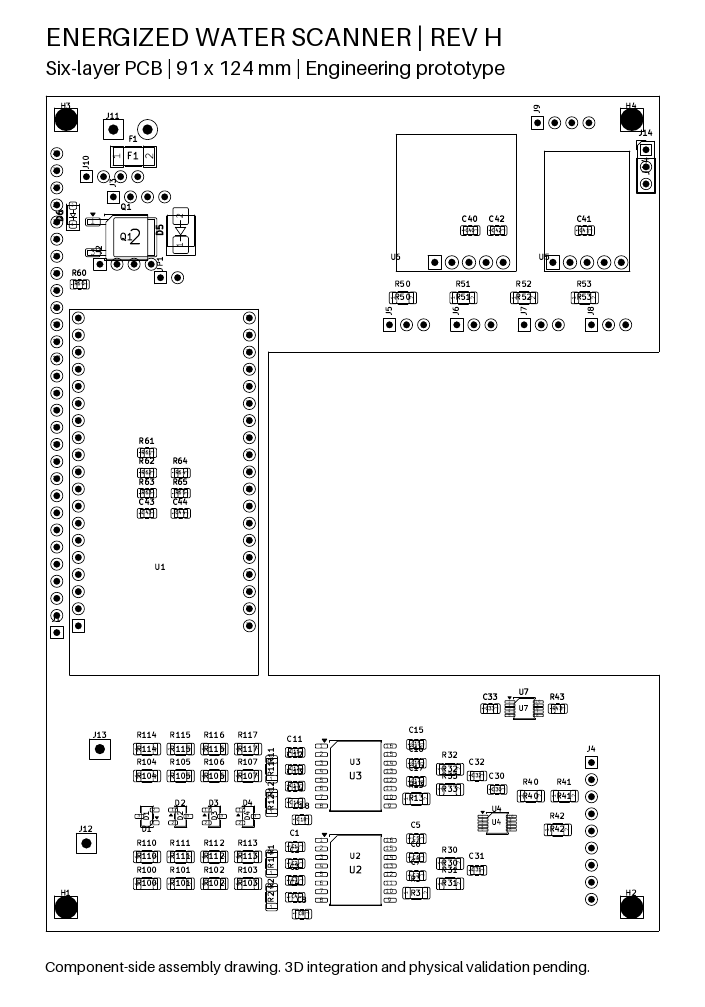

Electronics: Rev H engineering prototype. Mechanical assembly: live Fusion Rev I. The PCB retains the 91 × 124 mm U-shaped perimeter, 58 × 48 mm motor opening, four mounting holes and 2 mm thickness. Six copper layers accommodate the revised electronics. The live Fusion assembly…
Energized Water Scanner - mechanical PCB template bill of materials (BOM)
4 components, 1 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | M3 clearance 3.4mm | H1, H2, H3, H4 |
Energized Water Scanner - mechanical PCB template design files
The KiCad project lives in the jhbryan0817-del/Energized_Water_Scan repository on GitHub; these links point at the commit this page was built from.
Energized Water Scanner - mechanical PCB template: common questions
How big is the Energized Water Scanner - mechanical PCB template?
The Energized Water Scanner - mechanical PCB template measures 91 × 124 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Energized Water Scanner - mechanical PCB template?
4 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Energized Water Scanner - mechanical PCB template design files?
From the jhbryan0817-del/Energized_Water_Scan repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Energized Water Scanner - mechanical PCB template design in my own project?
The repository has no license, so all rights stay with jhbryan0817-del. Use it as a reference, and ask the author before reusing the design.
