WLED PCB V2 LEDs
About the WLED PCB V2 LEDs
WLED PCB V2 LEDs is an open source PCB design by jhns-de, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 40 × 14.3 mm, with 5 components from 3 distinct parts.
By type, the board carries 3 diodes and 2 connectors.
From the project
This is an advanced PCB to control a 12V GS8208 LED Stripe with WLED.

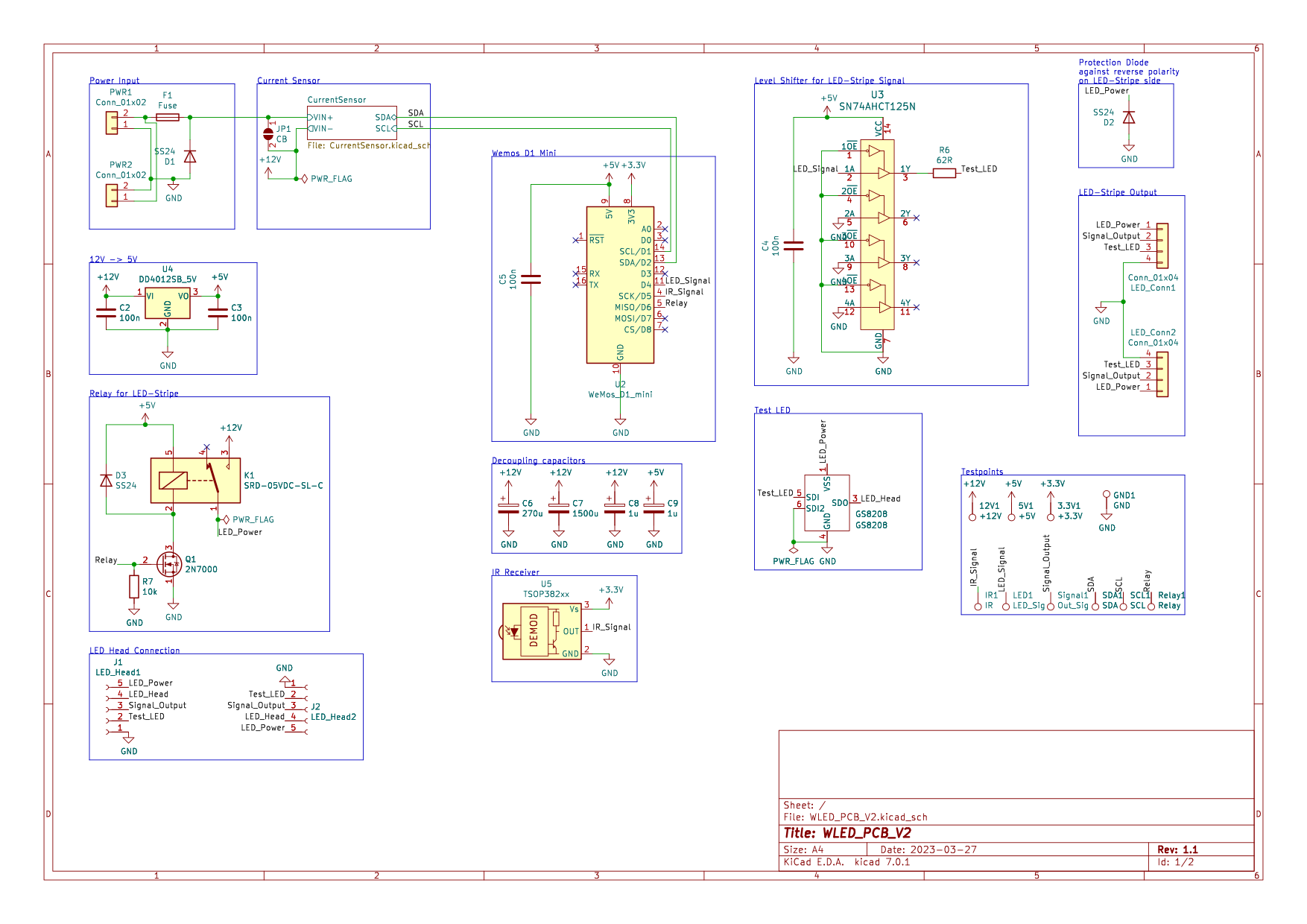

This is an ESP8266 based controller to drive addressable 12V GS8208 LED Strips with the amazing WLED firmware.
- Dimensions 95mm x 40mm - Onboard LED for testing - Fuse for overcurrent protection - Reverse polarity protection for input and output - Recommended SN74AHCT125N Levelshifter - Multiple decoupling capacitors - IR receiver - Relay for completely switching of the LED Stripe - INA219 power sensor - Multiple test points - Onboard LED Stripe extension adapter
WLED PCB V2 LEDs bill of materials (BOM)
5 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LED_Head1 | PinHeader_1x05_P2.54mm_Vertical | J1 |
| 1 | LED_Head2 | PinHeader_1x05_P2.54mm_Vertical | J2 |
| 3 | GS8208 | GS8208 | D1, D2, D3 |
WLED PCB V2 LEDs design files
The KiCad project lives in the jhns-de/WLED-PCB-V2 repository on GitHub; these links point at the commit this page was built from.
WLED PCB V2 LEDs: common questions
How big is the WLED PCB V2 LEDs?
The WLED PCB V2 LEDs measures 40 × 14.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the WLED PCB V2 LEDs?
5 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the WLED PCB V2 LEDs design files?
From the jhns-de/WLED-PCB-V2 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the WLED PCB V2 LEDs design in my own project?
Yes, under the terms of its GPL-3.0 license, which jhns-de chose for the repository.
