DhMonitor PCB layout, top view — open source board by Jodaille

About the DhMonitor PCB

DhMonitor is an open source PCB design by Jodaille, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 58.4 × 69.9 mm, with 11 components from 10 distinct parts.

By type, the board carries 10 connectors and 1 resistor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Kicad project using Arduino pro mini for beehive monitoring

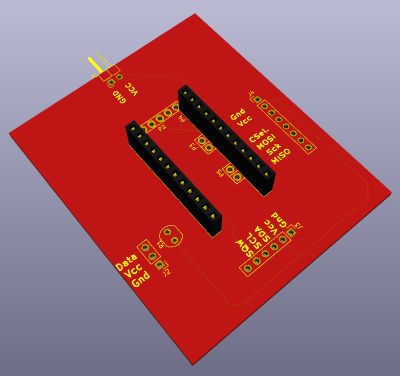

DhMonitor, from the project README
From the project README

DhMonitor bill of materials (BOM)

11 components, 10 distinct parts.

QtyPartRefs
1
Power
J1
1
DS18B20
J2
1
RTC
J3
1
SD Card Module
J4
1
HX711
J5
1
Digital
P1
1
COM
P2
2
ADC
P3, P5
1
Analog
P4
1
47k
R1

DhMonitor design files

The KiCad project lives in the Jodaille/DhMonitor repository on GitHub; these links point at the commit this page was built from.

DhMonitor: common questions

How big is the DhMonitor PCB?

The DhMonitor measures 58.4 × 69.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DhMonitor?

11 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the DhMonitor design files?

From the Jodaille/DhMonitor repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the DhMonitor design in my own project?

Yes, under the terms of its GPL-3.0 license, which Jodaille chose for the repository.
