Basic65 PCB layout, top view — open source board by JonyBepary

About the Basic65 PCB

Basic65 is an open source PCB design by JonyBepary, published on GitHub under the MIT license. It is a 2-layer board measuring 303.2 × 93.7 mm, with 141 components from 9 distinct parts.

By type, the board carries 67 diodes, 3 switches and 1 connector.

It belongs with the iot & wireless, keyboards and power & battery designs in this gallery.

From the project

SecureHID combines blockchain and post-quantum cryptography to secure HID communication against device impersonation, tampering, and MITM attacks. It provides decentralized device verification, dynamic encryption, quantum-resistant key management, hardware-based trust, and auditable security for USB, Bluetooth, and PS/2 devices.

- Schematic → PCB: kicad-cli sch erc → kicad-cli pcb drc. - Gerbers: File → Fabrication Outputs → Gerbers (X2) + Drill → zip BCu.gbr, FCu.gbr, EdgeCuts.gbr … (see top-level FABRICATION.md pattern). - BOM / POS: Tools → Generate BOM (JLCPCB), Fabrication → Component Placement → pos.csv. Placeholder in BOM.md`.

Rows/cols map to nicenano pins — verify in schematic vs ../../firmware/kmk/quickpin/promicro/nicenano.py. Battery from P013/VBAT, power switch on RAW.

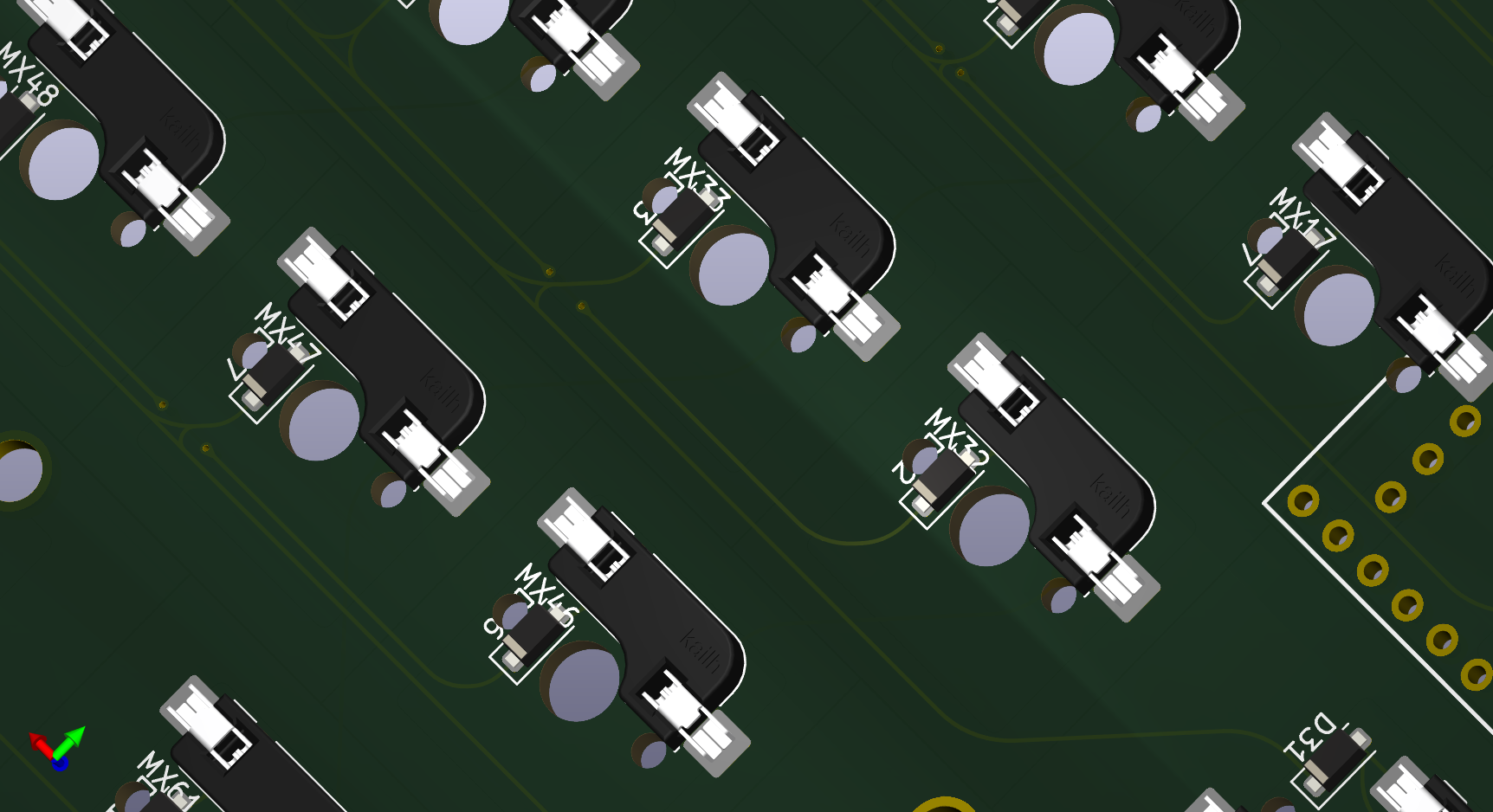

Basic65, from the project README
From the project README

Basic65 bill of materials (BOM)

141 components, 9 distinct parts.

QtyPartRefs
1
Conn_01x02_Socket
J1
58
MX_SW_HS
MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 +50
2
MX_SW_HS
MX16, MX29
2
MX_SW_HS
MX31, MX56
7
MX_SW_HS
MX59, MX60, MX61, MX63, MX64, MX69, MX70
1
MX_SW_HS
MX68
1
MX_stab
S1
2
MX_stab
S2, S3
67
D_Small
D1, D2, D3, D4, D5, D6, D7, D8 +59

Basic65 design files

The KiCad project lives in the JonyBepary/secure-hid repository on GitHub; these links point at the commit this page was built from.

Basic65: common questions

How big is the Basic65 PCB?

The Basic65 measures 303.2 × 93.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Basic65?

141 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Basic65 design files?

From the JonyBepary/secure-hid repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Basic65 design in my own project?

Yes, under the terms of its MIT license, which JonyBepary chose for the repository.
