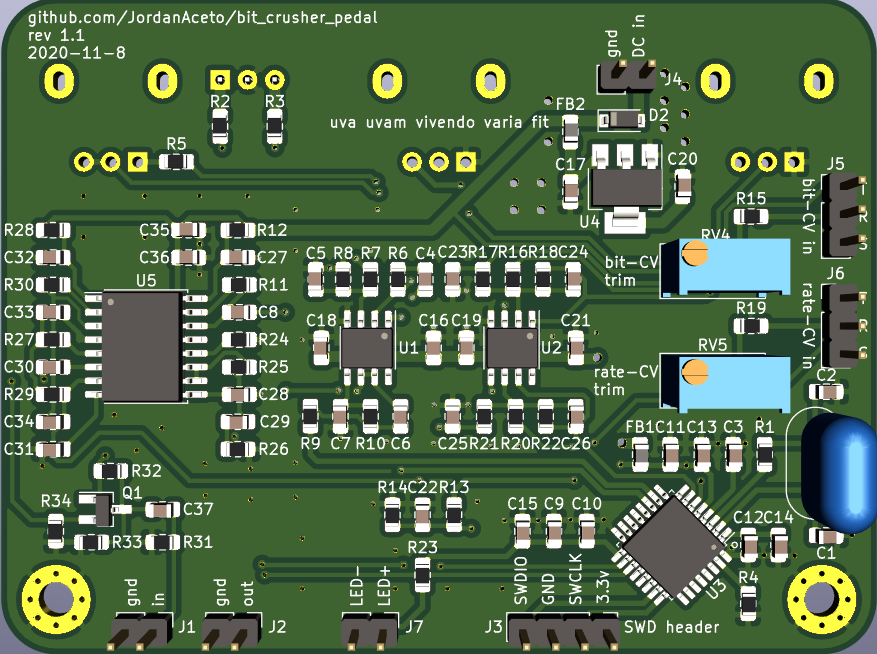

Bit Crusher Pedal PCB layout, top view — open source STM32 board by JordanAceto

About the Bit Crusher Pedal PCB

Bit Crusher Pedal is an open source STM32 PCB design by JordanAceto, published on GitHub. It is a 2-layer board measuring 81.3 × 61 mm, with 94 components from 43 distinct parts.

Its main chip is the STM32F334K6Tx, from the STM32 family. Other key parts include the MCP6002-xP, AMS1117-3.3 and NE570. By type, the board carries 37 capacitors, 34 resistors, 7 connectors, 5 ICs, 2 diodes and 2 inductors.

It belongs with the audio designs in this gallery.

From the project

stm32 based bit-crusher and sample-rate-reducer pedal

The audio signal is immediately buffered by a FET source-follower which provides a high impedance input as expected by guitars and other musical instruments.

The signal is then compressed by 1/2 of an NE570 compandor chip configured as a compressor. This compression squishes the audio signal into a reduced range so that both quiet and loud signals take up enough ADC resolution for the algorithm to work with.

Bit Crusher Pedal, from the project README
