Projet ee410 PCB layout, top view — open source AVR/Arduino board by josedsneto

About the Projet ee410 PCB

Projet ee410 is an open source AVR/Arduino PCB design by josedsneto, published on GitHub. It is a 2-layer board measuring 39.8 × 80.7 mm, with 16 components from 10 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. Other key parts include the ADXL359. By type, the board carries 8 capacitors, 3 connectors, 2 switches, 1 IC, 1 module and 1 resistor.

From the project

Projet EE410

Nous souhaitons développer un capteur de chute, à l'aide d'un axéléromètre 3 Axes. Lorsqu'une chute est détectée : - Une alerte via un vibreur est transmise à l'utilisateur. - Il dispose de 10 secondes pour confirmer qu'il ne s'est pas évanoui via un bouton. - Si il a confirmé qu'il était conscient, rien ne se passe. - En revanche, si il n'a rien confirmé alors une alerte est envoyé par bluetooth sur le téléphone.

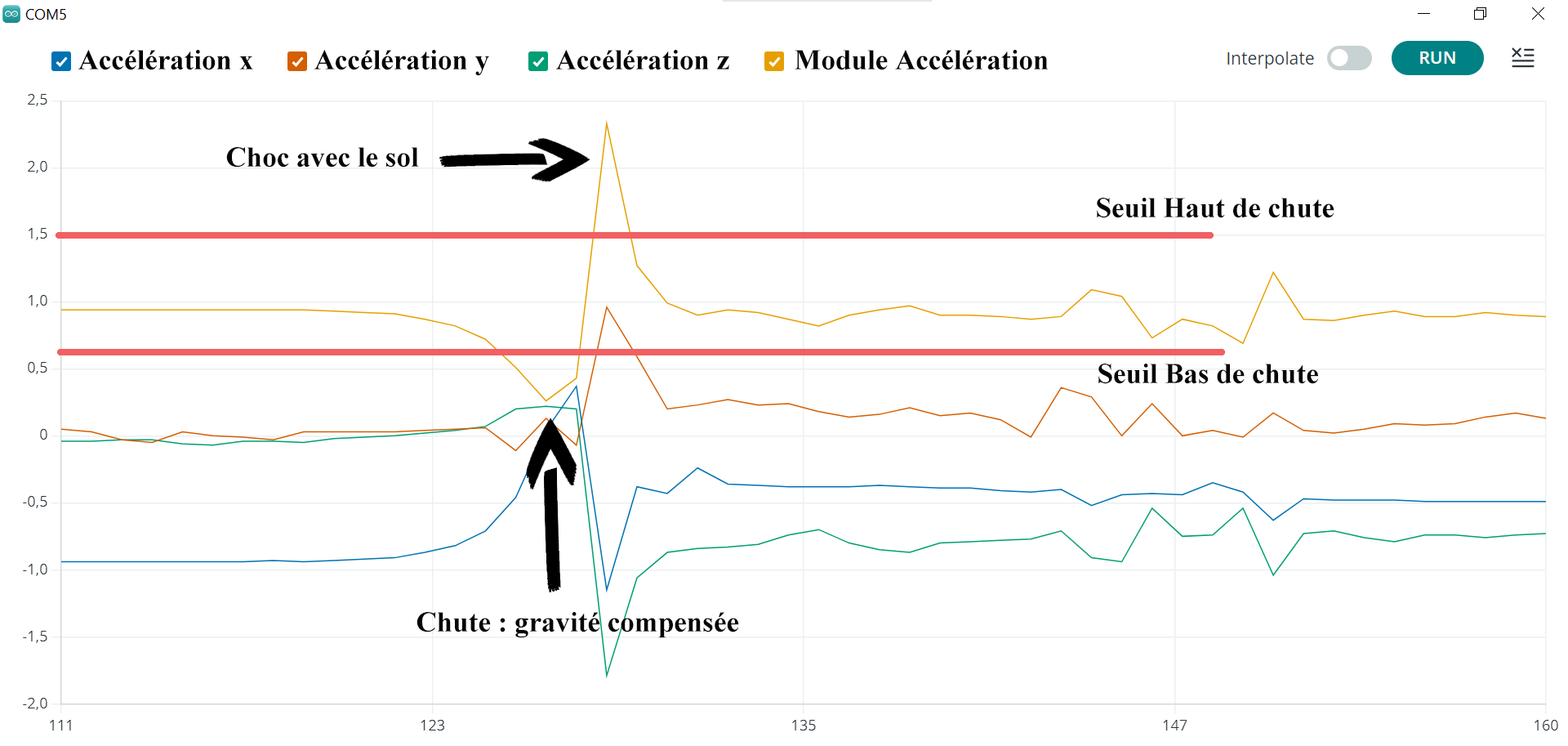

Projet ee410, from the project README
From the project README

Main components on the Projet ee410

ADXL359Arduino_Nano_v3.x

Projet ee410 bill of materials (BOM)

16 components, 10 distinct parts.

QtyPartRefs
1
ADXL359
U1
1
Arduino_Nano_v3.x
A1
1
POWER
J1
1
BLUETOOTH
J2
1
BUZZER
J3
1
SW_Push
SW1
1
SW_DPDT_x2
SW2
4
0.1u
C1, C3, C6, C8
4
1u
C2, C4, C5, C7
1
R
R1

Projet ee410 design files

The KiCad project lives in the josedsneto/projet-ee410 repository on GitHub; these links point at the commit this page was built from.

Projet ee410: common questions

What microcontroller does the Projet ee410 use?

The Projet ee410 is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the Projet ee410 PCB?

The Projet ee410 measures 39.8 × 80.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Projet ee410?

16 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Projet ee410 design files?

From the josedsneto/projet-ee410 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Projet ee410 design in my own project?

The repository has no license, so all rights stay with josedsneto. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Projet ee410 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
