Vault35-katana plate

josh-l-wang·vault35-katana·KiCAD/plate kicad files/vault35-katana plate.kicad_pcb

Vault35-katana plate PCB layout, top view — open source STM32 board by josh-l-wang
Simulate this board

About the Vault35-katana plate PCB

Vault35-katana plate is an open source STM32 PCB design by josh-l-wang, published on GitHub under the MIT license. It is a 2-layer board measuring 209.7 × 76.4 mm, with 72 components from 13 distinct parts.

Its main chip is the STM32F072CBT6, from the STM32 family. Other key parts include the XC6206P332MR-REGULATOR_LINEAR. By type, the board carries 40 diodes, 12 LEDs, 10 capacitors, 4 resistors, 2 ICs and 1 connector.

From the project

katana stagger for Vault 35 by Mechvault

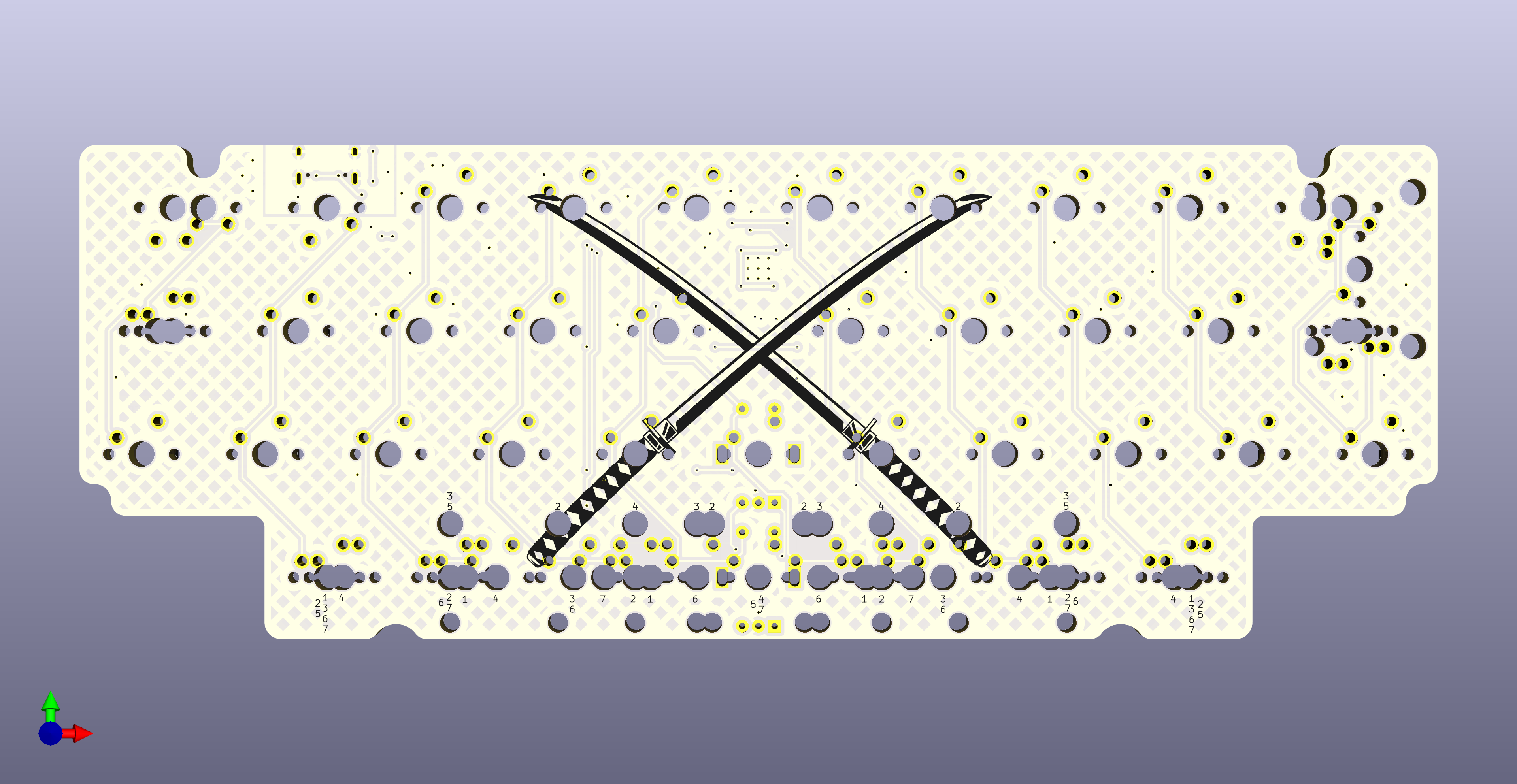

Vault35-katana plate, from the project README
From the project README

Main components on the Vault35-katana plate

STM32F072CBT6XC6206P332MR-REGULATOR_LINEAR

Vault35-katana plate bill of materials (BOM)

72 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32F072CBT6
U1
1
XC6206P332MR-REGULATOR_LINEAR
XC6206P332MR-Regulator_Linear
U2
1
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
J1
1
ASMD1206-150
F1
1
SKQGABE010
SW0
12
SK6812MINI
WS2812-2020
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +4
39
C81598
D_Small
D1, D2, D3, D4, D5, D6, D7, D8 +31
1
PRTR5V0U2X
D99
1
C33600
60R@100MHz
MELED Industrial
L1
7
100NF
100nF
C1, C2, C3, C4, C5, C7, C10
1
10UF
10uF
C6
2
1UF
1uF
C8, C9
4
5.1K
5.1k
R1, R2, R3, R4

Vault35-katana plate design files

The KiCad project lives in the josh-l-wang/vault35-katana repository on GitHub; these links point at the commit this page was built from.

Vault35-katana plate: common questions

What microcontroller does the Vault35-katana plate use?

The Vault35-katana plate is built around the STM32F072CBT6, from the STM32 family.

How big is the Vault35-katana plate PCB?

The Vault35-katana plate measures 209.7 × 76.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Vault35-katana plate?

72 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Vault35-katana plate design files?

From the josh-l-wang/vault35-katana repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Vault35-katana plate design in my own project?

Yes, under the terms of its MIT license, which josh-l-wang chose for the repository.

Can I test firmware for the Vault35-katana plate without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
