Usbuh
About the Usbuh PCB
Usbuh is an open source PCB design by jphwba, published on GitHub. It is a 2-layer board measuring 90 × 55 mm, with 65 components from 24 distinct parts.
Other key parts include the FE1.1s, GL823K, AMS1117-3.3 and PCM2902. By type, the board carries 26 capacitors, 19 resistors, 5 ICs, 5 fuses and 3 crystals.
From the project

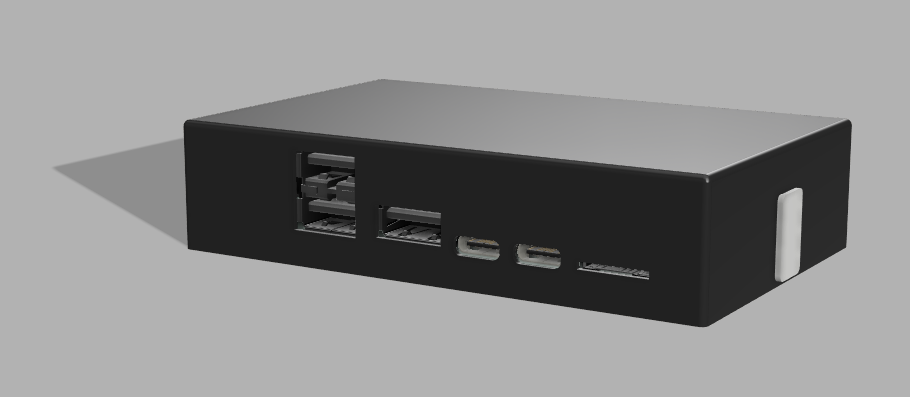

This is a USB Hub that features USB-C input, an Auxilary Port with Audio in and out, three USB-A 2.0 ports, two USB-C 2.0 ports and a micro SD Card slot. The main USB hub controllers are two FE1.1s's, a GL823K for the micro-sd controller, an AMS1117-3.3 to step down 5v connection
This is a USB Hub that features USB-C input, an Auxilary Port with Audio in and out, three USB-A 2.0 ports, two USB-C 2.0 ports and a micro SD Card slot. The main USB hub controllers are two FE1.1s's, a GL823K for the micro-sd controller, an AMS1117-3.3 to step down 5v connections into 3v3 and a PCM2902E for the audio controller. I made this because on my desk the area where my PC is requires the top IO to be blocked which had all of these ports and there was no space to run a cable it was a very tight gap so my current solution is running a $5 temu adapter which goes through a USB-C to USB-A…
Main components on the Usbuh
Usbuh bill of materials (BOM)
65 components, 24 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | FE1.1s | SSOP-28_3.9x9.9mm_P0.635mm | U1, U2 |
| 1 | GL823K ~ | SOP64P600X175-16N | U3 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U4 |
| 1 | PCM2902 | SSOP-28_5.3x10.2mm_P0.65mm | U5 |
| 3 | 12MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1, Y2, Y3 |
| 1 | AudioJack4 | Jack_3.5mm_PJ320D_Horizontal | AUX_1 |
| 5 | 1A | Fuse_1206_3216Metric | F1, F2, F5, F6, F7 |
| 3 | USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | Input1, USB_C_1, USB_C_2 |
| 1 | Micro_SD_Card | microSD_HC_Hirose_DM3AT-SF-PEJM5 | MICRO_SD1 |
| 1 | USB_A | USB_A_Receptacle_GCT_USB1046 | USB_A_1 |
| 1 | USB_A_Stacked | USB_A_Wuerth_61400826021_Horizontal_Stacked | USB_A_STACKED_2&3 |
| 5 | 10uF | C_0805_2012Metric | C1, C2, C8, C9, C13 |
| 5 | 100nF | C_0805_2012Metric | C3, C6, C7, C10, C15 |
| 6 | 22pF | C_0805_2012Metric | C4, C5, C11, C12, C22, C23 |
| 1 | 22uF | C_1206_3216Metric | C14 |
| 6 | 1uF | C_0805_2012Metric | C16, C17, C19, C20, C21, C26 |
| 1 | 2.2uF | C_0805_2012Metric | C18 |
| 2 | 100uF | C_1210_3225Metric | C24, C25 |
| 2 | 5.1k | R_0805_2012Metric | R1, R2 |
| 2 | 2.7k | R_0805_2012Metric | R3, R11 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 8 | 10k | R_0805_2012Metric | R4, R5, R6, R7, R8, R9, R10, R12 |
| 4 | 56k | R_0805_2012Metric | R13, R14, R15, R16 |
| 2 | 22 | R_0805_2012Metric | R17, R18 |
| 1 | 2.2k | R_0805_2012Metric | R19 |
Usbuh design files
The KiCad project lives in the jphwba/usbuh repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/usbuh.kicad_pcb
- SchematicPCB/usbuh.kicad_sch
- BOMbom.csv
Usbuh: common questions
How big is the Usbuh PCB?
The Usbuh measures 90 × 55 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Usbuh?
65 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Usbuh design files?
From the jphwba/usbuh repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Usbuh design in my own project?
The repository has no license, so all rights stay with jphwba. Use it as a reference, and ask the author before reusing the design.
