AnalogDiscovery x20 powerMainsProbe PCB layout, top view — open source board by jubeormk1

About the AnalogDiscovery x20 powerMainsProbe PCB

AnalogDiscovery x20 powerMainsProbe is an open source PCB design by jubeormk1, published on GitHub under the MIT license. It is a 2-layer board measuring 64 × 64 mm, with 22 components from 12 distinct parts.

By type, the board carries 6 connectors, 6 capacitors and 6 resistors.

It belongs with the test & measurement designs in this gallery.

From the project

Extension board for the Digilent Analog Discovery Instrument to measure mains outlet with a x20 attenuation

This is the first version of the instruments. Please review and make constructive comments about the design. Use under your own risk for evaluation purposes only. After my internal validation the an "Stable version will be release." After I get this right more board to improve the versatility of the great AnalogDiscovery board by Agilent will be release.

This is a design initially created to look a the shape of mains outlets. I design it to check the total harmonic distortion of a generator outlet with a x20 reduction.

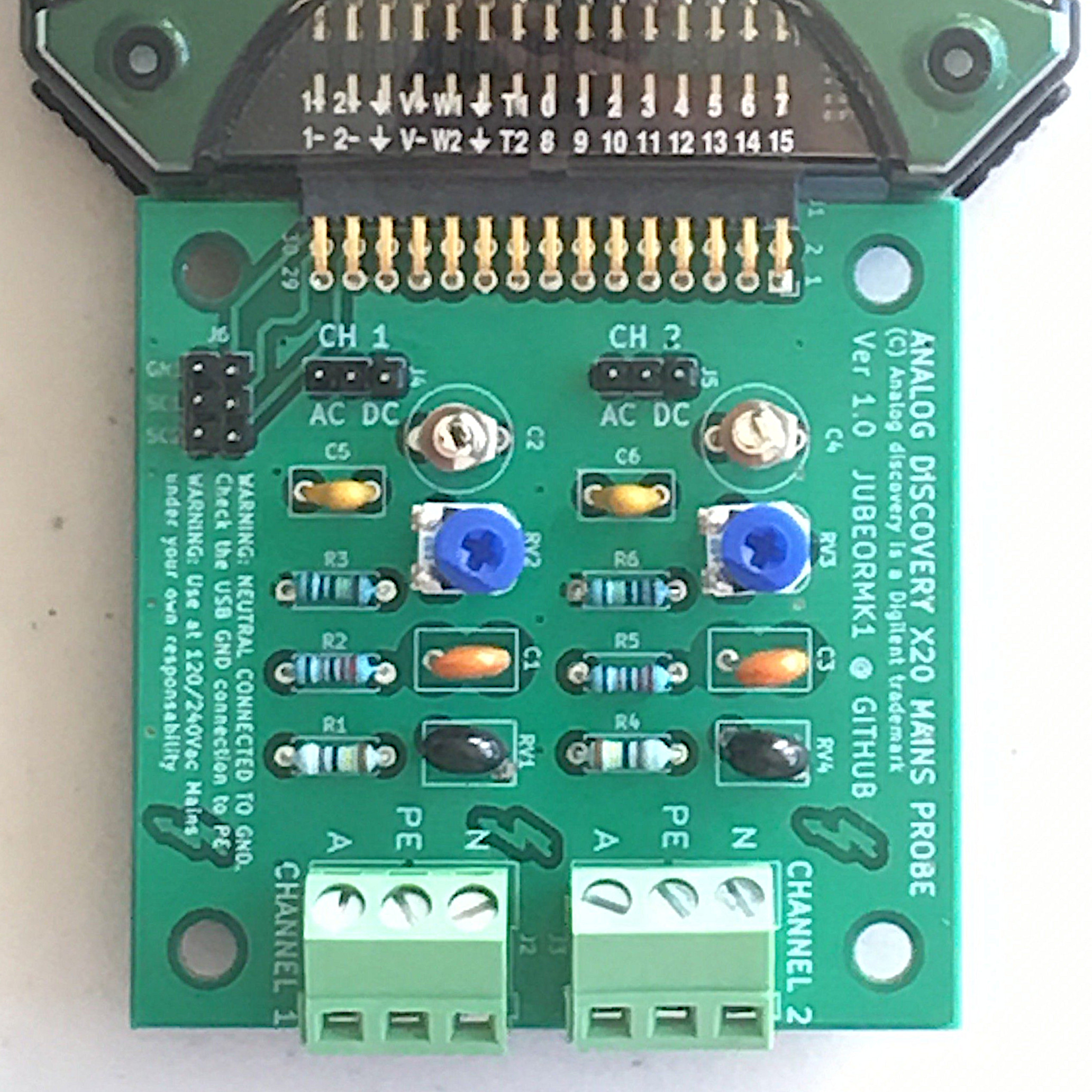

AnalogDiscovery x20 powerMainsProbe, from the project README
From the project README

AnalogDiscovery x20 powerMainsProbe bill of materials (BOM)

22 components, 12 distinct parts.

QtyPartRefs
1
Conn_02x15_Counter_Clockwise
J1
2
Conn_01x03_Female
J2, J3
2
Conn_01x03_Male
J4, J5
1
Conn_02x03_Counter_Clockwise
J6
2
270VAC Breakdown 720V
RV1, RV4
2
500k
RV2, RV3
2
5p6
C1, C3
2
9-70p
C2, C4
2
0.1uF
C5, C6
2
9M1
R1, R4
2
220k
R2, R5
2
1M
R3, R6

AnalogDiscovery x20 powerMainsProbe design files

The KiCad project lives in the jubeormk1/AnalogDiscovery_x20_powerMainsProbe repository on GitHub; these links point at the commit this page was built from.

AnalogDiscovery x20 powerMainsProbe: common questions

How big is the AnalogDiscovery x20 powerMainsProbe PCB?

The AnalogDiscovery x20 powerMainsProbe measures 64 × 64 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AnalogDiscovery x20 powerMainsProbe?

22 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the AnalogDiscovery x20 powerMainsProbe design files?

From the jubeormk1/AnalogDiscovery_x20_powerMainsProbe repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the AnalogDiscovery x20 powerMainsProbe design in my own project?

Yes, under the terms of its MIT license, which jubeormk1 chose for the repository.
