Trellis
About the Trellis PCB
Trellis is an open source PCB design by jvegaf, published on GitHub. It is a 2-layer board measuring 60 × 60 mm, with 37 components from 13 distinct parts.
Other key parts include the HT16K33 28SOP. By type, the board carries 12 diodes, 5 capacitors, 5 resistors, 4 jumpers, 4 test points and 3 modules.
From the project

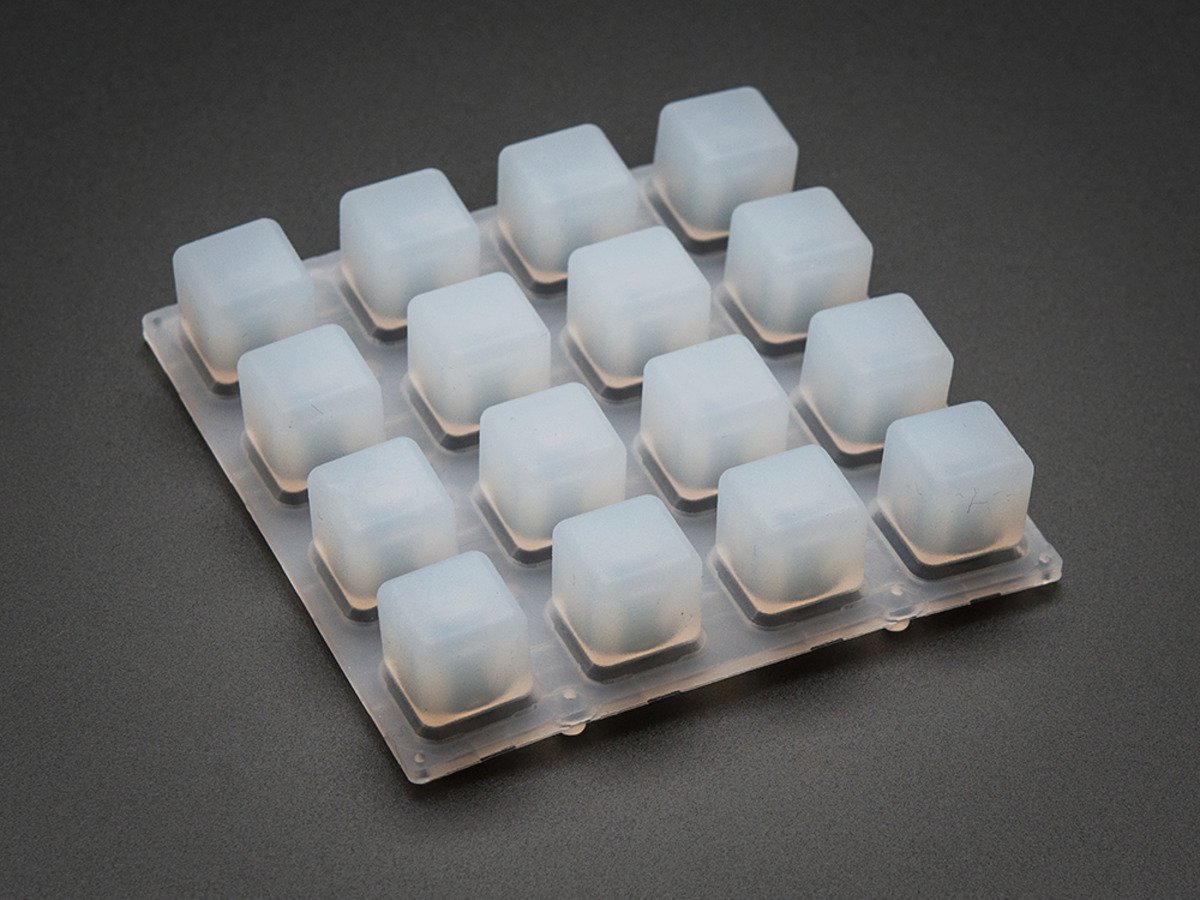

Silicone Elastomer 4x4 Button Keypad - for 3mm LEDs Small 1.2" 8x8 Ultra Bright White LED Matrix + Backpack
Silicone Elastomer 4x4 Button Keypad - for 3mm LEDs Small 1.2" 8x8 Ultra Bright White LED Matrix + Backpack
So squishy! These silicone elastomer keypads are just waiting for your fingers to press them. Go ahead, squish all you like! (They're durable and easy to clean, just wipe with mild soap and water) These are just like the light up rubber buttons you find on stuff like appliances and tools, but these are open source and easy to integrate into your next project.
Main components on the Trellis
Trellis bill of materials (BOM)
37 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | HT16K33 28SOP | SOP28_300MIL | U1 |
| 1 | — | ADAFRUIT_TEXT_20MM | U$3 |
| 3 | — | SOLDERJUMPER_REFLOW_NOPASTE | A0, A1, A2 |
| 4 | — | 1X5_SMT | JP1, JP2, JP3, JP4 |
| 1 | — | ELAST_PAD_SQUARE_10MM_5.4MM_4X4GRID | SW1 |
| 4 | — | TESTPOINT_SMT | TP1, TP2, TP3, TP4 |
| 1 | TBD | LED3MM-4X4GRID | LED1 |
| 11 | 1N4148 | SOD-323 | D1, D2, D5, D6, D7, D8, D9, D10 +3 |
| 1 | 1N4148 | SOD-323F | D4 |
| 4 | — | _0805 | C1, C2, C3, C4 |
| 1 | 10uF | _0805 | C5 |
| 2 | 10K | _0805 | R1, R2 |
| 3 | 47K | R0805 | R3, R4, R5 |
Trellis design files
The KiCad project lives in the jvegaf/R3M1XXX repository on GitHub; these links point at the commit this page was built from.
Trellis: common questions
How big is the Trellis PCB?
The Trellis measures 60 × 60 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Trellis?
37 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Trellis design files?
From the jvegaf/R3M1XXX repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Trellis design in my own project?
The repository has no license, so all rights stay with jvegaf. Use it as a reference, and ask the author before reusing the design.
