Openkey cps2 PCB layout, top view — open source AVR/Arduino board by jwestfall69
Simulate this board

About the Openkey cps2 PCB

Openkey cps2 is an open source AVR/Arduino PCB design by jwestfall69, published on GitHub under the Unlicense license. It is a 2-layer board measuring 27.5 × 28.3 mm, with 2 components from 2 distinct parts.

Its main chip is the ATtinyxx4, from the AVR/Arduino family. By type, the board carries 1 IC and 1 capacitor.

It belongs with the usb & debug tools designs in this gallery.

From the project

CPS2 Programmer

Overview Project Status Supported Games Hardware PCB Manufacturing BOM Assembly Programming Hardware Software Testing Installation 93646B-3 93646B-4 93646B-5 93646B-6 93646B-7 97691A-3 (all in one) * 97691A-4 (all in one)

NOTE: There is a typo on the silkscreen on hardware revision 2022-12-17. The bypass cap is listed as being 100uf, when it should be 100nf. This typo was fixed in hardware revision 2023-01-03, however the pictures below are all from the typo'd 2022-12-17 revision.

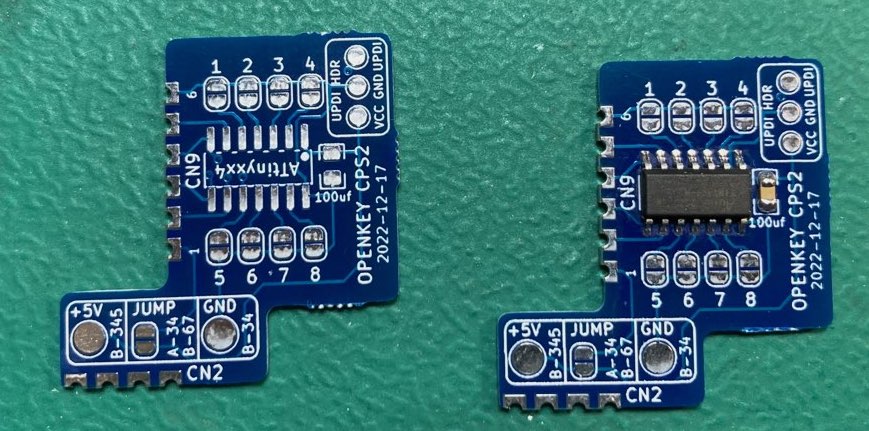

Openkey cps2, from the project README
From the project README

Main components on the Openkey cps2

ATtinyxx4

Openkey cps2 bill of materials (BOM)

2 components, 2 distinct parts.

QtyPartRefs
1
ATtinyxx4
U1
1
100nf
C1

Openkey cps2 design files

The KiCad project lives in the jwestfall69/openkey-cps2 repository on GitHub; these links point at the commit this page was built from.

Openkey cps2: common questions

What microcontroller does the Openkey cps2 use?

The Openkey cps2 is built around the ATtinyxx4, from the AVR/Arduino family.

How big is the Openkey cps2 PCB?

The Openkey cps2 measures 27.5 × 28.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Openkey cps2?

2 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Openkey cps2 design files?

From the jwestfall69/openkey-cps2 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Openkey cps2 design in my own project?

Yes, under the terms of its Unlicense license, which jwestfall69 chose for the repository.

Can I test firmware for the Openkey cps2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
