VehicleControlSystem PCB layout, top view — open source STM32 board by KarlVaello

About the VehicleControlSystem PCB

VehicleControlSystem is an open source STM32 PCB design by KarlVaello, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 85 × 60 mm, with 66 components from 30 distinct parts.

Its main chip is the STM32F103C8, from the STM32 family. Other key parts include the LM1117-5.0, LM1117-3.3 and MAX485E. By type, the board carries 22 resistors, 17 connectors, 11 capacitors, 5 ICs, 4 diodes and 2 crystals.

From the project

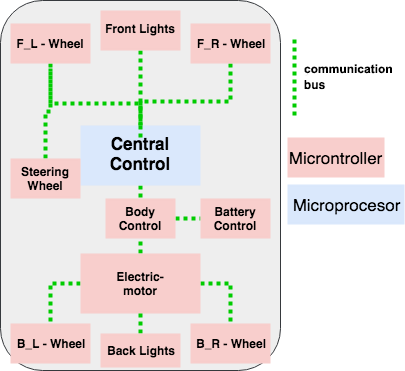

Vehicle Control System. Using C++ Qt and C. Hardware and Software

UNITS: - CCU Central Control Unit - CCU Cluster Control Unit - CCU Central Control Unit - EmCU Electric-motor Control Unit - BCU Battery Control Unit

MODULES: - CcCM Central-console Control Module - SteeringWheel Control Module - BCM Body Control Module - BlCM Back-lights Control Module - FlCM Front-lights Control Module

See the WIKI for full documentation, examples, operational details and other information.

VehicleControlSystem, from the project README
From the project README

Main components on the VehicleControlSystem

STM32F103C8LM1117-5.0LM1117-3.3MAX485E

VehicleControlSystem bill of materials (BOM)

66 components, 30 distinct parts.

QtyPartRefs
1
STM32F103C8
U1
1
LM1117-5.0
U2
1
LM1117-3.3
U3
2
MAX485E
U4, U5
1
8 MHz
Y1
1
32.768 KHz
Y2
1
Conn_01x04
J1
5
Conn_01x02_Male
J2, J9, J10, J12, J13
1
Conn_01x04
J3
1
Conn_02x03_Odd_Even
J4
1
Conn_01x15_Male
J5
1
proto_grid_15x21
J6
2
Conn_02x02_Top_Bottom
J7, J8
3
Conn_01x01
J14, J15, J16
1
Conn_01x02_Top_Bottom
J17
1
Conn_02x02_Top_Bottom
J18
2
10uF
CP1, CP3
2
22uF
CP2, CP4
1
SW_Push
SW1
4
LED
D1, D2, D3, D4
Show 10 more
QtyPartRefs
4
100nF
C1, C3, C4, C5
1
1.0uF
C2
4
20pF
C6, C7, C8, C9
2
100nF
C10, C11
9
10K
R1, R7, R8, R9, R10, R11, R12, R13 +1
1
1M
R2
4
510R
R3, R4, R21, R22
2
100K
R5, R6
4
20K
R15, R16, R17, R18
2
120R
R19, R20

VehicleControlSystem design files

The KiCad project lives in the KarlVaello/VehicleControlSystem repository on GitHub; these links point at the commit this page was built from.

VehicleControlSystem: common questions

What microcontroller does the VehicleControlSystem use?

The VehicleControlSystem is built around the STM32F103C8, from the STM32 family.

How big is the VehicleControlSystem PCB?

The VehicleControlSystem measures 85 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the VehicleControlSystem?

66 components, from 30 distinct parts. The full bill of materials is listed on this page.

Where can I download the VehicleControlSystem design files?

From the KarlVaello/VehicleControlSystem repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the VehicleControlSystem design in my own project?

Yes, under the terms of its GPL-3.0 license, which KarlVaello chose for the repository.

Can I test firmware for the VehicleControlSystem without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
