HV-BOARD
About the HV-BOARD
HV-BOARD is an open source PCB design by kelu124, published on GitHub under the TAPR-OHL-1.0 license. It is a 2-layer board measuring 20.8 × 22.3 mm, with 8 components from 6 distinct parts.
By type, the board carries 4 capacitors, 2 connectors and 1 inductor.

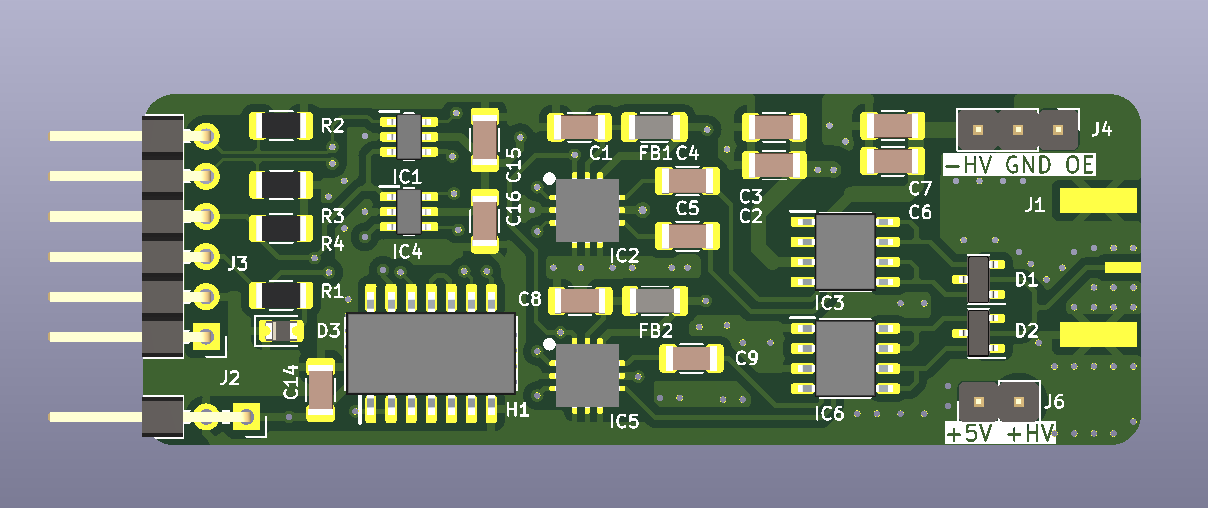

From the project
Modules for signal acquisition and transmission - using the PMOD standard
Tested with rp2040 controlling pulser (in the firmware folder)
RPI power: baseline: ~10mA (to be deducted from current below) Full power with rp2040, 200us period, 24V: 70/80mA loaded Full power with rp2040, 200us period, 24V: 30/60mA unloaded rp2040, 200us period, driving 5V pulses: 40/50mA loaded
HV-BOARD bill of materials (BOM)
8 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CONN_02X08_ODD_EVEN Conn_01x03_Socket | PinSocket_1x03_P2.54mm_Vertical | J5 |
| 1 | 22-23-2021 Conn_01x02_Socket | PinSocket_1x02_P2.54mm_Vertical | J7 |
| 1 | IAS0105D24 | IAS0105D24 | B1 |
| 1 | ILSB1206ER6R8K 6.8uH | L_1206_3216Metric | L1 |
| 2 | 4.7uF | C_1206_3216Metric | C10, C11 |
| 2 | 1uF | C_1206_3216Metric | C12, C13 |
HV-BOARD design files
The KiCad project lives in the kelu124/PMOD_rp2040 repository on GitHub; these links point at the commit this page was built from.
HV-BOARD: common questions
How big is the HV-BOARD?
The HV-BOARD measures 20.8 × 22.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the HV-BOARD?
8 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the HV-BOARD design files?
From the kelu124/PMOD_rp2040 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the HV-BOARD design in my own project?
Yes, under the terms of its TAPR-OHL-1.0 license, which kelu124 chose for the repository.
