Empty

KOEGlike·hackxpansion·hardware/modules/empty/pcb/empty.kicad_pcb

Empty PCB layout, top view — open source board by KOEGlike
Simulate this board

About the Empty PCB

Empty is an open source PCB design by KOEGlike, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 25.5 × 32 mm, with 3 components from 2 distinct parts.

By type, the board carries 2 resistors and 1 connector.

It belongs with the displays & leds designs in this gallery.

From the project

A modular game console based on RP2454

- Resistor based module idnetification at start up - 2" 240x320 ST7789 LCD panel - RP2354 MCU - Easily adaptable module standard - Rust firmware with embassy and slint-ui

I really like the idea of modules, and modular things, and making people work together, so I made this.

The console has two 4 layer PCBs designed in KiCAD, a main-board and a daughter-board, designed for JLC's basic process.

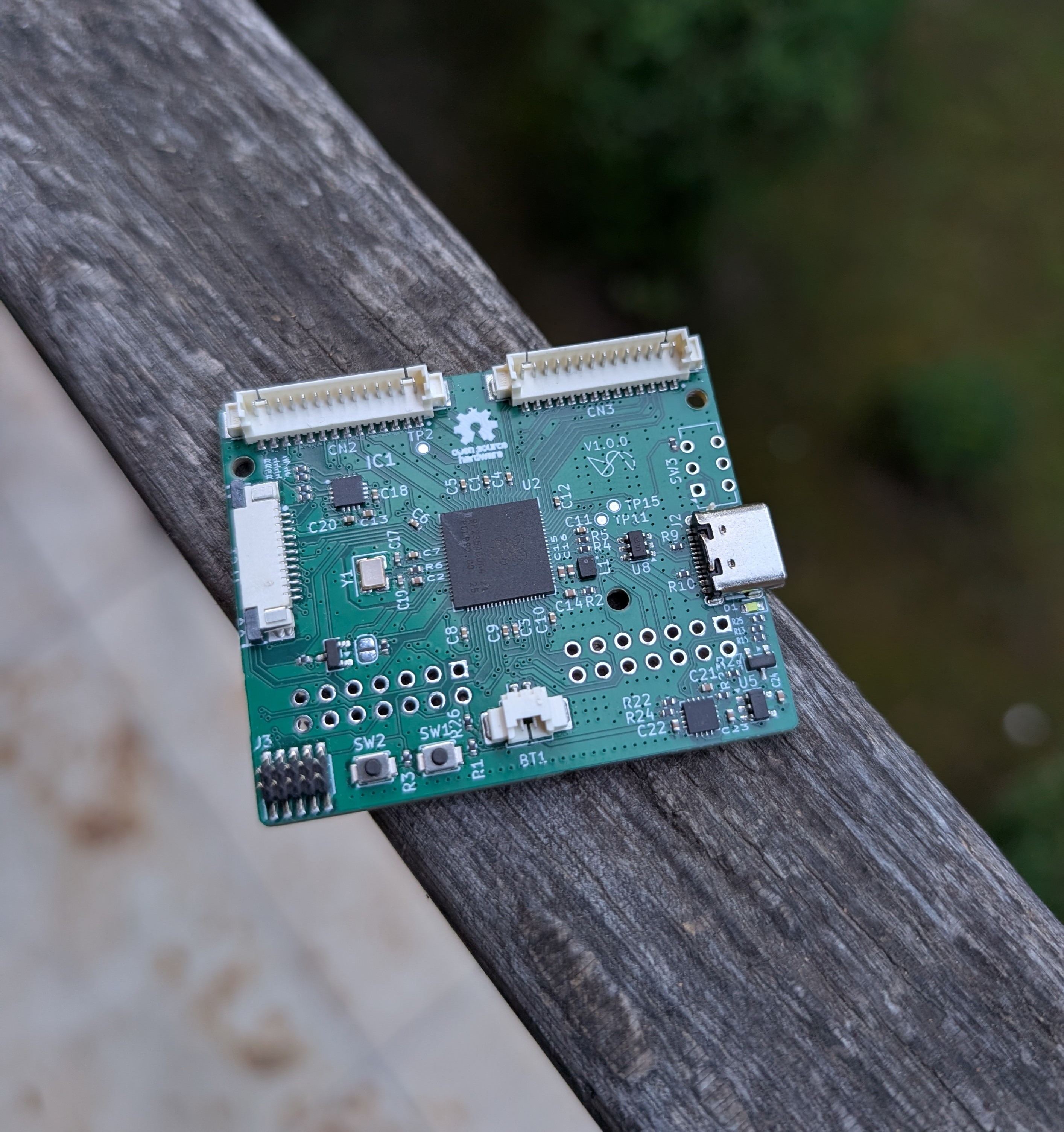

Empty, from the project README
From the project README

Empty bill of materials (BOM)

3 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
~
J1
2
R
R1, R2

Empty design files

The KiCad project lives in the KOEGlike/hackxpansion repository on GitHub; these links point at the commit this page was built from.

Empty: common questions

How big is the Empty PCB?

The Empty measures 25.5 × 32 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Empty?

3 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Empty design files?

From the KOEGlike/hackxpansion repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Empty design in my own project?

Yes, under the terms of its GPL-3.0 license, which KOEGlike chose for the repository.
