Esc-1s frame PCB layout, top view — open source Silicon Labs board by kokjo

About the Esc-1s frame PCB

Esc-1s frame is an open source Silicon Labs PCB design by kokjo, published on GitHub. It is a 4-layer board measuring 99.6 × 99.6 mm, with 95 components from 16 distinct parts.

Its main chip is the EFM8BB51F2G-A-QFN20, from the Silicon Labs family. Other key parts include the XR30G30D and SPX3819M5-L-3-3. By type, the board carries 49 resistors, 23 capacitors, 17 ICs and 6 connectors.

From the project

FPV Drone ESC, With PCB as FRAME ================================

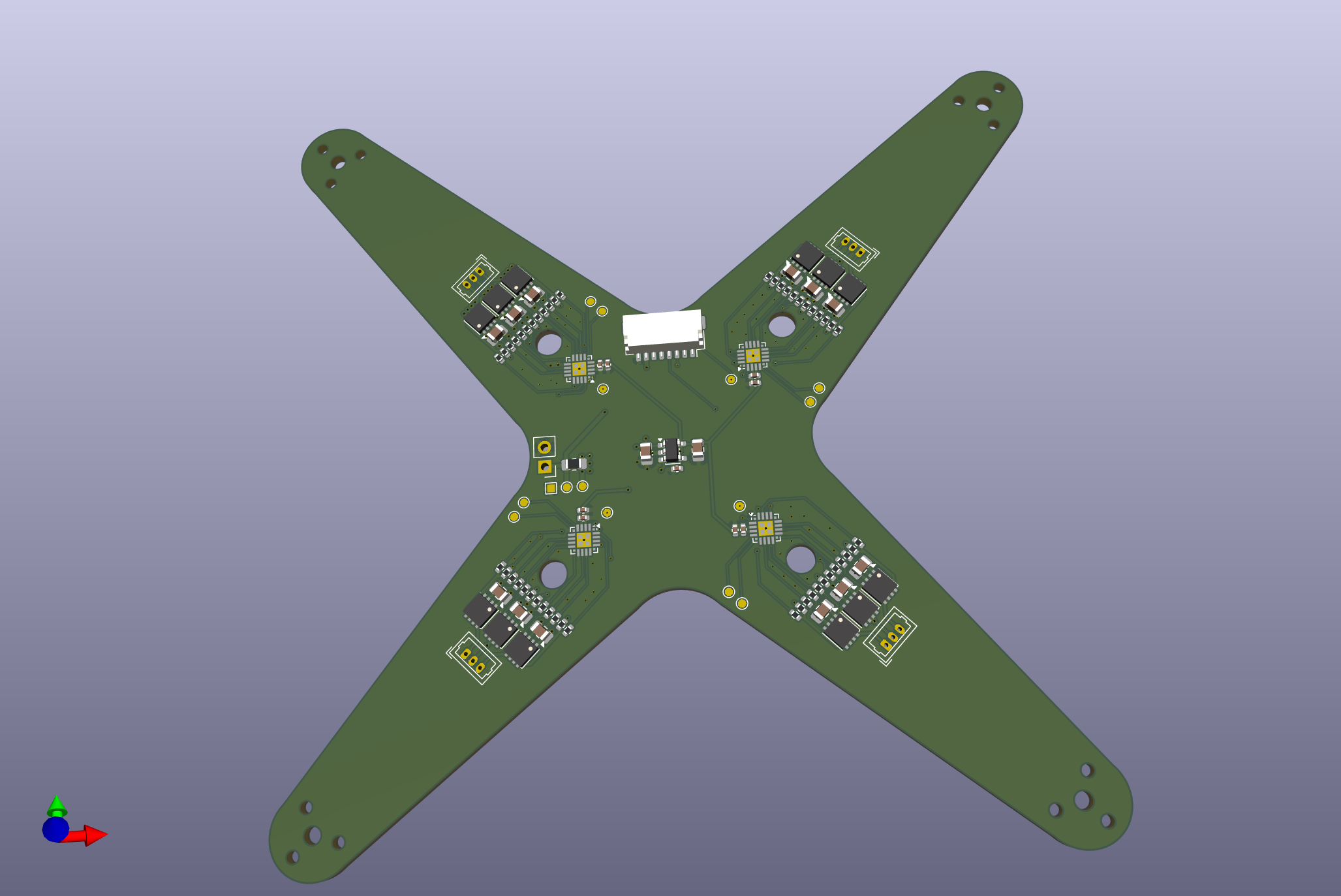

Esc-1s frame, from the project README
From the project README

Main components on the Esc-1s frame

EFM8BB51F2G-A-QFN20XR30G30DSPX3819M5-L-3-3

Esc-1s frame bill of materials (BOM)

95 components, 16 distinct parts.

QtyPartRefs
4
EFM8BB51F2G-A-QFN20
U1, U9, U13, U17
12
XR30G30D
U2, U3, U4, U5, U7, U8, U10, U11 +4
1
SPX3819M5-L-3-3
U6
1
Bat
J1
1
Ctrl
J2
1
M4
J3
1
M1
J4
1
M2
J5
1
M3
J6
5
100nF
C1, C8, C13, C18, C23
4
1uF
C2, C12, C17, C22
14
10uF
C3, C4, C5, C6, C7, C9, C10, C11 +6
1
1m
R1
12
100k
R2, R6, R10, R14, R18, R22, R26, R30 +4
12
10k
R3, R9, R13, R17, R21, R25, R29, R33 +4
24
33R
R4, R5, R7, R8, R11, R12, R15, R16 +16

Esc-1s frame design files

The KiCad project lives in the kokjo/esc-1s-frame repository on GitHub; these links point at the commit this page was built from.

Esc-1s frame: common questions

What microcontroller does the Esc-1s frame use?

The Esc-1s frame is built around the EFM8BB51F2G-A-QFN20, from the Silicon Labs family.

How big is the Esc-1s frame PCB?

The Esc-1s frame measures 99.6 × 99.6 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Esc-1s frame?

95 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the Esc-1s frame design files?

From the kokjo/esc-1s-frame repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Esc-1s frame design in my own project?

The repository has no license, so all rights stay with kokjo. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Esc-1s frame without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Silicon Labs firmware against it before you order a PCB.
