Ble soil moisture sensor pannel

Miceuz·ble-soil-moisture-sensor

Ble soil moisture sensor pannel PCB layout, top view — open source Silicon Labs board by Miceuz
Simulate this board

About the Ble soil moisture sensor pannel PCB

Ble soil moisture sensor pannel is an open source Silicon Labs PCB design by Miceuz, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 170 × 36 mm, with 29 components from 14 distinct parts.

Its main chip is the BGM111, from the Silicon Labs family. Other key parts include the TPS78225. By type, the board carries 13 resistors, 5 capacitors, 3 transistors, 3 diodes, 2 ICs and 1 connector.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

Bluetooth Low Energy - based soil moisture sensor

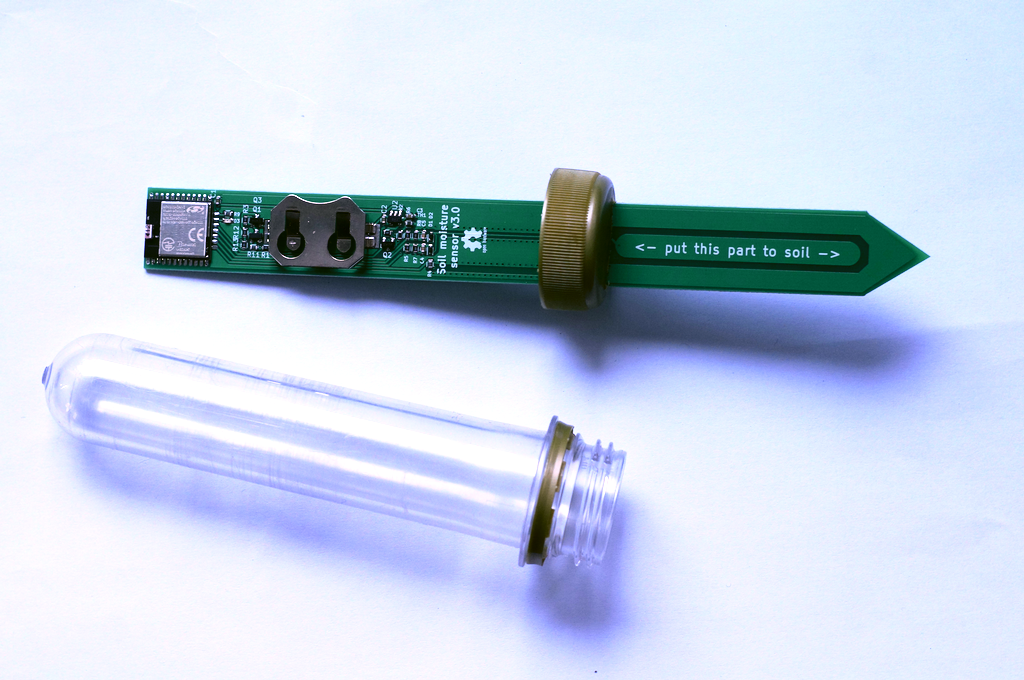

Ble soil moisture sensor pannel, from the project README
From the project README

Main components on the Ble soil moisture sensor pannel

BGM111TPS78225

Ble soil moisture sensor pannel bill of materials (BOM)

29 components, 14 distinct parts.

QtyPartRefs
1
BGM111
U1
1
TPS78225
U2
1
Q_NMOS_GSD
Q1
2
Q_PMOS_GSD
Q2, Q3
1
CONN_02X03
P1
1
Battery
BT1
1
NCP18XH103F03RB
TH1
2
BAT54
D1, D2
1
LED
D3
3
1u
C1, C2, C3
2
1n
C4, C5
9
1M
R1, R3, R5, R6, R7, R8, R10, R12 +1
1
10k 0.1%
R2
3
330
R4, R9, R11

Ble soil moisture sensor pannel design files

The KiCad project lives in the Miceuz/ble-soil-moisture-sensor repository on GitHub; these links point at the commit this page was built from.

Ble soil moisture sensor pannel: common questions

What microcontroller does the Ble soil moisture sensor pannel use?

The Ble soil moisture sensor pannel is built around the BGM111, from the Silicon Labs family.

How big is the Ble soil moisture sensor pannel PCB?

The Ble soil moisture sensor pannel measures 170 × 36 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ble soil moisture sensor pannel?

29 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the Ble soil moisture sensor pannel design files?

From the Miceuz/ble-soil-moisture-sensor repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Ble soil moisture sensor pannel design in my own project?

Yes, under the terms of its Apache-2.0 license, which Miceuz chose for the repository.

Can I test firmware for the Ble soil moisture sensor pannel without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Silicon Labs firmware against it before you order a PCB.
