IMUModule STM32

Kotakku·IMUModule_STM32_PCB

IMUModule STM32 PCB layout, top view — open source STM32 board by Kotakku
Simulate this board

About the IMUModule STM32 PCB

IMUModule STM32 is an open source STM32 PCB design by Kotakku, published on GitHub. It is a 4-layer board measuring 25.4 × 53.3 mm, with 84 components from 12 distinct parts.

Its main chip is the STM32G473RCTX, from the STM32 family. Other key parts include the LSM6DSR and ME6119A33PG. By type, the board carries 43 capacitors, 34 ICs, 3 resistors, 2 diodes, 1 crystal and 1 connector.

From the project

KiCad project to reproduce the contents of the following paper

KiCad project to reproduce the contents of the following paper

H. Kamata, M. Kimishima, T. Sawada, Y. Suga, H. Takeda, K. Yamashita, and S. Mitani, MEMS Gyro Array Employing Array Signal Processing for Interference and Outlier Suppression, IEEE Inertial 2020, Hiroshima, Japan

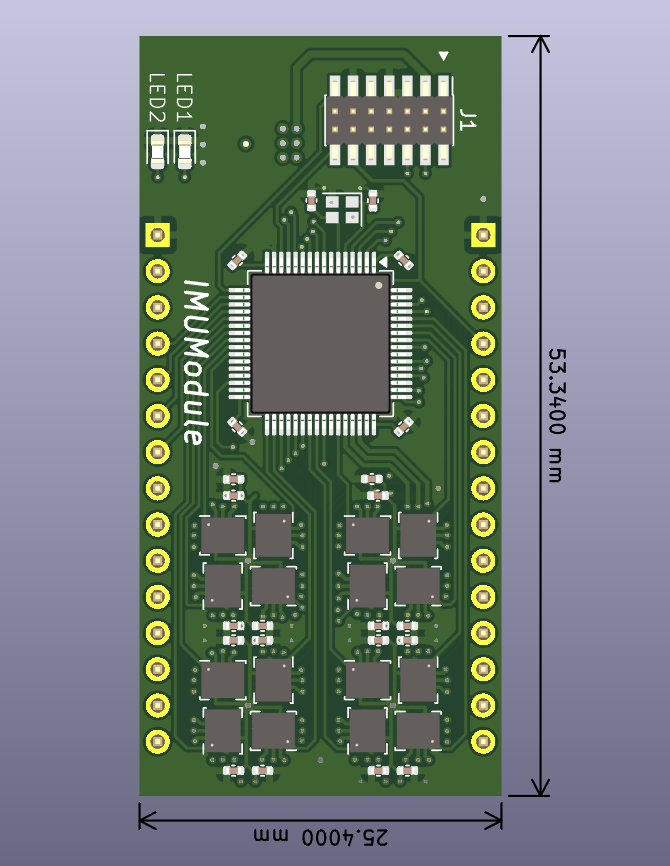

IMUModule STM32, from the project README
From the project README

Main components on the IMUModule STM32

LSM6DSRSTM32G473RCTXME6119A33PG

IMUModule STM32 bill of materials (BOM)

84 components, 12 distinct parts — part numbers from the project's BOM.

QtyPartRefs
32
LSM6DSR
U1, U2, U3, U4, U5, U6, U7, U8 +24
1
STM32G473RCTX
STM32G473RCTx
U33
1
ME6119A33PG
U34
1
24MHZ
24MHz
Y1
1
CONN_02X07_ODD_EVEN
Conn_02x07_Odd_Even
J1
2
C2286
LED_Small
D2, D3
2
6PF
6pF
C1, C2
39
0.1UF
0.1uF
C7, C8, C9, C10, C11, C13, C14, C15 +31
1
4.7UF
4.7uF
C16
1
100UF
100uF
C32
1
10K
10k
R1
2
3.3K
R9, R10

IMUModule STM32 design files

The KiCad project lives in the Kotakku/IMUModule_STM32_PCB repository on GitHub; these links point at the commit this page was built from.

IMUModule STM32: common questions

What microcontroller does the IMUModule STM32 use?

The IMUModule STM32 is built around the STM32G473RCTX, from the STM32 family.

How big is the IMUModule STM32 PCB?

The IMUModule STM32 measures 25.4 × 53.3 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the IMUModule STM32?

84 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the IMUModule STM32 design files?

From the Kotakku/IMUModule_STM32_PCB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the IMUModule STM32 design in my own project?

The repository has no license, so all rights stay with Kotakku. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the IMUModule STM32 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
