Attiny oil lamp

ktauchathuranga·attiny-oil-lamp

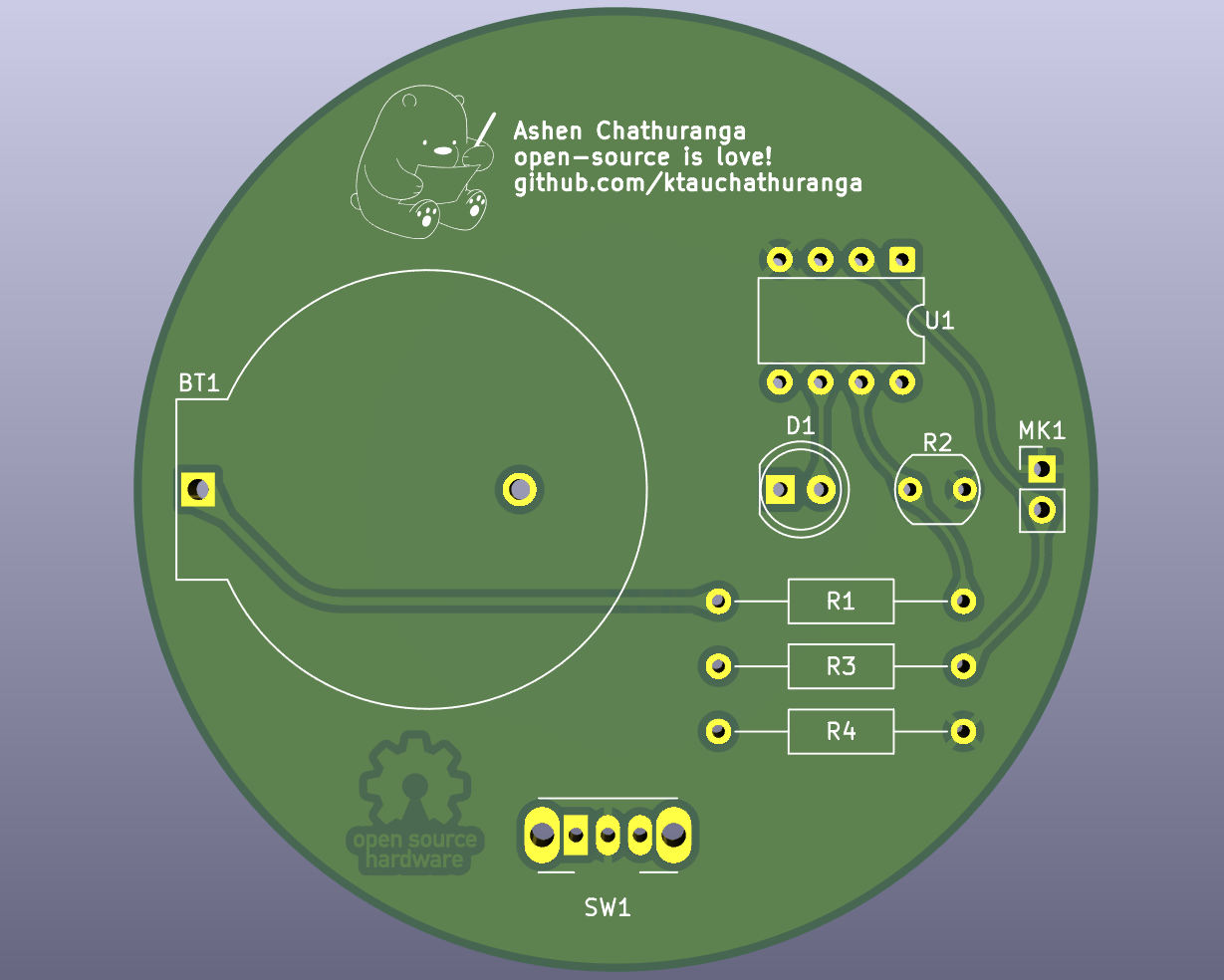

Attiny oil lamp PCB layout, top view — open source AVR/Arduino board by ktauchathuranga

About the Attiny oil lamp PCB

Attiny oil lamp is an open source AVR/Arduino PCB design by ktauchathuranga, published on GitHub. It is a 2-layer board measuring 60 × 60 mm, with 9 components from 9 distinct parts.

Its main chip is the ATtiny85V-10P, from the AVR/Arduino family. By type, the board carries 4 resistors, 1 IC, 1 battery holder, 1 microphone, 1 switch and 1 diode.

From the project

PCB desigined using KiCad | ATtiny based oil lamp

This repository contains the PCB design for an ATtiny-based version of a traditional oil lamp, created using KiCad.

The project aims to replicate the aesthetics and behavior of a traditional oil lamp using modern electronics. The design is compact and easy to assemble.

- KiCad project files - Gerber files for PCB manufacturing - Schematic diagrams - Bill of materials (BOM)

Attiny oil lamp, from the project README
From the project README

Main components on the Attiny oil lamp

ATtiny85V-10P

Attiny oil lamp bill of materials (BOM)

9 components, 9 distinct parts.

QtyPartRefs
1
ATtiny85V-10P
U1
1
3.3V Cell
BT1
1
Microphone_Condenser
MK1
1
Slide Switch
SW1
1
5mm Yellow LED
D1
1
10k
R1
1
5mm LDR
R2
1
5.6k
R3
1
470R
R4

Attiny oil lamp design files

The KiCad project lives in the ktauchathuranga/attiny-oil-lamp repository on GitHub; these links point at the commit this page was built from.

Attiny oil lamp: common questions

What microcontroller does the Attiny oil lamp use?

The Attiny oil lamp is built around the ATtiny85V-10P, from the AVR/Arduino family.

How big is the Attiny oil lamp PCB?

The Attiny oil lamp measures 60 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Attiny oil lamp?

9 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Attiny oil lamp design files?

From the ktauchathuranga/attiny-oil-lamp repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Attiny oil lamp design in my own project?

The repository has no license, so all rights stay with ktauchathuranga. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Attiny oil lamp without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
