The japanese connection
About the The japanese connection PCB
The japanese connection is an open source PCB design by Kyrremann, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 82 × 52 mm, with 5 components from 3 distinct parts.
Other key parts include the ProMicro. By type, the board carries 2 connectors and 1 IC.
From the project

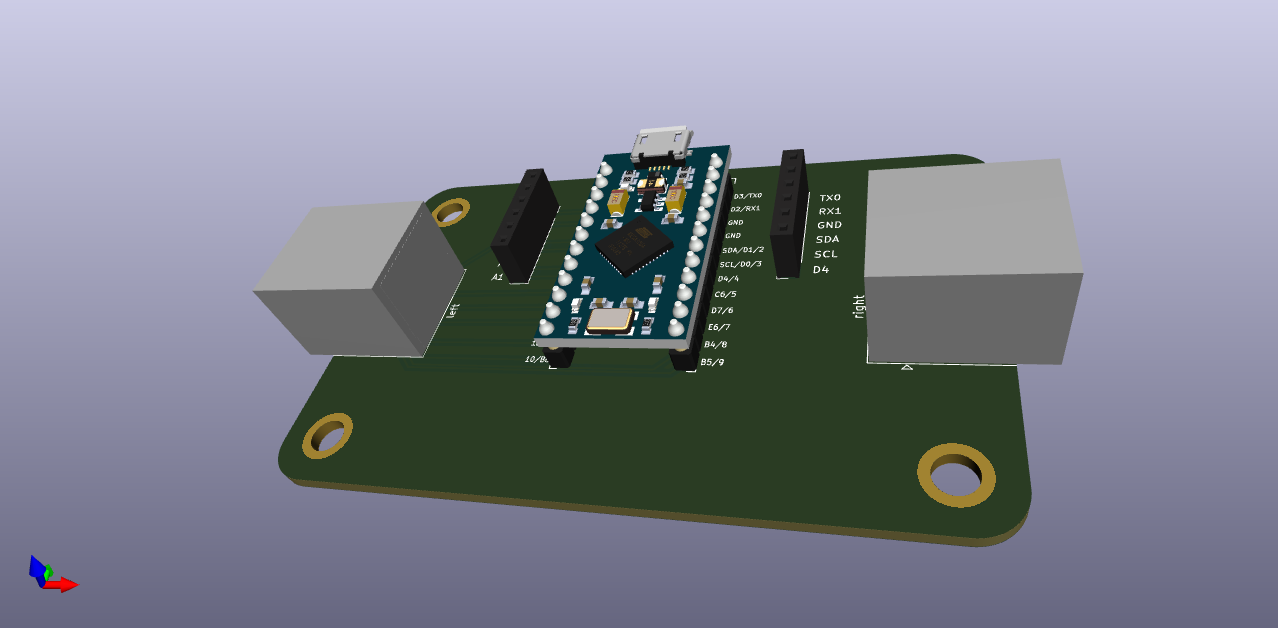

With the Japanese duplex matrix you can use less pins for more switches!
With the Japanese duplex matrix you can use less pins for more switches! So with that in mind we made a hub that let you make split keyboards with no microcontroller, just good old RJ45 and ethernet cables!
Rember to run git submodule update when the foostan/kbd submodule has been updated.
Main components on the The japanese connection
The japanese connection bill of materials (BOM)
5 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro | ProMicro_v3.5 | U1 |
| 2 | Conn_01x06 | PinSocket_1x06_P2.54mm_Vertical | J1, J5 |
| 2 | RJ45 | RJ45_Amphenol_54602-x08_Horizontal | left1, right1 |
The japanese connection design files
The KiCad project lives in the Kyrremann/the-japanese-connection repository on GitHub; these links point at the commit this page was built from.
- Layoutjapanese-connection.kicad_pcb
- Schematicjapanese-connection.kicad_sch
The japanese connection: common questions
How big is the The japanese connection PCB?
The The japanese connection measures 82 × 52 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the The japanese connection?
5 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the The japanese connection design files?
From the Kyrremann/the-japanese-connection repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the The japanese connection design in my own project?
Yes, under the terms of its GPL-3.0 license, which Kyrremann chose for the repository.
