BLETracker
About the BLETracker PCB
BLETracker is an open source PCB design by Lancelotmay, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 37.1 × 25.9 mm, with 30 components from 14 distinct parts.
By type, the board carries 11 resistors, 5 capacitors, 4 ICs, 3 LEDs, 1 transistor and 1 switch.
It belongs with the rf & radio and iot & wireless designs in this gallery.
From the project
GNSS tracker using bluetooth LNS to connect to Phone.

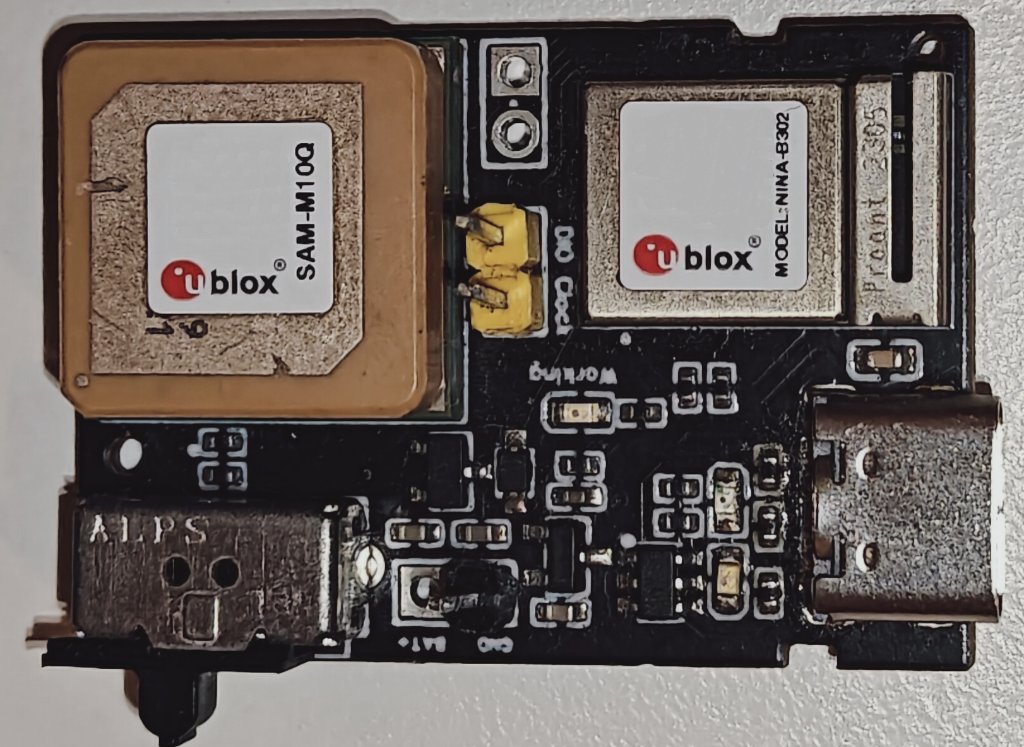

BLETracker is a Zephyr-based firmware project for a Bluetooth Low Energy tracker built around a Nordic nRF52840 platform and a u-blox SAM-M10 GNSS module. The repository also contains the associated board definition files and schematic design files.
BLETracker is a portable external GNSS positioning device designed to work with a smartphone over BLE. It augments the phone’s built-in GNSS by offloading positioning to a dedicated low-power device.
BLETracker bill of materials (BOM)
30 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | — | SOT-23-6_L2.9-W1.6-P0.95-LS2.8-BL | U1 |
| 1 | — | SOT-23-3_L3.0-W1.7-P0.95-LS2.9-BR | U2 |
| 1 | — | NINA_LGA67R_1500X1000X338_PIFA | U3 |
| 1 | — | SAM-M8 | U5 |
| 1 | — | SOT-23-3_L2.9-W1.6-P1.90-LS2.8-BR | Q1 |
| 3 | — | HDR-TH_2P-P2.54-V-M | H1, H2, H3 |
| 1 | — | SW-TH_SSAC120200 | SW2 |
| 1 | — | USB-C-SMD_TYPE-C16PIN | USB1 |
| 2 | — | LED0603-RD | LED4, LED7 |
| 1 | — | LED0603-RD-YELLOW | LED6 |
| 1 | — | SOD-323_L1.8-W1.3-LS2.5-RD | D1 |
| 4 | — | C0402 | C1, C6, C7, C8 |
| 1 | — | C0603 | C5 |
| 11 | — | R0402 | R1, R2, R3, R8, R9, R10, R11, R12 +3 |
BLETracker design files
The KiCad project lives in the Lancelotmay/BLETracker repository on GitHub; these links point at the commit this page was built from.
BLETracker: common questions
How big is the BLETracker PCB?
The BLETracker measures 37.1 × 25.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the BLETracker?
30 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the BLETracker design files?
From the Lancelotmay/BLETracker repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the BLETracker design in my own project?
Yes, under the terms of its GPL-2.0 license, which Lancelotmay chose for the repository.
