SoundMixer
About the SoundMixer PCB
SoundMixer is an open source PCB design by LeKoYa, published on GitHub under the MIT license. It is a 2-layer board measuring 30 × 30 mm, with 37 components from 7 distinct parts.
Other key parts include the XL-1010RGBC-WS2812B. By type, the board carries 25 ICs, 6 resistors, 4 capacitors, 1 connector and 1 switch.
It belongs with the displays & leds designs in this gallery.
From the project

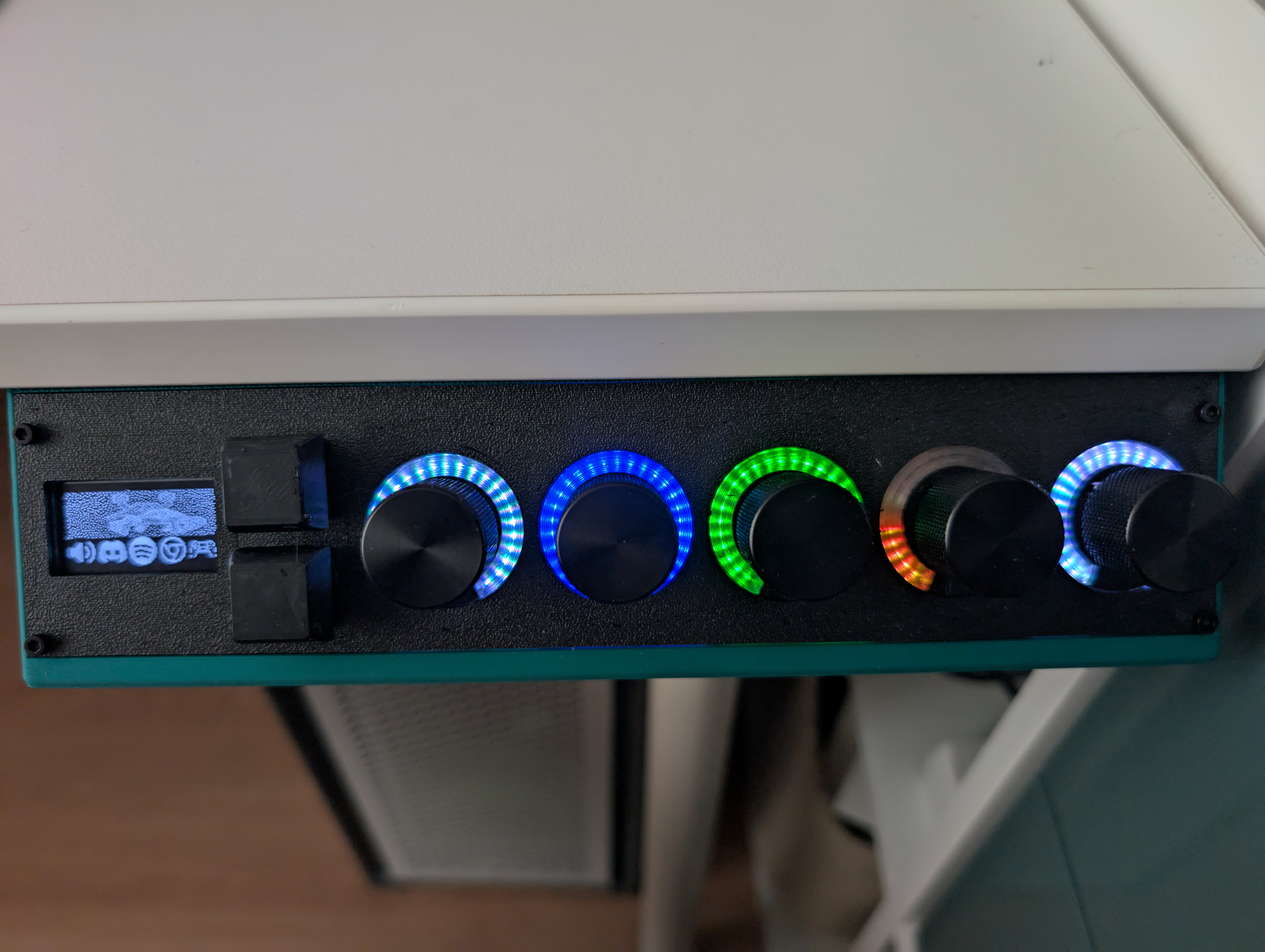

A deej-powered Soundmixer for individual volume control with rotary encoders, leds, buttons and oled support
This is still an early version and rebuilding your own might become very tricky. I am actively working on a second version that will be easier to build and assemble.
The pcb was designed in kicad. I am still working on a version2 that features two pcbs stacked on top of each other, so the encoder does not stick out too far above the leds.
Main components on the SoundMixer
SoundMixer bill of materials (BOM)
37 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 25 | XL-1010RGBC-WS2812B | LED-SMD_4P-L1.0-W1.0-TL_XL-1010RGBC-WS2812B | U1, U2, U3, U4, U5, U6, U7, U8 +17 |
| 1 | Conn_01x07 | Molex_PicoBlade_53047-0710_1x07_P1.25mm_Vertical | J1 |
| 1 | PEC11R-4015F-S0024 | SW-TH_PEC11R-4XXXF-SXXXX | SW1 |
| 3 | 0.01uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C3 |
| 1 | 4.7uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C4 |
| 5 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R3, R5, R6 |
| 1 | 1K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R4 |
SoundMixer design files
The KiCad project lives in the LeKoYa/SoundMixer repository on GitHub; these links point at the commit this page was built from.
SoundMixer: common questions
How big is the SoundMixer PCB?
The SoundMixer measures 30 × 30 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SoundMixer?
37 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the SoundMixer design files?
From the LeKoYa/SoundMixer repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the SoundMixer design in my own project?
Yes, under the terms of its MIT license, which LeKoYa chose for the repository.
