Seedsigner hardware dev v1 PCB layout, top view — open source board by lightningspore

About the Seedsigner hardware dev v1 PCB

Seedsigner hardware dev v1 is an open source PCB design by lightningspore, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 22 components from 8 distinct parts.

Other key parts include the WAVESHARE_LCD_BUTTON_BOARD_1.3IN, C2685093, C25503124 and PCA9539PW,112. By type, the board carries 14 resistors, 4 ICs, 1 connector and 1 capacitor.

From the project

Use an air-gapped Raspberry Pi Zero to sign for Bitcoin transactions! (and do other cool stuff)

SeedSigner code fork: https://github.com/lightningspore/seedsigner/tree/0.8.5-luckfox

Previous Iteration: LuckFox Pico Pro Max (More Flash, SPI Flash)

These example builds can build a device for around $60.

Replace /dev/diskX with your actual SD card device path.

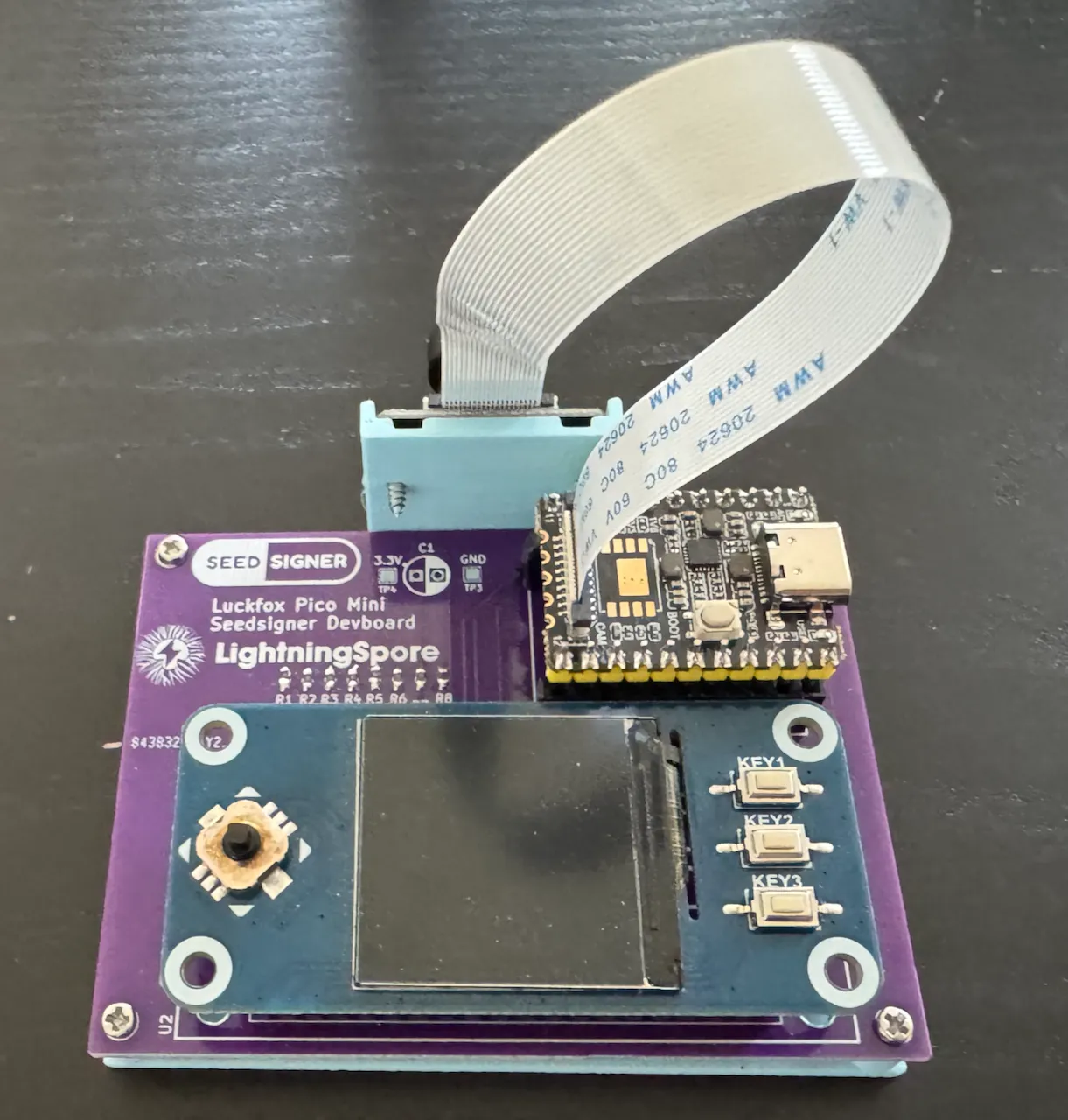

Seedsigner hardware dev v1, from the project README
From the project README

Main components on the Seedsigner hardware dev v1

WAVESHARE_LCD_BUTTON_BOARD_1.3INC2685093C25503124PCA9539PW,112

Seedsigner hardware dev v1 bill of materials (BOM)

22 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
WAVESHARE_LCD_BUTTON_BOARD_1.3IN
WAVESHARE_LCD_BUTTON_BOARD_1.3in
U2
1
C2685093
RPI_ZERO
U3
1
C25503124
LuckFox_Pico_PLUS_PRO
U4
1
PCA9539PW,112
PCA9539PW_112
U5
1
CONN_01X04
Conn_01x04
J1
2
ST7789
LCD1, LCD2
1
0.1UF
0.1uF
C1
14
10K
R1, R2, R3, R4, R5, R6, R7, R8 +6

Seedsigner hardware dev v1 design files

The KiCad project lives in the lightningspore/seedsigner-luckfox-pico repository on GitHub; these links point at the commit this page was built from.

Seedsigner hardware dev v1: common questions

How big is the Seedsigner hardware dev v1 PCB?

The Seedsigner hardware dev v1 measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Seedsigner hardware dev v1?

22 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Seedsigner hardware dev v1 design files?

From the lightningspore/seedsigner-luckfox-pico repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Seedsigner hardware dev v1 design in my own project?

The repository has no license, so all rights stay with lightningspore. Use it as a reference, and ask the author before reusing the design.
