MGMS PCB-PcbDoc

liu2g·mgms·design/sensor-module/kicad-port/MGMS_PCB-PcbDoc.kicad_pcb

MGMS PCB-PcbDoc layout, top view — open source AVR/Arduino board by liu2g
Simulate this board

About the MGMS PCB-PcbDoc

MGMS PCB-PcbDoc is an open source AVR/Arduino PCB design by liu2g, published on GitHub under the MIT license. It is a 2-layer board measuring 96 × 71.4 mm, with 40 components from 24 distinct parts.

Its main chip is the Arduino 3.3v regulator, from the AVR/Arduino family. Other key parts include the Battery Protection IC for LiPo, MOSFET 2 N-CH 20V 6.5A 8TSSOP, Arduino ATMEGA328 Chip, Single Bus 3-State Buffer and XBEE 3 SMD. By type, the board carries 13 capacitors, 8 ICs, 6 resistors, 5 connectors, 1 transistor and 1 diode.

It belongs with the iot & wireless, power & battery and rf & radio designs in this gallery.

From the project

Modular Garden Monitoring System - Senior Design Project

Detailed component list see Bill of Material.

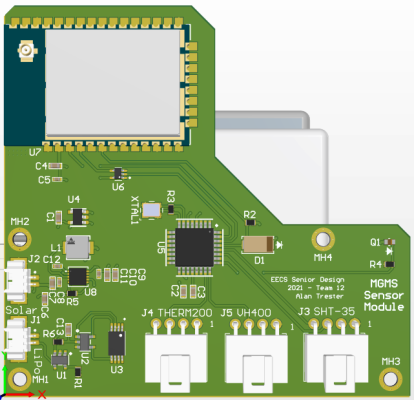

Following figures demonstrate a 3D mockup of the device as well as the alpha-prototype. The PCB was designed in such a way that it could tightly fit into a handhold-sized weatherproof enclosure, interfaced with a similar-sized solar panel and lithium-ion battery pack. The system's sunlight sensor and radio antenna are cautiously positioned to avoid being obstructed by other components.

MGMS PCB-PcbDoc, from the project README
From the project README

Main components on the MGMS PCB-PcbDoc

MGMS PCB-PcbDoc bill of materials (BOM)

40 components, 24 distinct parts — part numbers from the project's BOM.
