About the Yggdrasil PCB
Yggdrasil is an open source PCB design by LoyalPotato, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 157.8 × 104.3 mm, with 44 components from 6 distinct parts.
Other key parts include the ProMicro. By type, the board carries 18 switches, 18 diodes, 1 IC and 1 connector.
It belongs with the keyboards and wearables designs in this gallery.
From the project
Home to my custom keyboard project "Yggdrasil"
This is the home of my first keyboard project that I dubbed Yggdrasil.
It's a 36% split keyboard that is tailored to be comfortable to my hand span. You can find the build guide here.

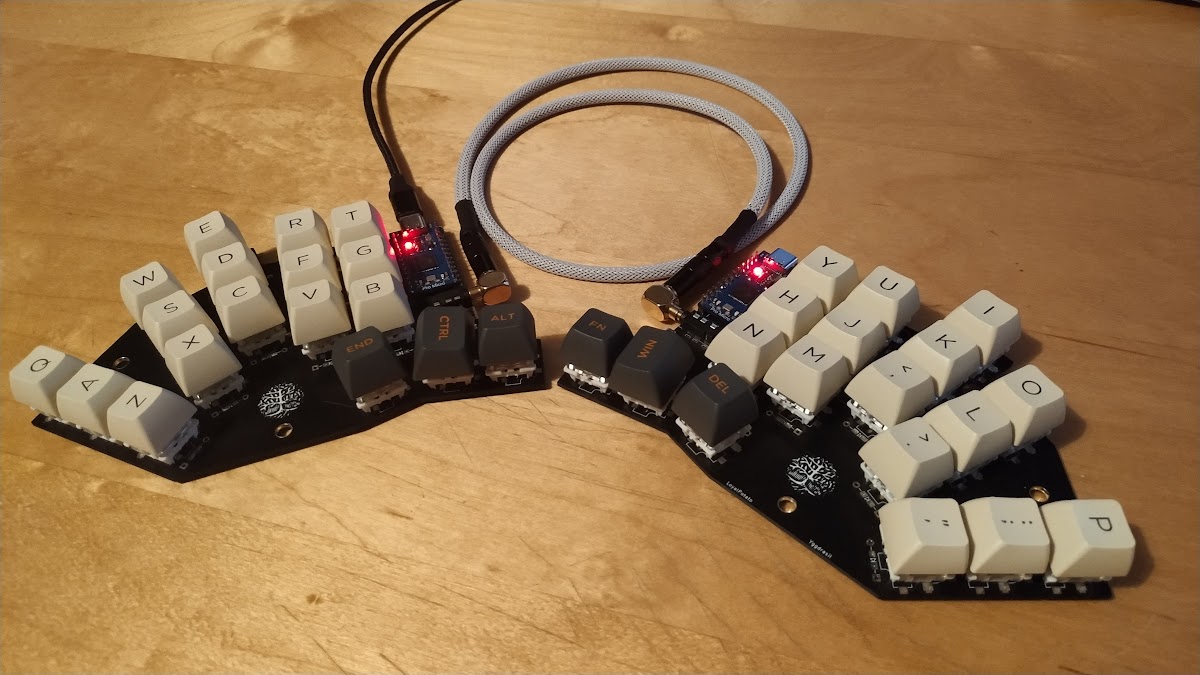

Here's what it looks like (minus plates)
And with 3d printed plates (and custom cables also done by me hehe :) )
- Welcome - Contents - Design Article - Plans - References - License
Main components on the Yggdrasil
Yggdrasil bill of materials (BOM)
44 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro | ProMicro_USB_C | U1 |
| 1 | 4PIN | MJ-4PP-9 | J2 |
| 1 | SW_RST | TACT_SWITCH_TVBP06 | RSW1 |
| 18 | SW_PUSH | Cherry_MX_Choc_Hotswap_MX_Spacing | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +10 |
| 5 | HOLE | HOLE_M2_TH | TH3, TH4, TH5, TH6, TH7 |
| 18 | D | Diode_TH_SOD123 | D1, D2, D3, D4, D5, D6, D7, D8 +10 |
Yggdrasil design files
The KiCad project lives in the LoyalPotato/yggdrasil repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/prj/yggdrasil.kicad_pcb
- Schematickicad/prj/yggdrasil.kicad_sch
Yggdrasil: common questions
How big is the Yggdrasil PCB?
The Yggdrasil measures 157.8 × 104.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Yggdrasil?
44 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the Yggdrasil design files?
From the LoyalPotato/yggdrasil repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Yggdrasil design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
