DoublePanel VCut
About the DoublePanel VCut PCB
DoublePanel VCut is an open source PCB design by M-Scholli, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 48 × 34 mm, with 12 components from 11 distinct parts.
Other key parts include the AP2204R-5.0TRG1 and SN74LV1T34DBVR. By type, the board carries 3 diodes, 3 capacitors, 2 ICs, 2 connectors, 1 switch and 1 inductor.
From the project

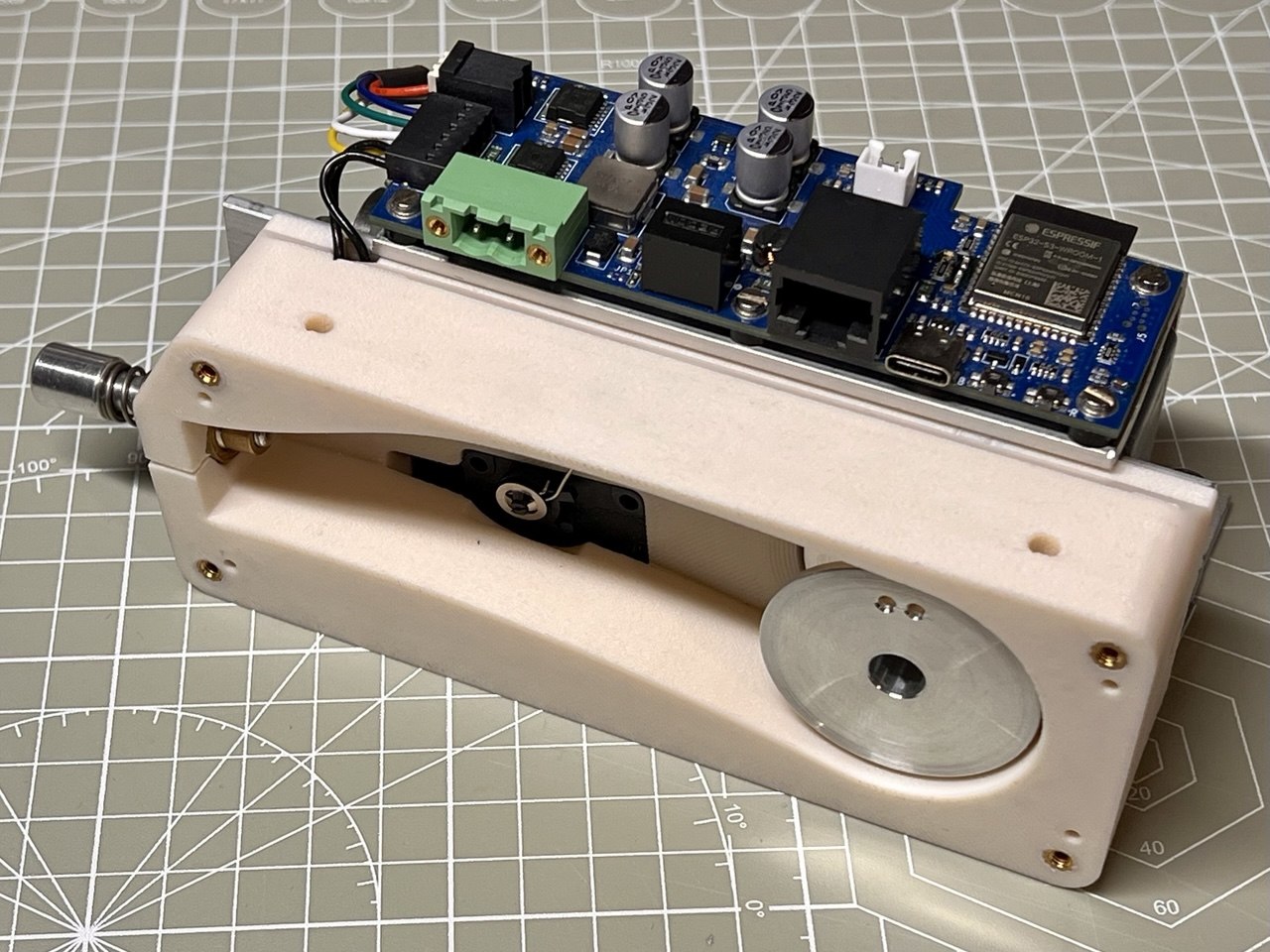

Bug Wiper Controller for Sailplanes Version 2 with ESP32-S3
The new version of the BugWiper system is a complete redesign of the hardware and software to improve the performance, reliability and features of the system. The new design is based on the ESP32-S3 micro controller. The new design also includes a new motor with higher torque, a self locking gear and a motor encoder to measure the motor position and speed. The new design also includes a new software architecture that allows for more advanced features like programmable cable length, soft direction change of the motor at the wingtip, slow down the motor before reaching the fuselage and logging…
Main components on the DoublePanel VCut
DoublePanel VCut bill of materials (BOM)
12 components, 11 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP2204R-5.0TRG1 AP2204R-5.0 | SOT-89-3 | U1 |
| 1 | SN74LV1T34DBVR SN74LV1T34DBV | SOT-23-5 | U2 |
| 1 | UJ20-C-H-G-SMT-1-P16 RJ45 | MJ3415882 | J1 |
| 1 | 1770924 Conn_01x03_Socket | PinHeader_1x04_P2.54mm_Vertical | J2 |
| 1 | 100SP4T1B4M2QE | 100SP4T1B4M2QE | S1 |
| 2 | APA-106-F5 | LED_D5.0mm-4_RGB_Wide_Pins | D1, D3 |
| 1 | CUS15S30,H3F | D_SOD-323_HandSoldering | D2 |
| 1 | IHLP4040DZER100M1A L_Ferrite | L_0805_2012Metric | L1 |
| 1 | 100nF | C_0603_1608Metric | C1 |
| 1 | 470nF | C_0603_1608Metric | C2 |
| 1 | 100NF 100nF | C_0603_1608Metric | C3 |
DoublePanel VCut design files
The KiCad project lives in the M-Scholli/BugWiper2_0 repository on GitHub; these links point at the commit this page was built from.
DoublePanel VCut: common questions
How big is the DoublePanel VCut PCB?
The DoublePanel VCut measures 48 × 34 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the DoublePanel VCut?
12 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the DoublePanel VCut design files?
From the M-Scholli/BugWiper2_0 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the DoublePanel VCut design in my own project?
Yes, under the terms of its Apache-2.0 license, which M-Scholli chose for the repository.
