Stm32-basic PCB layout, top view — open source STM32 board by maanika

About the Stm32-basic PCB

Stm32-basic is an open source STM32 PCB design by maanika, published on GitHub. It is a 2-layer board measuring 38.5 × 33.5 mm, with 24 components from 14 distinct parts.

Its main chip is the STM32F103C8T6, from the STM32 family. Other key parts include the AMS1117-3.3. By type, the board carries 13 capacitors, 5 resistors, 2 ICs, 1 crystal, 1 connector and 1 inductor.

From the project

Simple STM32 board

This repository contains the design files for a custom PCB based on the STM32 microcontroller. The PCB is designed for prototyping and development, exposing key interfaces including UART, I2C, and SWD.

STM32 Microcontroller (STM32F103C8T6): Central processing unit for the board.

I2C: For connecting peripherals like sensors or displays.

/production: Fabrication toolkit output. Contains the gerber (stm32_basic.zip), bom, and position files for manufacturing.

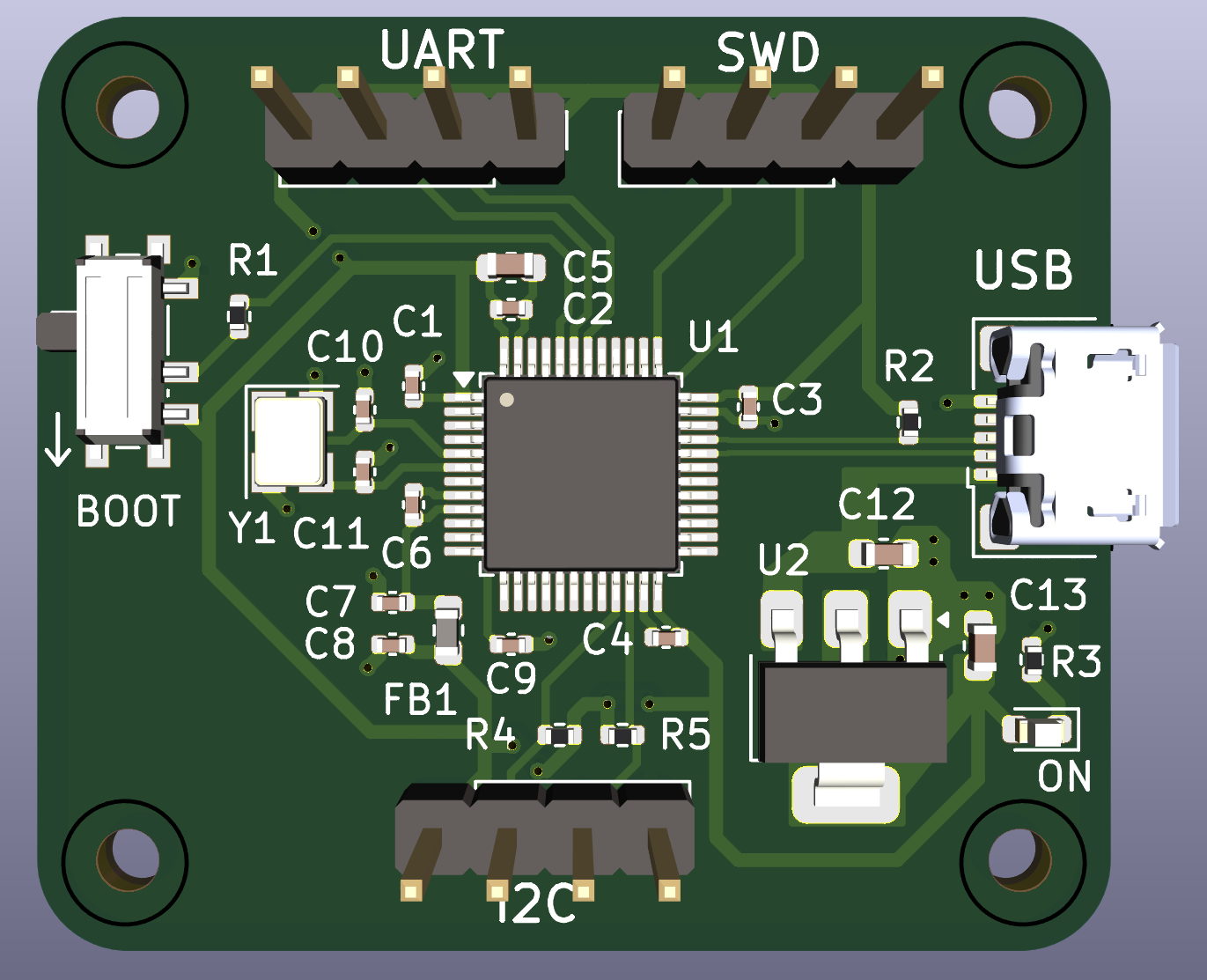

Stm32-basic, from the project README
From the project README

Main components on the Stm32-basic

STM32F103C8T6AMS1117-3.3

Stm32-basic bill of materials (BOM)

24 components, 14 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32F103C8T6
U1
1
AMS1117-3.3
U2
1
16MHZ
16MHz
Y1
1
USB_B_Micro
J1
1
Conn_01x04_Pin
I2C
1
120R
FB1
5
100N
100n
C1, C2, C3, C4, C9
3
10U
10u
C5, C12, C13
1
10N
10n
C6
2
1u
C7, C8
2
10P
10p
C10, C11
1
10K
10k
R1
2
1K5
1k5
R2, R3
2
2K2
2k2
R4, R5

Stm32-basic design files

The KiCad project lives in the maanika/stm32-basic-pcb repository on GitHub; these links point at the commit this page was built from.

Stm32-basic: common questions

What microcontroller does the Stm32-basic use?

The Stm32-basic is built around the STM32F103C8T6, from the STM32 family.

How big is the Stm32-basic PCB?

The Stm32-basic measures 38.5 × 33.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stm32-basic?

24 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Stm32-basic design files?

From the maanika/stm32-basic-pcb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Stm32-basic design in my own project?

The repository has no license, so all rights stay with maanika. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Stm32-basic without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
