FDA-A-v1
About the FDA-A-v1 PCB
FDA-A-v1 is an open source PCB design by macaba, published on GitHub under the MIT license. It is a 4-layer board measuring 45.5 × 18 mm, with 52 components from 15 distinct parts.
Other key parts include the OPA140, THP210 and TLV3542. By type, the board carries 22 resistors, 13 connectors, 13 capacitors and 4 ICs.
From the project

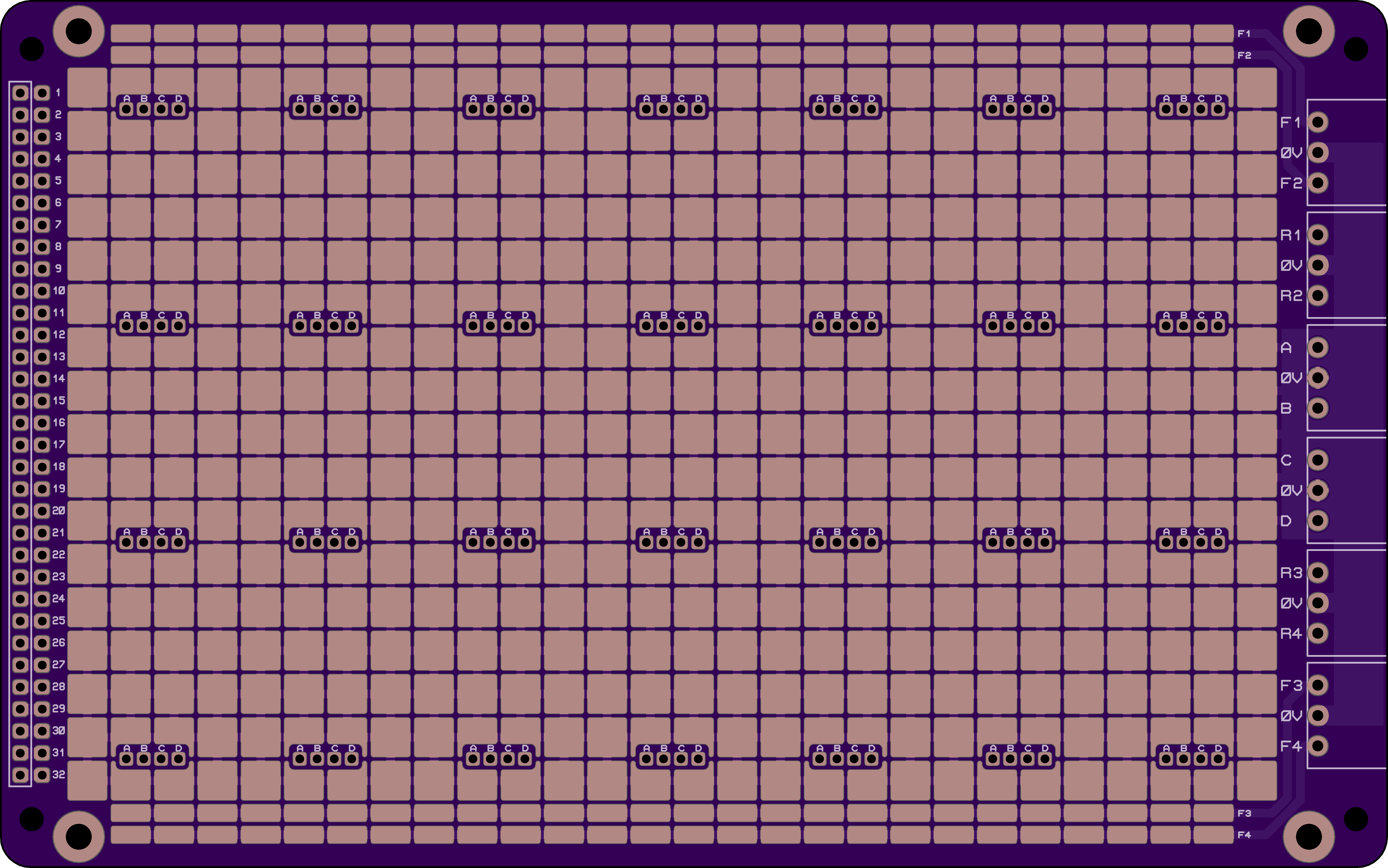

Electronic circuit prototyping system for reliable rapid prototyping.
Electronic circuit prototyping system for reliable rapid prototyping.
- Use double sided tape to stick down SMT breakout boards onto a base board. - Use hookup wire or bare tinned copper wire to make connections. - Mount through-hole components directly, sometimes using islands as a convenient landing pad. - Use pluggable terminal blocks to make external connections. - Label your boards to ensure you don't forget what they are in future!
Main components on the FDA-A-v1
FDA-A-v1 bill of materials (BOM)
52 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | OPA140 | SOIC-8_3.9x4.9mm_P1.27mm | U1, U2 |
| 1 | THP210 | SO-8_3.9x4.9mm_P1.27mm | U3 |
| 1 | TLV3542 | SO-8_3.9x4.9mm_P1.27mm | U4 |
| 13 | Conn_01x01_Pin | Manhattan-2mm | J1, J2, J3, J4, J5, J6, J7, J8 +5 |
| 8 | 1u | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | C1, C2, C3, C4, C5, C6, C9, C13 |
| 2 | 10p | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | C7, C8 |
| 2 | 4.7n | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | C10, C11 |
| 1 | 1n | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | C12 |
| 3 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2, R14 |
| 7 | 2.2 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3, R4, R5, R6, R12, R13, R17 |
| 6 | 10 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R7, R8, R9, R10, R18, R19 |
| 1 | TBD | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R11 |
| 2 | 1k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R15, R16 |
| 2 | 0 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R20, R21 |
| 1 | 2k | SO-16_3.9x9.9mm_P1.27mm | RN1 |
FDA-A-v1 design files
The KiCad project lives in the macaba/TheManhattanToolkit repository on GitHub; these links point at the commit this page was built from.
FDA-A-v1: common questions
How big is the FDA-A-v1 PCB?
The FDA-A-v1 measures 45.5 × 18 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the FDA-A-v1?
52 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the FDA-A-v1 design files?
From the macaba/TheManhattanToolkit repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the FDA-A-v1 design in my own project?
Yes, under the terms of its MIT license, which macaba chose for the repository.
