About the ADC-A-v1 PCB
ADC-A-v1 is an open source PCB design by macaba, published on GitHub under the MIT license. It is a 6-layer board measuring 35.5 × 35.5 mm, with 26 components from 12 distinct parts.
Other key parts include the MCP1725-1802E/SN, AD4630-24BBCZ and TXB0108DQSR. By type, the board carries 14 capacitors, 8 resistors and 4 ICs.
From the project

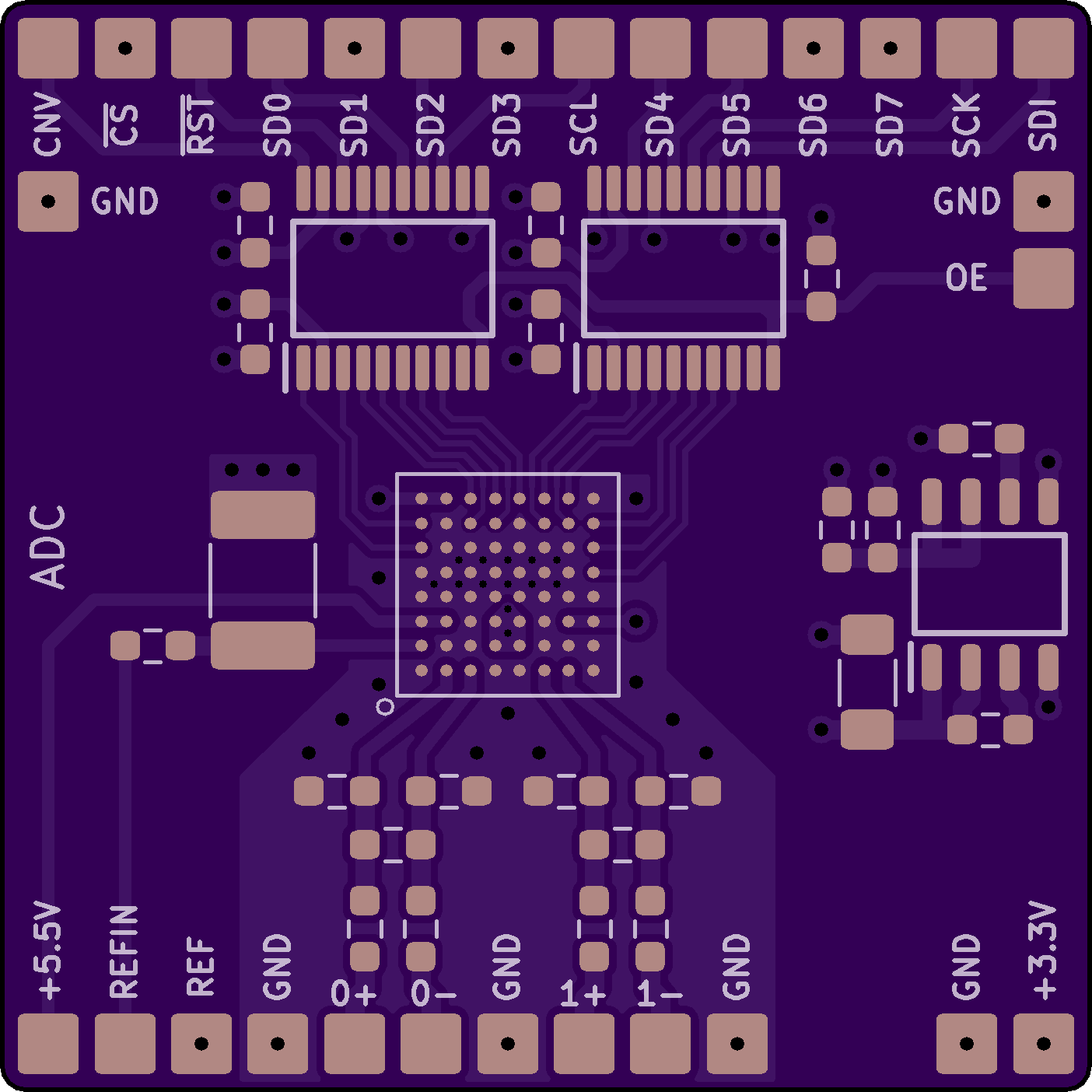

AD4630-24 ADC with supporting components.
AD4630-24 ADC with supporting components.
Input R - RNCF0603DTE10R0 (10 ohm) Input CM C - CGA3E1C0G2A472J080AC (4.7nF) Input DM C - DNP
Main components on the ADC-A-v1
ADC-A-v1 bill of materials (BOM)
26 components, 12 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP1725-1802E/SN MCP1725-1802E_SN | SOIC127P600X175-8N | IC1 |
| 1 | AD4630-24BBCZ | AD4630-24BBCZ | U1 |
| 2 | TXB0108DQSR | SOP65P640X120-20N | U2, U3 |
| 4 | CC | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | C3, C4, C7, C8 |
| 1 | 10uF | C_1812_4532Metric_Pad1.57x3.40mm_HandSolder | C5 |
| 2 | CD | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | C6, C9 |
| 4 | 100nF | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | C10, C11, C12, C15 |
| 1 | 1nF | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | C13 |
| 1 | 1uF | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | C14 |
| 1 | 10uF | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | C16 |
| 7 | R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2, R4, R29, R30, R31, R32 |
| 1 | 100R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3 |
