Monitor boost

MadsRudolph·personal-projects·Projects/Monitor 19V Boost/kicad/monitor-boost.kicad_pcb

Monitor boost PCB layout, top view — open source board by MadsRudolph

About the Monitor boost PCB

Monitor boost is an open source PCB design by MadsRudolph, published on GitHub. It is a 2-layer board measuring 147 × 99 mm, with 47 components from 34 distinct parts.

Other key parts include the SG3524. By type, the board carries 18 resistors, 17 capacitors, 4 diodes, 3 transistors, 2 connectors and 1 IC.

From the project

The C27JG5x runs from a 19 V / 2.53 A (48 W) adapter. On a 12 V supply it browns out and shows artifacts. This board boosts a mains-powered 12 V supply to a regulated 19 V. The 230 V side stays inside a certified 12 V supply. Everything built here runs at 25 V or less.

The C27JG5x runs from a 19 V / 2.53 A (48 W) adapter. On a 12 V supply it browns out and shows artifacts. This board boosts a mains-powered 12 V supply to a regulated 19 V. The 230 V side stays inside a certified 12 V supply. Everything built here runs at 25 V or less.

Almost every part comes from the DTU component shop. Only the inductor wire, a fuse, the barrel-plug lead and the 12 V supply come from elsewhere. The board is single-sided and through-hole, isolation-milled on the CNC with a 0.8 mm end mill.

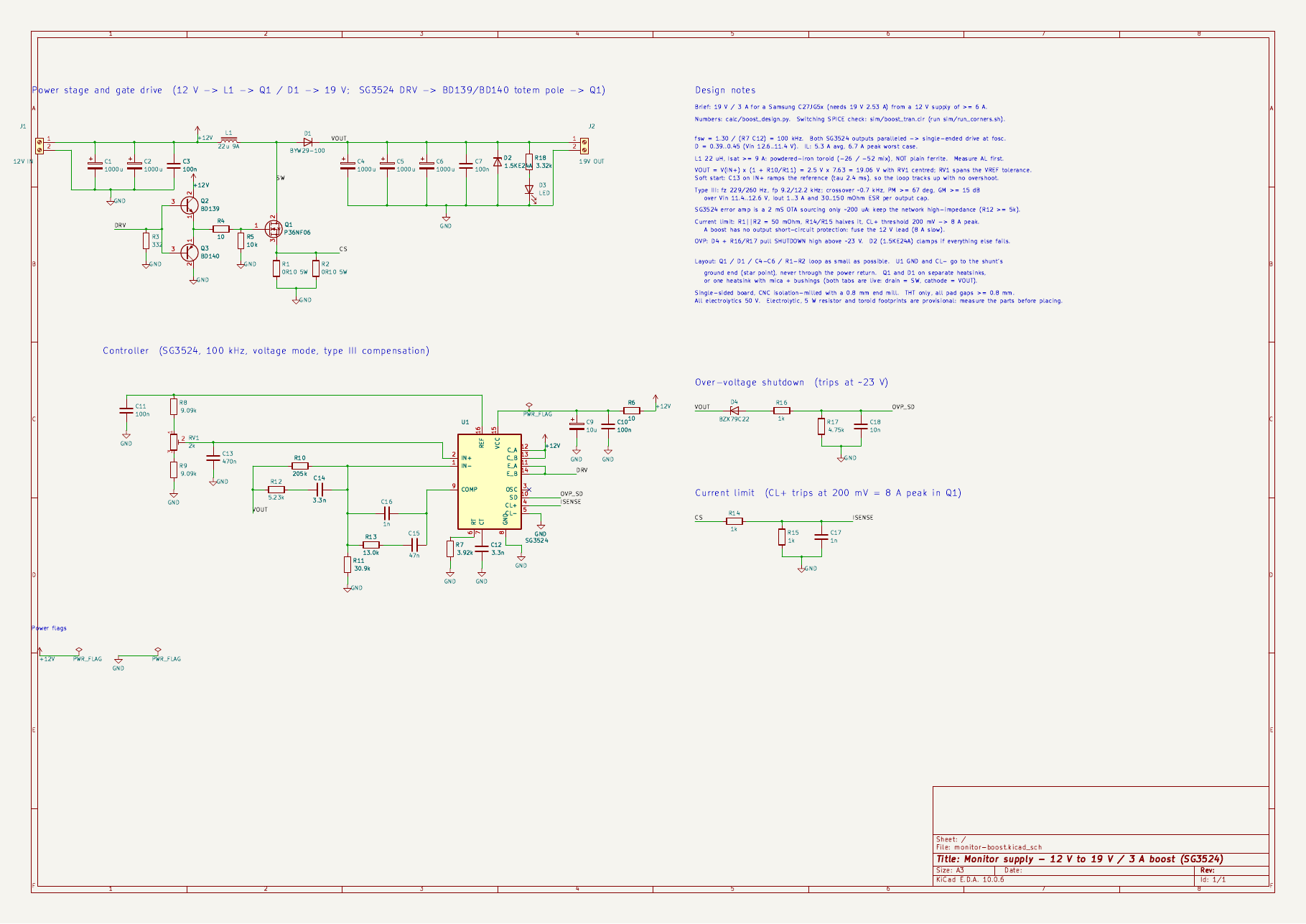

Monitor boost, from the project README
From the project README

Main components on the Monitor boost

SG3524

Monitor boost bill of materials (BOM)

47 components, 34 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SG3524
U1
1
P36NF06
Q1
1
BD139
Q2
1
BD140
Q3
1
12V IN
J1
1
19V OUT
J2
1
2k
RV1
1
BYW29-100
D1
1
1.5KE24A
D2
1
LED
D3
1
BZX79C22
D4
1
22u 9A
L1
5
1000u
C1, C2, C4, C5, C6
4
100n
C3, C7, C10, C11
1
10u
C9
2
3.3n
C12, C14
1
470n
C13
1
47n
C15
1
1n
C16
1
1n
C17
Show 14 more
QtyPartRefs
1
10n
C18
2
0R10 5W
R1, R2
1
332
R3
2
10
R4, R6
1
10k
R5
1
3.92k
R7
2
9.09k
R8, R9
1
205k
R10
1
30.9k
R11
1
5.23k
R12
1
13.0k
R13
3
1k
R14, R15, R16
1
4.75k
R17
1
3.32k
R18

Monitor boost design files

The KiCad project lives in the MadsRudolph/personal-projects repository on GitHub; these links point at the commit this page was built from.

Monitor boost: common questions

How big is the Monitor boost PCB?

The Monitor boost measures 147 × 99 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Monitor boost?

47 components, from 34 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Monitor boost design files?

From the MadsRudolph/personal-projects repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Monitor boost design in my own project?

The repository has no license, so all rights stay with MadsRudolph. Use it as a reference, and ask the author before reusing the design.
