SplitboardFlipped
About the SplitboardFlipped PCB
SplitboardFlipped is an open source PCB design by mail2adnanyazik-bit, published on GitHub. It is a 2-layer board measuring 139.4 × 107.4 mm, with 48 components from 6 distinct parts.
By type, the board carries 22 switches, 21 diodes, 4 resistors and 1 LED.
It belongs with the keyboards, displays & leds and iot & wireless designs in this gallery.
From the project

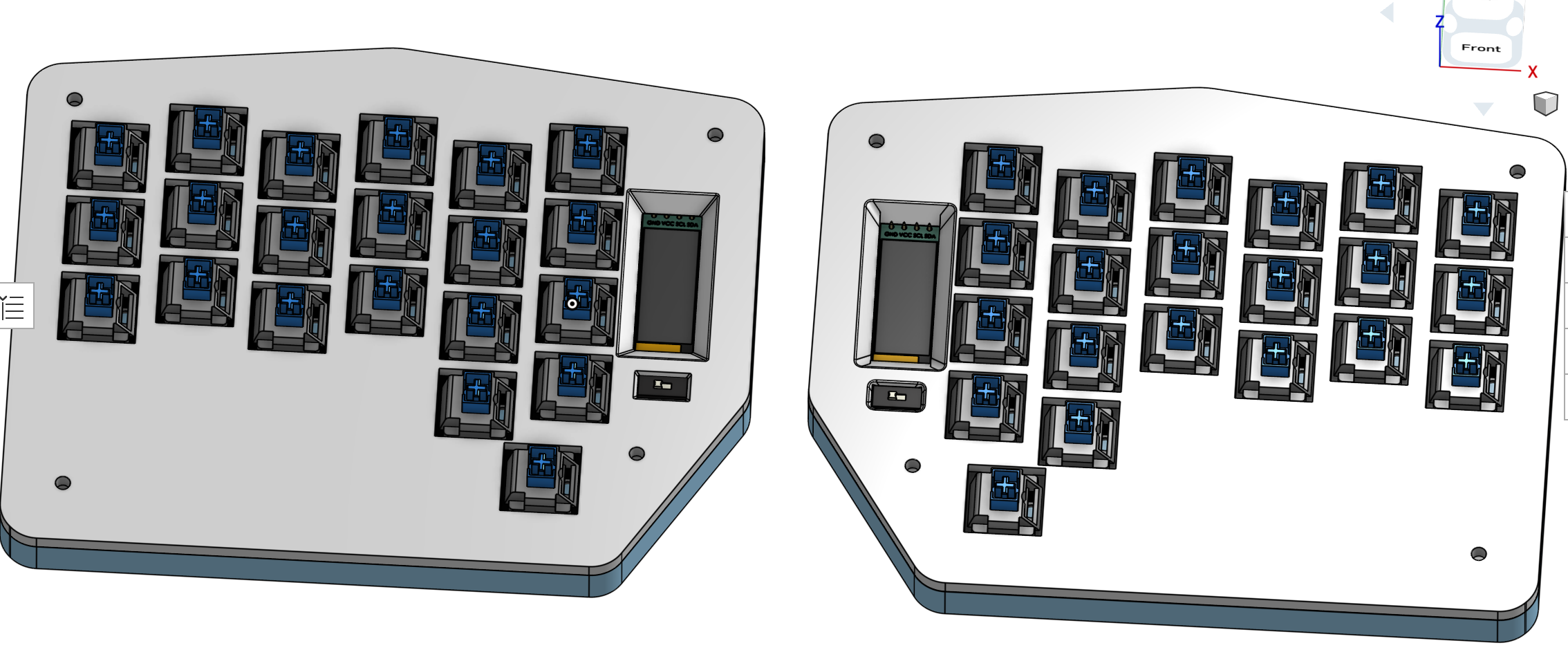

A custom, completely from scratch built wireless corne split keyboard with 42 hotswappable Switches, and 2 OLED's. Everything from PCB to Case was built by me, and i handpicked all the components.
Splitboard is a wireless split keyboard built by ME - Panda (also known as Adnan)
You see, my dad has had a dygma raise split keyboard since like 4 years, and i thought it looked REALLY cool, and wanted to get one - till i saw the price - the thing was whopping 200 DOLLARS ! So i thought to myself - why not build one myself ?
By the time this event rolled around, i was already getting tired of my very anti-ergonomic apple magic keyboard, and thought that this project would be perfect, expecially cause of the experience with keyboards i got from the Hackpad mission.
SplitboardFlipped bill of materials (BOM)
48 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 21 | SW_Push | Kailh_socket_MX_reversible | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +13 |
| 1 | SW_SPST | SW_DIP_SPSTx01_Slide_9.78x4.72mm_W8.61mm_P2.54mm | SW-B1 |
| 1 | Conn_01x04_Pin | SSD1306-0.91-OLED-4pin-128x32 | OLED1 |
| 21 | D | D_SOD-123 | D1, D2, D3, D4, D5, D6, D7, D8 +13 |
| 2 | 100k | R_0603_1608Metric | R1, R2 |
| 2 | 4.7k | R_0603_1608Metric | R3, R4 |
SplitboardFlipped design files
The KiCad project lives in the mail2adnanyazik-bit/Pandakeeb repository on GitHub; these links point at the commit this page was built from.
SplitboardFlipped: common questions
How big is the SplitboardFlipped PCB?
The SplitboardFlipped measures 139.4 × 107.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SplitboardFlipped?
48 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SplitboardFlipped design files?
From the mail2adnanyazik-bit/Pandakeeb repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the SplitboardFlipped design in my own project?
The repository has no license, so all rights stay with mail2adnanyazik-bit. Use it as a reference, and ask the author before reusing the design.
