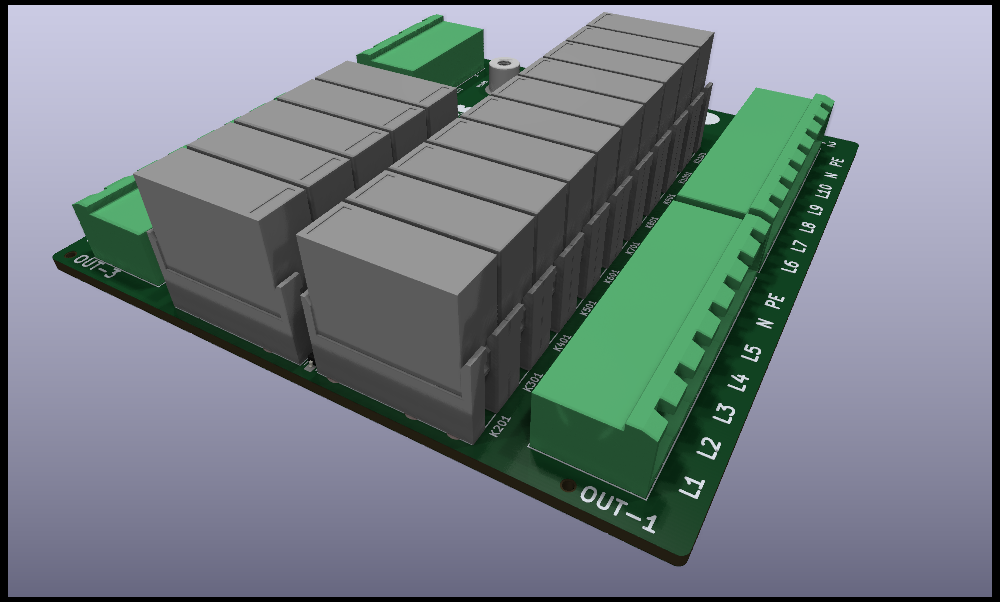

WormControl-Relay15x5t15-PowerBoard
About the WormControl-Relay15x5t15-PowerBoard PCB
WormControl-Relay15x5t15-PowerBoard is an open source PCB design by makerspacelt, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 85.5 × 86 mm, with 44 components from 12 distinct parts.
Other key parts include the TMP102. By type, the board carries 17 diodes, 15 relays, 5 connectors, 3 capacitors, 2 resistors and 1 IC.
From the project
Dev NOTE: before commit, run ./kibot.sh to regenerate documentation, bom, gerbers and other assets.
Dev NOTE: before commit, run ./kibot.sh to regenerate documentation, bom, gerbers and other assets.
schematics.pdf pcb.pdf with dimensions * ibom.html
Main components on the WormControl-Relay15x5t15-PowerBoard
WormControl-Relay15x5t15-PowerBoard bill of materials (BOM)
44 components, 12 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TMP102 | SOT-563 | U101 |
| 1 | IN | PhoenixContact_GMSTBA_2,5_3-G-7,62_1x03_P7.62mm_Horizontal | J101 |
| 3 | 1X7_5.08 1x7_5.08 | PhoenixContact_MSTBA_2,5_7-G-5,08_1x07_P5.08mm_Horizontal | J102, J103, J104 |
| 1 | FFC Connector | AFC11-S24ICC-00 | J105 |
| 1 | M3 | post_m3x5mm | H101 |
| 15 | P6D-04P | P6D-04P | K201, K301, K401, K501, K601, K701, K801, K901 +7 |
| 2 | GREEN | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D101, D102 |
| 15 | B5819WS | D_SOD-323_HandSoldering | D201, D301, D401, D501, D601, D701, D801, D901 +7 |
| 1 | 10U/50V 10u/50v | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C101 |
| 2 | 100N 100n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C102, C103 |
| 1 | 47K 47k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R101 |
| 1 | 4K7 4k7 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R102 |
WormControl-Relay15x5t15-PowerBoard design files
The KiCad project lives in the makerspacelt/WormControl-Relay15x5t15-PowerBoard repository on GitHub; these links point at the commit this page was built from.
- Layoutproject/project.kicad_pcb
- Schematicproject/project.kicad_sch
- BOMgen/bom.csv
WormControl-Relay15x5t15-PowerBoard: common questions
How big is the WormControl-Relay15x5t15-PowerBoard PCB?
The WormControl-Relay15x5t15-PowerBoard measures 85.5 × 86 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the WormControl-Relay15x5t15-PowerBoard?
44 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the WormControl-Relay15x5t15-PowerBoard design files?
From the makerspacelt/WormControl-Relay15x5t15-PowerBoard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the WormControl-Relay15x5t15-PowerBoard design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which makerspacelt chose for the repository.
