Board-RZA1L
About the Board-RZA1L
Board-RZA1L is an open source PCB design by martinribelotta, published on GitHub. It is a 4-layer board measuring 85.5 × 79.9 mm, with 144 components from 36 distinct parts.
Other key parts include the RZ-A1L, 13MHz, 48MHz, N25QXXX and AS4C16M16S. By type, the board carries 60 capacitors, 30 resistors, 22 connectors, 9 ICs, 9 inductors and 8 diodes.
From the project

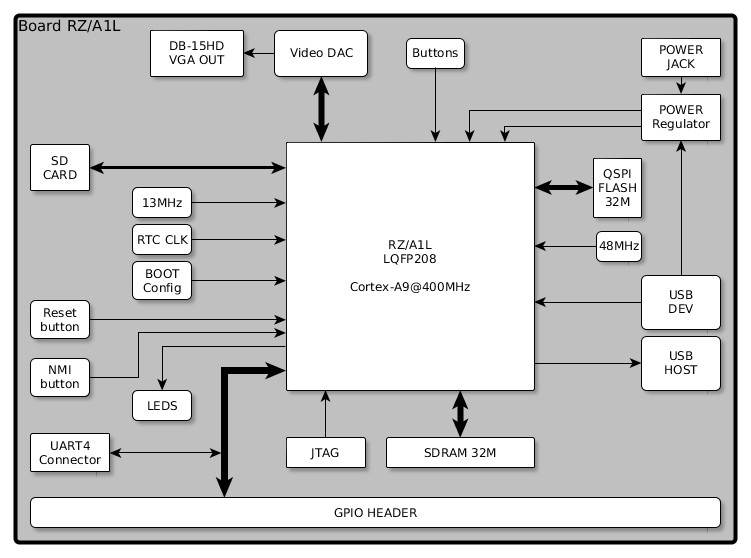

Renesas RZ/A1L, Cortex A9 board using KiCAD
Cortex-A9 board for Renesas RZ CPU using KiCAD
- CPU: RZ/A1L 208LQFP - RAM: 32/64M sdram - Flash: 16/32M QSPI FLASH - VGA: 24bpp@\Hz - USB: 1 Host & 1 Dev - GPIO: 30 GPIO (+6 LED +2 Button) Muxed with:
Main components on the Board-RZA1L
Board-RZA1L bill of materials (BOM)
144 components, 36 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RZ-A1L | PQFP208 | U1 |
| 1 | 13MHz | OSC_2x2p5 | U2 |
| 1 | 48MHz | OSC_4PIN | U3 |
| 1 | N25QXXX | SOP2-8 | U4 |
| 1 | AS4C16M16S | TSOP_II_54 | U5 |
| 1 | NCP1117ST33T3G | sot223 | U6 |
| 1 | BU42xx | SSOP-5 | U7 |
| 1 | ADV7125-lqfp48 | lqfp48 | U8 |
| 1 | NCP1117ST12T3G | sot223 | U9 |
| 1 | 32.768k | Crystal_Round_Vertical_3mm | X1 |
| 1 | USB-MINI-B | USB_MINI_B | CON1 |
| 1 | USB-A-PCB | USB_A | CON2 |
| 1 | microSD | microSD | CON3 |
| 1 | BARREL_JACK | BARREL_JACK | CON4 |
| 1 | VGA | DB_15F-VGA | J1 |
| 1 | SUPP32 | Pin_Header_Angled_1x32 | J2 |
| 16 | CONN_1 | PINTST | P2, P3, P4, P5, P6, P7, P8, P9 +8 |
| 1 | CONN_3 | SIL-3 | K1 |
| 1 | RESET | RigthAnglePush | SW1 |
| 1 | NMI | RigthAnglePush | SW2 |
Show 16 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SW0 | RigthAnglePush | SW3 |
| 1 | SW1 | RigthAnglePush | SW4 |
| 6 | LED | LED-0805 | D1, D2, D3, D4, D7, D8 |
| 2 | MBRA210 | Diode-SMA_Standard | D5, D6 |
| 9 | BLM18PG600 | SM0805 | L1, L2, L3, L4, L5, L6, L7, L8 +1 |
| 44 | 100n | C_0805 | C1, C2, C3, C4, C5, C6, C7, C8 +36 |
| 2 | 10p | C_0805 | C36, C37 |
| 3 | 1u | C_0805 | C46, C50, C53 |
| 6 | 10u | C_0805 | C48, C67, C68, C69, C70, C71 |
| 5 | 100p | C_0805 | C72, C73, C74, C75, C76 |
| 1 | 5K6 | R_0805 | R1 |
| 3 | 220R | R_0805 | R2, R3, R51 |
| 17 | 10k | R_0805 | R4, R5, R6, R7, R8, R9, R10, R11 +9 |
| 1 | 560R | R_0805 | R21 |
| 3 | 75R | R_0805 | R24, R25, R26 |
| 5 | 1k | R_0805 | R27, R45, R46, R47, R48 |
Board-RZA1L design files
The KiCad project lives in the martinribelotta/Board-RZA1L repository on GitHub; these links point at the commit this page was built from.
- LayoutBoardRZA1.kicad_pcb
Board-RZA1L: common questions
How big is the Board-RZA1L?
The Board-RZA1L measures 85.5 × 79.9 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Board-RZA1L?
144 components, from 36 distinct parts. The full bill of materials is listed on this page.
Where can I download the Board-RZA1L design files?
From the martinribelotta/Board-RZA1L repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Board-RZA1L design in my own project?
The repository has no license, so all rights stay with martinribelotta. Use it as a reference, and ask the author before reusing the design.
