About the SpacePad PCB

SpacePad is an open source PCB design by MasterClassmate3004, published on GitHub. It is a 2-layer board measuring 98 × 65.7 mm, with 15 components from 4 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 8 switches, 6 diodes and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

This is a macropad developed to imitate a spaceship. It includes 6 keys and 2 rotary encoders. This is your macropad for all your speedy needs.

B2 BomboPad is a custom six-key macropad with two rotary encoders, designed and built from scratch.

Its angular PCB and enclosure are inspired by the silhouette of the B-2 Spirit stealth bomber. The design combines a functional macropad with an aircraft-inspired industrial aesthetic.

- 6 mechanical keys - 2 rotary encoders with push switches - Seeed Studio XIAO RP2040 microcontroller - 2 × 3 diode key matrix - Custom PCB designed in KiCad - Custom top and bottom enclosure designed in Onshape - QMK firmware - Gerber files included for PCB fabrication

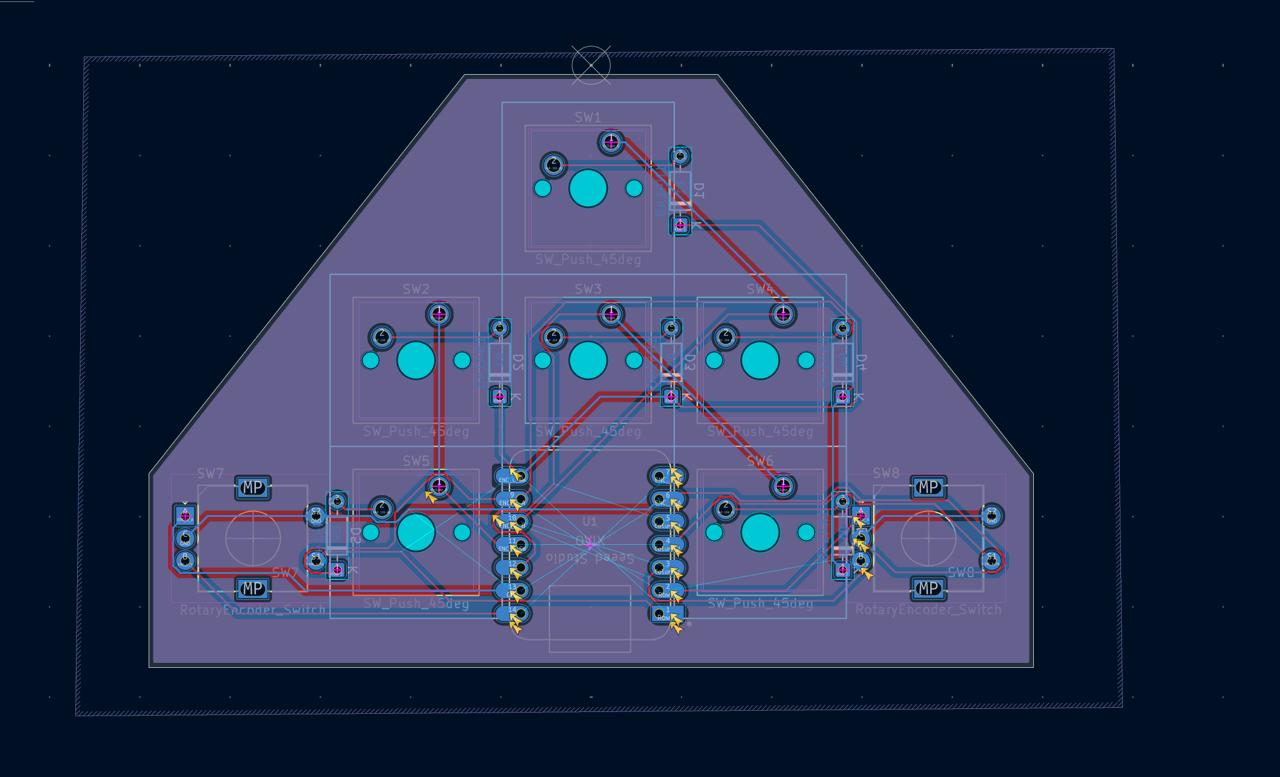

SpacePad, from the project README
From the project README

Main components on the SpacePad

MOUDLE-SEEEDUINO-XIAO

SpacePad bill of materials (BOM)

15 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
6
SW_Push_45deg
SW1, SW2, SW3, SW4, SW5, SW6
2
RotaryEncoder_Switch
SW7, SW8
6
1N4148
D1, D2, D3, D4, D5, D6

SpacePad design files

The KiCad project lives in the MasterClassmate3004/SpacePad repository on GitHub; these links point at the commit this page was built from.

SpacePad: common questions

How big is the SpacePad PCB?

The SpacePad measures 98 × 65.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SpacePad?

15 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SpacePad design files?

From the MasterClassmate3004/SpacePad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SpacePad design in my own project?

The repository has no license, so all rights stay with MasterClassmate3004. Use it as a reference, and ask the author before reusing the design.
