About the Hackpad PCB
Hackpad is an open source PCB design by MatejPechoucek, published on GitHub. It is a 2-layer board measuring 83 × 89 mm, with 38 components from 5 distinct parts.
Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 24 diodes, 13 switches and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project

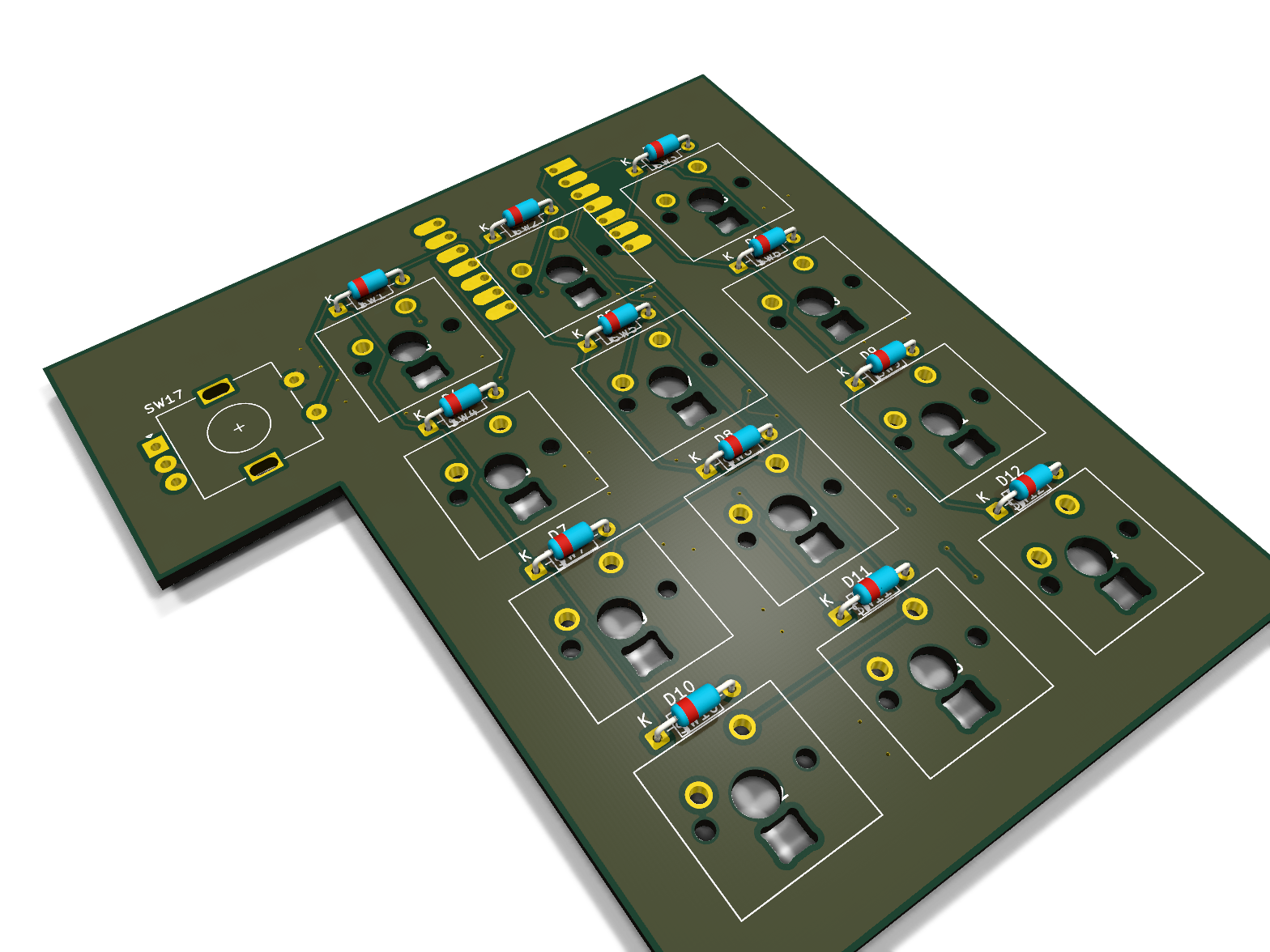

A 12-key, 4x3 macropad built around a Seeed Studio XIAO RP2040. It includes per-key SK6812 MINI-E RGB lighting, an EC11 rotary encoder, VIA support, and a fully 3D-printable two-part case.
A 12-key, 4x3 macropad built around a Seeed Studio XIAO RP2040. It includes per-key SK6812 MINI-E RGB lighting, an EC11 rotary encoder, VIA support, and a fully 3D-printable two-part case.
- PCB: 83 mm x 89 mm, 2 layers - Case envelope: approximately 130 mm x 110 mm x 16 mm - Controller: Seeed Studio XIAO RP2040 - Keys: 12 MX-compatible switches in a 4x3 matrix - Lighting: 12 SK6812 MINI-E addressable RGB LEDs - Input: EC11 rotary encoder with push switch - Firmware: QMK with VIA support - Case fasteners: 4.7 mm heat-set insert holes and 3.4 mm pass-through holes

Main components on the Hackpad
Hackpad bill of materials (BOM)
38 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MOUDLE-SEEEDUINO-XIAO | XIAO-Generic-Hybrid-14P-2.54-21X17.8MM | U1 |
| 12 | SW_Push | SW_Cherry_MX_1.00u_PCB | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +4 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW17 |
| 12 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4, D5, D6, D7, D8 +4 |
| 12 | SK6812MINI-E | SK6812MINI-E_fixed | D13, D14, D15, D16, D17, D18, D19, D20 +4 |
Hackpad design files
The KiCad project lives in the MatejPechoucek/hackpad repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/hackpad_pcb.kicad_pcb
- Schematicpcb/hackpad_pcb.kicad_sch
- BOMBOM.csv
Hackpad: common questions
How big is the Hackpad PCB?
The Hackpad measures 83 × 89 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Hackpad?
38 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Hackpad design files?
From the MatejPechoucek/hackpad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Hackpad design in my own project?
The repository has no license, so all rights stay with MatejPechoucek. Use it as a reference, and ask the author before reusing the design.
