Analog lockbox v2

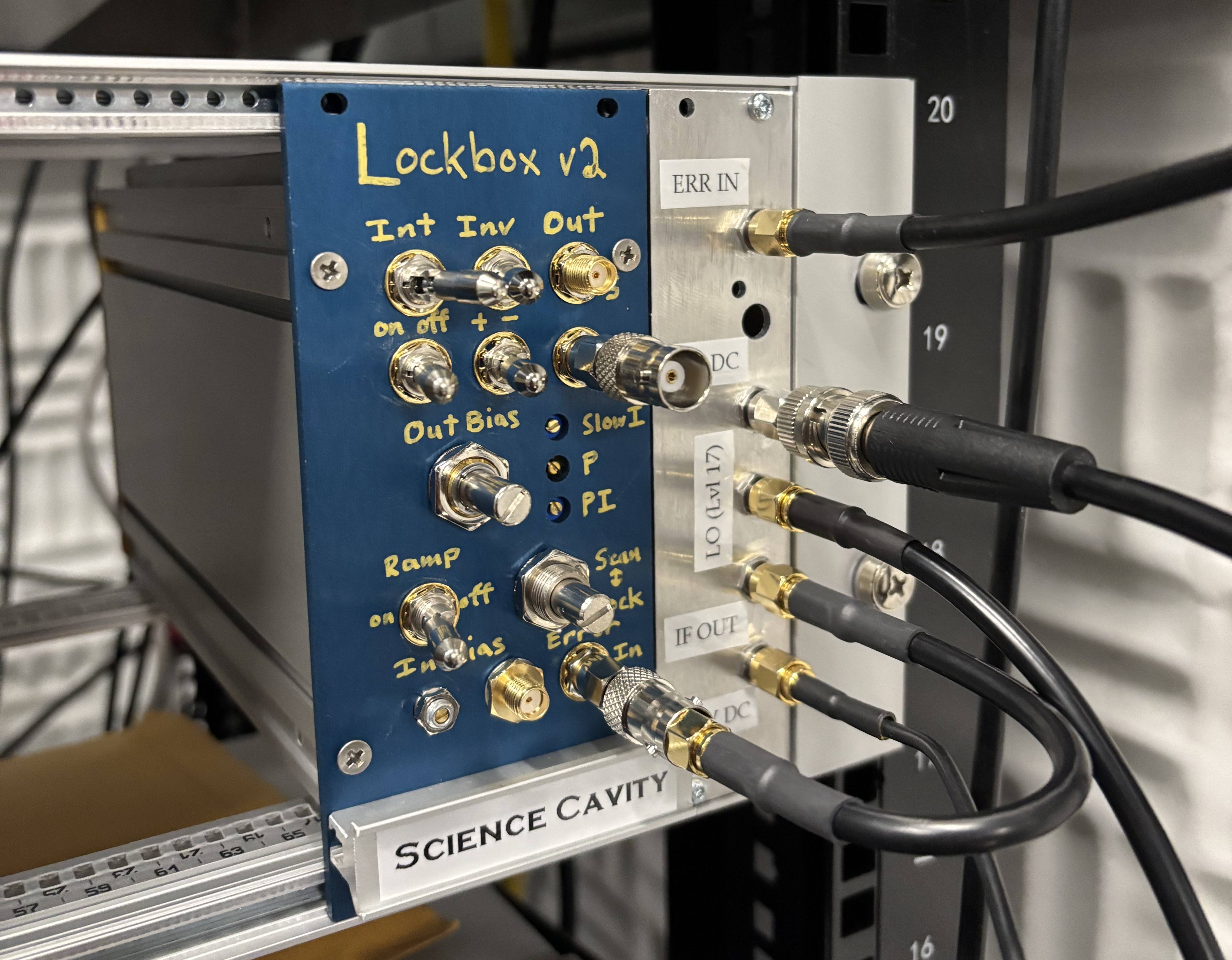

About the Analog lockbox v2 PCB
Analog lockbox v2 is an open source PCB design by matterwaves, published on GitHub. It is a 4-layer board measuring 100 × 100 mm, with 107 components from 43 distinct parts.
Other key parts include the Opamp_Dual. By type, the board carries 42 resistors, 27 capacitors, 9 connectors, 7 ICs, 5 switches and 4 jumpers.
Main components on the Analog lockbox v2
Analog lockbox v2 bill of materials (BOM)
107 components, 43 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 7 | Opamp_Dual | DIP-8_W7.62mm | U1, U2, U3, U4, U5, U6, U7 |
| 1 | Conn_01x10_Pin | JST_ZH_B10B-ZR_1x10_P1.50mm_Vertical | J1 |
| 1 | Conn_01x03_Pin | SolderWire-0.25sqmm_1x03_P4.2mm_D0.65mm_OD1.7mm | J2 |
| 1 | Error_In | SMA_Amphenol_132289_EdgeMount | J3 |
| 1 | Bias_In | SMA_Amphenol_132134_Vertical | J4 |
| 1 | Error_Mon | SMA_Amphenol_132134_Vertical | J5 |
| 1 | Fast_Mon | SMA_Amphenol_132134_Vertical | J6 |
| 1 | Fast_Out | SMA_Amphenol_132289_EdgeMount | J7 |
| 1 | Slow_Out | SMA_Amphenol_132289_EdgeMount | J8 |
| 1 | Slow_Mon | SMA_Amphenol_132134_Vertical | J9 |
| 1 | Ext_Bias_Jump | PinHeader_2x01_P2.54mm_Vertical | JP1 |
| 1 | Man_Bias_Jump | PinHeader_2x01_P2.54mm_Vertical | JP2 |
| 1 | Slow_Bias_Jump | PinHeader_2x01_P2.54mm_Vertical | JP3 |
| 1 | Fast_Bias_Jump | PinHeader_2x01_P2.54mm_Vertical | JP4 |
| 1 | 10k | Potentiometer_Bourns_3296W_Vertical | RV1 |
| 1 | 100k | 51CADE24E20L | RV2 |
| 2 | 100k | Potentiometer_Bourns_3006P_Horizontal | RV3, RV4 |
| 2 | 50k | Potentiometer_Bourns_3296W_Vertical | RV5, RV6 |
| 1 | 50k | Potentiometer_Bourns_3006P_Horizontal | RV7 |
| 2 | 100k | Potentiometer_Bourns_3296W_Vertical | RV8, RV9 |
Show 23 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Fast_Int | SolderWire-0.25sqmm_1x02_P4.5mm_D0.65mm_OD2mm | SW2 |
| 1 | Ramp_Off | SolderWire-0.25sqmm_1x02_P4.5mm_D0.65mm_OD2mm | SW3 |
| 1 | Slow_Int | SolderWire-0.25sqmm_1x02_P4.5mm_D0.65mm_OD2mm | SW4 |
| 1 | Fast_Invert | SolderWire-0.25sqmm_1x03_P4.5mm_D0.65mm_OD2mm | SW5 |
| 1 | Slow_Invert | SolderWire-0.25sqmm_1x03_P4.5mm_D0.65mm_OD2mm | SW6 |
| 2 | D_Zener_Small | D_DO-15_P15.24mm_Horizontal | D1, D3 |
| 2 | D_Zener_Small | D_A-405_P7.62mm_Horizontal | D2, D4 |
| 1 | 1n | C_Axial_L3.8mm_D2.6mm_P7.50mm_Horizontal | C1 |
| 1 | C | C_Axial_L3.8mm_D2.6mm_P7.50mm_Horizontal | C2 |
| 1 | 2.2u | C_Axial_L3.8mm_D2.6mm_P7.50mm_Horizontal | C3 |
| 10 | 10u | CP_Radial_D5.0mm_P2.00mm | C4, C7, C9, C13, C15, C19, C21, C23 +2 |
| 14 | C1591 100n | C_0603_1608Metric | C5, C6, C8, C10, C12, C14, C16, C18 +6 |
| 2 | 1M | R_Axial_DIN0411_L9.9mm_D3.6mm_P12.70mm_Horizontal | R1, R7 |
| 4 | 10k | R_Axial_DIN0411_L9.9mm_D3.6mm_P12.70mm_Horizontal | R2, R3, R4, R5 |
| 10 | C17900 100k | R_1206_3216Metric | R6, R12, R15, R16, R28, R29, R30, R37 +2 |
| 15 | C1489 10k | R_1206_3216Metric | R8, R9, R10, R11, R19, R23, R24, R25 +7 |
| 2 | C17916 150k | R_1206_3216Metric | R13, R14 |
| 3 | 100R | R_Axial_DIN0411_L9.9mm_D3.6mm_P12.70mm_Horizontal | R17, R31, R42 |
| 1 | C270888 1k | R_1210_3225Metric | R18 |
| 1 | C17978 7.5k | R_1206_3216Metric | R20 |
| 1 | C17906 11k | R_1206_3216Metric | R21 |
| 1 | C25833 47k | R_1206_3216Metric | R22 |
| 2 | 100R | R_Axial_DIN0414_L11.9mm_D4.5mm_P15.24mm_Horizontal | R32, R41 |
Analog lockbox v2 design files
The KiCad project lives in the matterwaves/analog-lockbox-v2 repository on GitHub; these links point at the commit this page was built from.
Analog lockbox v2: common questions
How big is the Analog lockbox v2 PCB?
The Analog lockbox v2 measures 100 × 100 mm, has 4 copper layers and is 1.600198 mm thick.
How many components are on the Analog lockbox v2?
107 components, from 43 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Analog lockbox v2 design files?
From the matterwaves/analog-lockbox-v2 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Analog lockbox v2 design in my own project?
The repository has no license, so all rights stay with matterwaves. Use it as a reference, and ask the author before reusing the design.
