Hollow-Wood

About the Hollow-Wood PCB

Hollow-Wood is an open source PCB design by Mefred, published on GitHub under the Custom license license. It is a board, with 73 components from 3 distinct parts.

Other key parts include the nice_nano. By type, the board carries 36 switches, 36 diodes and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

36 Key Keyboard

A 36-key unified ergonomic keyboard designed from scratch in KiCad.

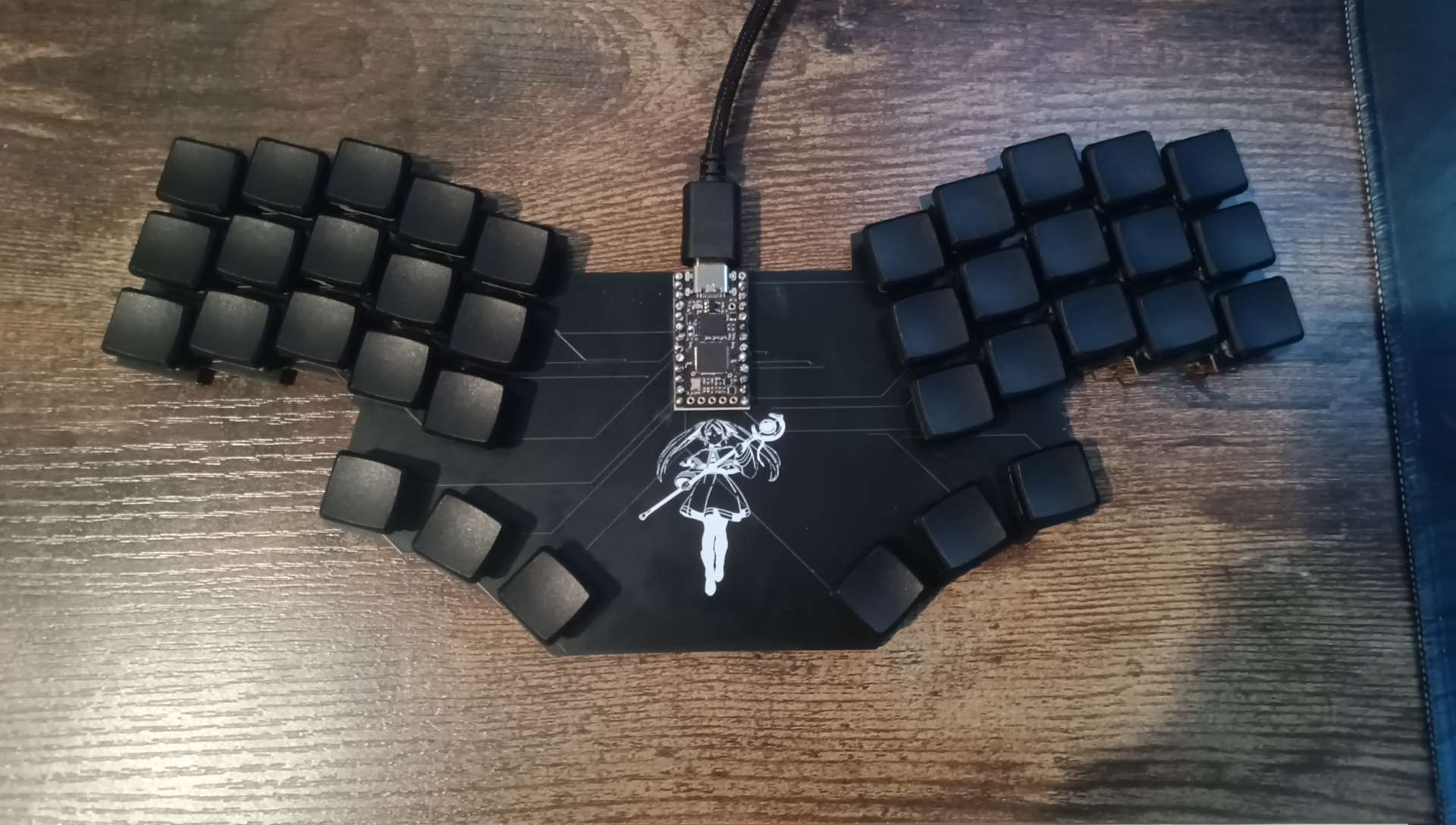

Hollow Wood is a 36-key column-staggered ergonomic keyboard built as a single unified PCB.

- Base — Colemak - NUM — Numbers and symbols (hold Space) - SYM — Symbols and brackets (hold Enter) - NAV — Arrow keys and navigation (hold Tab)

- /pcb — KiCad PCB and schematic files - /firmware — QMK Firmware Files - /gerber — Production-ready gerber files

Main components on the Hollow-Wood

nice_nano

Hollow-Wood bill of materials (BOM)

73 components, 3 distinct parts.

QtyPartRefs
1
nice_nano
U1
36
SW_Push_45deg
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +28
36
D
D1, D2, D3, D4, D5, D6, D7, D8 +28

Hollow-Wood design files

The KiCad project lives in the Mefred/Hollow-Wood repository on GitHub; these links point at the commit this page was built from.

Hollow-Wood: common questions

How many components are on the Hollow-Wood?

73 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Hollow-Wood design files?

From the Mefred/Hollow-Wood repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Hollow-Wood design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.
