Kombo TP4056 m PCB layout, top view — open source board by MelexinVN

About the Kombo TP4056 m PCB

Kombo TP4056 m is an open source PCB design by MelexinVN, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 30.5 × 30.5 mm, with 3 components from 2 distinct parts.

It belongs with the power & battery, rf & radio and displays & leds designs in this gallery.

From the project

Декоративное устройство на микроконтроллере STM32 и адресных светодиодах WS2812, управляемое по радиоканалу радиомодулем NRF24L01+. Decorative device based on an STM32 microcontroller and WS2812 addressable LEDs controlled via a radio channel by an NRF24L01+ radio module

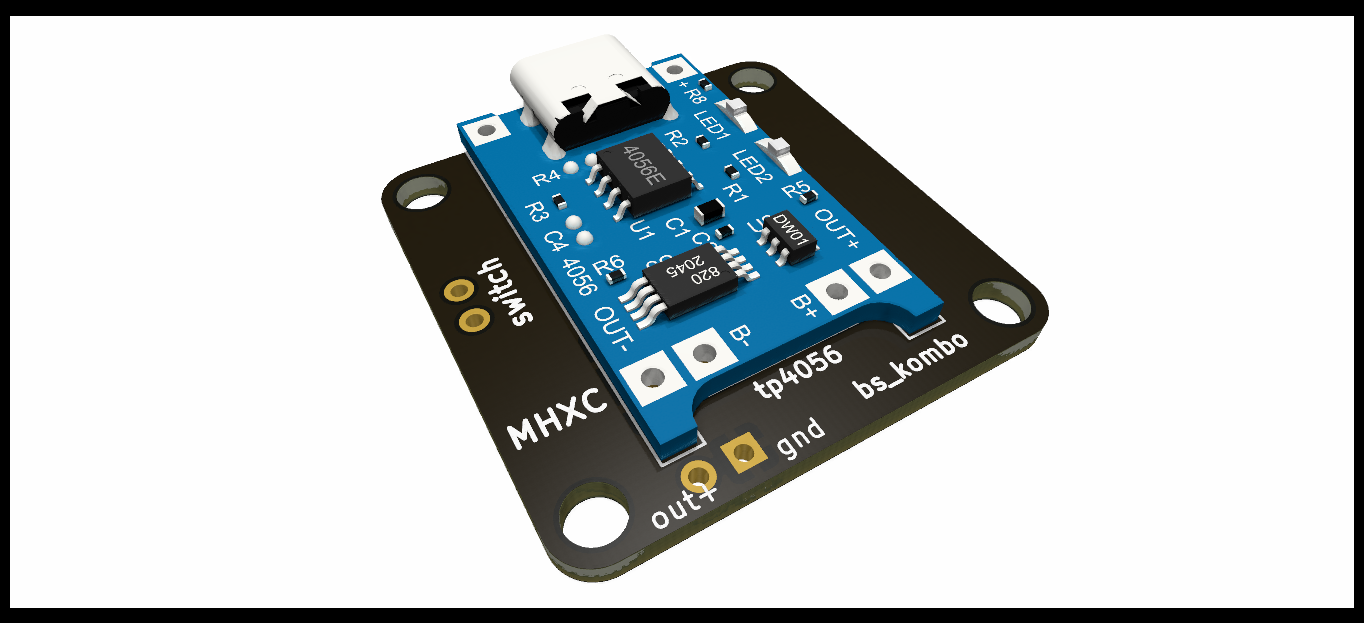

Kombo TP4056 m, from the project README
From the project README

Kombo TP4056 m bill of materials (BOM)

3 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
CONN_01X02
Conn_01x02
J1, J2
1
TP4056 module
DS1

Kombo TP4056 m design files

The KiCad project lives in the MelexinVN/bs_kombo_sidru repository on GitHub; these links point at the commit this page was built from.

Kombo TP4056 m: common questions

How big is the Kombo TP4056 m PCB?

The Kombo TP4056 m measures 30.5 × 30.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kombo TP4056 m?

3 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Kombo TP4056 m design files?

From the MelexinVN/bs_kombo_sidru repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Kombo TP4056 m design in my own project?

Yes, under the terms of its GPL-3.0 license, which MelexinVN chose for the repository.
