Sipm
About the Sipm PCB

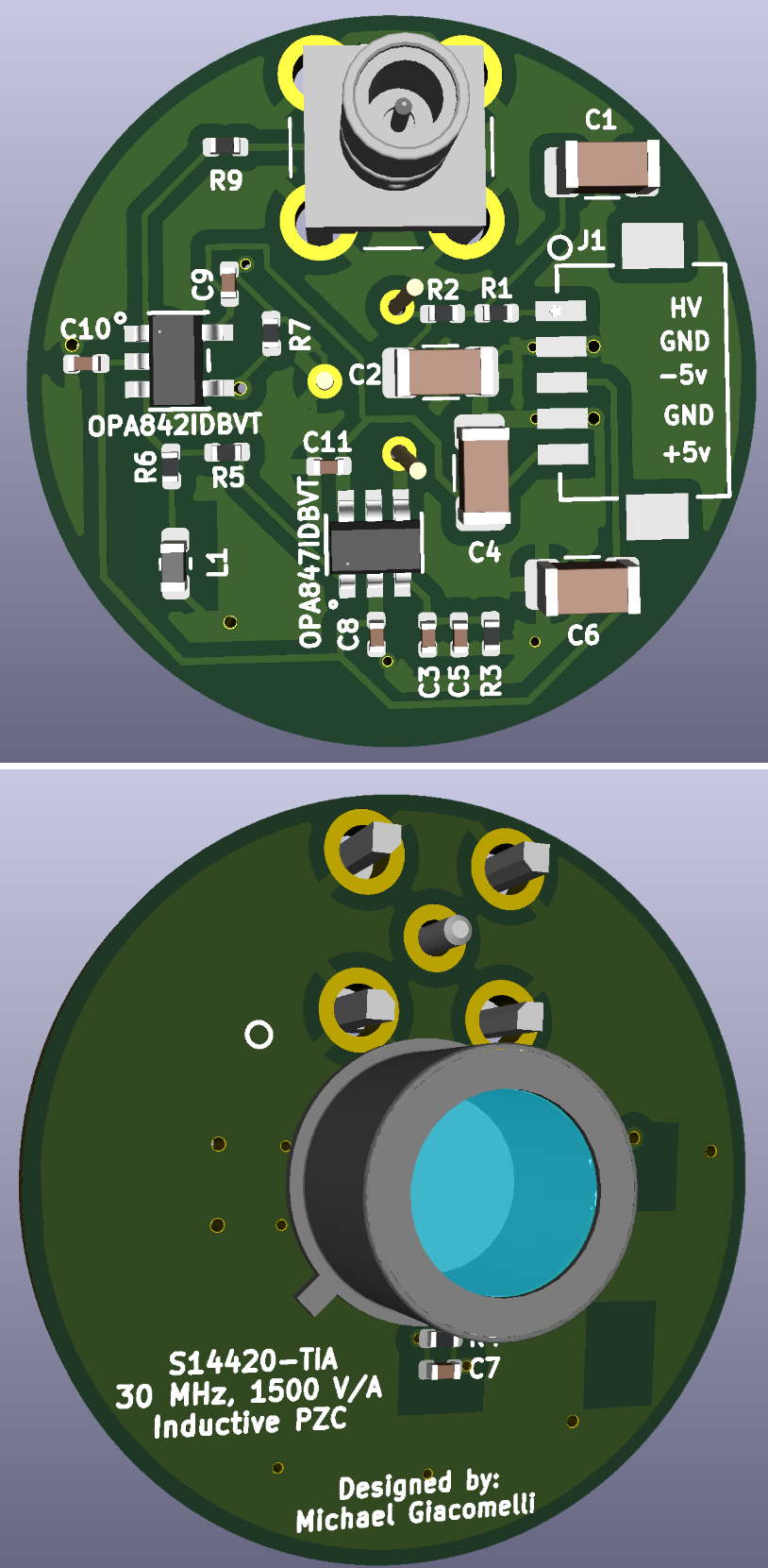

Sipm is an open source PCB design by mgiacomelli, published on GitHub. It is a 2-layer board measuring 25.3 × 25.3 mm, with 26 components from 17 distinct parts.
Other key parts include the OPA847IDBVT and OPA842IDBVT. By type, the board carries 11 capacitors, 9 resistors, 2 ICs, 2 connectors, 1 diode and 1 inductor.
From the project
Design files for SIPM boards
This page is obsolete. A greatly improved design is available here: https://github.com/OpenSiPM/sipm-bias-control
The updated design has higher dynamic range, lower noise, higher bandwidth and includes the bias generation, power supplies and low pass filter.
These are the design files for the SIPM amplifier described in M. G. Giacomelli, "Evaluation of silicon photomultipliers for multiphoton and laser scanning microscopy," J. Biomed. Opt. 24, 1 (2019) available from…
Main components on the Sipm
Sipm bill of materials (BOM)
26 components, 17 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | OPA847IDBVT | OPA847IDBVT | U1 |
| 1 | OPA842IDBVT | OPA843IDBVT | U2 |
| 1 | DF13C-5P-1.25V(21) | DF13C-5P-1.25V21 | J1 |
| 1 | Conn_Coaxial | SMB_Jack_Vertical | J2 |
| 1 | SIPM | S14420 | D1 |
| 1 | 0.4u | L_0603_1608Metric | L1 |
| 2 | 1u | C_1206_3216Metric | C1, C2 |
| 1 | 0.01u | C_0402_1005Metric | C3 |
| 2 | 4.7u | C_1206_3216Metric | C4, C6 |
| 1 | 1u | C_0402_1005Metric | C5 |
| 1 | 1.8p | C_0402_1005Metric | C7 |
| 4 | 0.1u | C_0402_1005Metric | C8, C9, C10, C11 |
| 3 | 10 | R_0402_1005Metric | R1, R2, R6 |
| 2 | 1500 | R_0402_1005Metric | R3, R4 |
| 1 | 100 | R_0402_1005Metric | R5 |
| 2 | 422 | R_0402_1005Metric | R7, R8 |
| 1 | 50 | R_0402_1005Metric | R9 |
Sipm design files
The KiCad project lives in the mgiacomelli/sipm repository on GitHub; these links point at the commit this page was built from.
Sipm: common questions
How big is the Sipm PCB?
The Sipm measures 25.3 × 25.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Sipm?
26 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Sipm design files?
From the mgiacomelli/sipm repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Sipm design in my own project?
The repository has no license, so all rights stay with mgiacomelli. Use it as a reference, and ask the author before reusing the design.
