LED Torch

mhered·KiCAD_udemy_course·projects/01_LED_torch/LED_torch_v03.kicad_pcb

LED Torch PCB layout, top view — open source board by mhered

About the LED Torch PCB

LED Torch is an open source PCB design by mhered, published on GitHub. It is a 2-layer board measuring 61.1 × 26.3 mm, with 4 components from 4 distinct parts.

By type, the board carries 1 battery holder, 1 switch, 1 diode and 1 resistor.

From the project

My notes on the course "PCB design with KiCAD - updated for KiCAD 9" by Dr Peter Dalmaris in Udemy

make it clip snuggly while allowing for tolerances, (especially on the soldered components) is fun

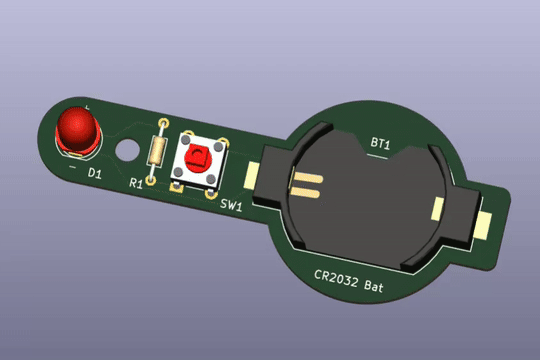

LED Torch, from the project README
From the project README

LED Torch bill of materials (BOM)

4 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
CR2032 Bat
BT1
1
SW_DPDT_x2
SW1
1
LED
D1
1
RC0402FR-074K7L
R
Yageo
R1

LED Torch design files

The KiCad project lives in the mhered/KiCAD_udemy_course repository on GitHub; these links point at the commit this page was built from.

LED Torch: common questions

How big is the LED Torch PCB?

The LED Torch measures 61.1 × 26.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LED Torch?

4 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the LED Torch design files?

From the mhered/KiCAD_udemy_course repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the LED Torch design in my own project?

The repository has no license, so all rights stay with mhered. Use it as a reference, and ask the author before reusing the design.
