Universal-Taster
About the Universal-Taster PCB
Universal-Taster is an open source Silicon Labs PCB design by basilfx, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 30 × 30 mm, with 55 components from 30 distinct parts.
Its main chip is the EFM32PG12B500, from the Silicon Labs family. Other key parts include the NCN5121 and MX25R8035F. By type, the board carries 19 capacitors, 13 resistors, 11 diodes, 4 connectors, 3 ICs and 3 crystals.
From the project

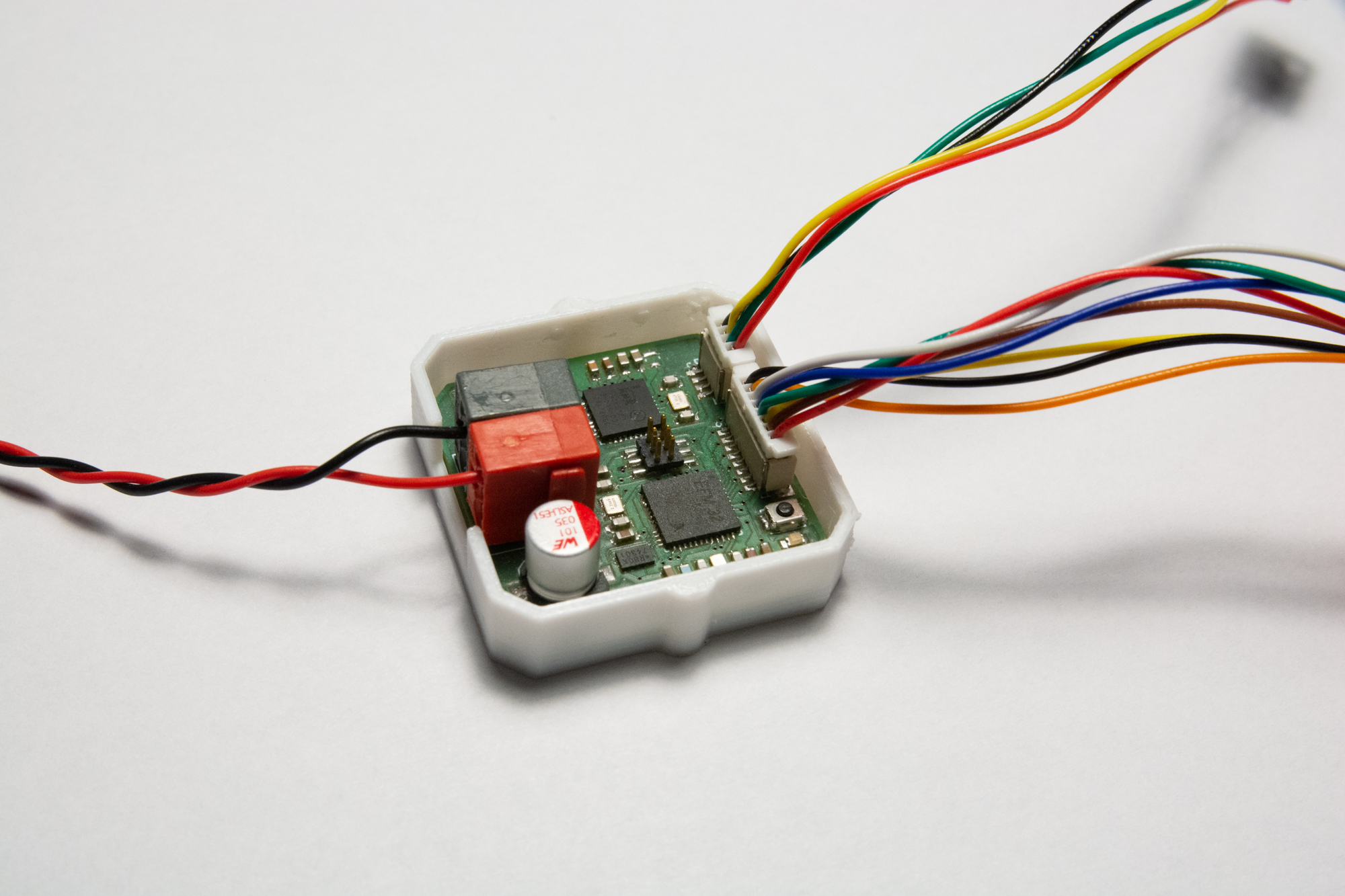

DIY universal taster actor for the KNX bus.
Main components on the Universal-Taster
Universal-Taster bill of materials (BOM)
55 components, 30 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | EFM32PG12B500 | Infineon_MLPQ-48-1EP_7x7mm_P0.5mm_Pad5.15x5.15mm | U1 |
| 1 | NCN5121 | QFN-40-1EP_6x6mm_P0.5mm_EP4.6x4.6mm | U2 |
| 1 | MX25R8035F | USON-8_2x3mm_P0.5mm | U3 |
| 1 | 32.768kHz | Crystal_SMD_2012-2Pin_2.0x1.2mm | Y1 |
| 1 | 40MHz | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y2 |
| 1 | 16MHz | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y3 |
| 1 | I2C | JST_SH_BM04B-SRSS-TB_1x04-1MP_P1.00mm_Vertical | J1 |
| 1 | INTERFACE | JST_SH_BM08B-SRSS-TB_1x08-1MP_P1.00mm_Vertical | J2 |
| 1 | KNX_KLEMME | KNX_KLEMME | J3 |
| 1 | JTAG | PinHeader_2x03_P1.27mm_Vertical_SMD | J4 |
| 1 | PROG | SW_SPST_B3U-1000P | SW1 |
| 1 | LED | LED_0603_1608Metric | D1 |
| 1 | D | D_SMB | D2 |
| 1 | D_TVS | D_SMB | D3 |
| 8 | D_TVS | D_0603_1608Metric | D4, D5, D6, D7, D8, D9, D10, D11 |
| 1 | 220µH | L_Bourns-SRR5028 | L1 |
| 2 | 18pF | C_0603_1608Metric | C1, C2 |
| 1 | 1µF | C_0603_1608Metric | C3 |
| 2 | 20pF | C_0603_1608Metric | C4, C5 |
| 2 | 10pF | C_0603_1608Metric | C6, C7 |
Show 10 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 7 | 100nF | C_0603_1608Metric | C8, C9, C10, C13, C16, C18, C19 |
| 1 | 100µF | CP_Elec_6.3x7.7 | C11 |
| 1 | 1µF | C_0805_2012Metric | C12 |
| 1 | 220nF | C_0603_1608Metric | C14 |
| 1 | 47nF | C_0603_1608Metric | C15 |
| 1 | 10µF | C_0603_1608Metric | C17 |
| 7 | 680 | R_0603_1608Metric | R1, R4, R5, R6, R7, R8, R9 |
| 1 | 27 | R_2512_6332Metric | R2 |
| 1 | 1 | R_0603_1608Metric | R3 |
| 4 | 0 | R_0603_1608Metric | R10, R11, R12, R13 |
Universal-Taster design files
The KiCad project lives in the basilfx/KNX-Universal-Taster repository on GitHub; these links point at the commit this page was built from.
Universal-Taster: common questions
What microcontroller does the Universal-Taster use?
The Universal-Taster is built around the EFM32PG12B500, from the Silicon Labs family.
How big is the Universal-Taster PCB?
The Universal-Taster measures 30 × 30 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Universal-Taster?
55 components, from 30 distinct parts. The full bill of materials is listed on this page.
Where can I download the Universal-Taster design files?
From the basilfx/KNX-Universal-Taster repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Universal-Taster design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
Can I test firmware for the Universal-Taster without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Silicon Labs firmware against it before you order a PCB.
