Yast hw
About the Yast hw PCB

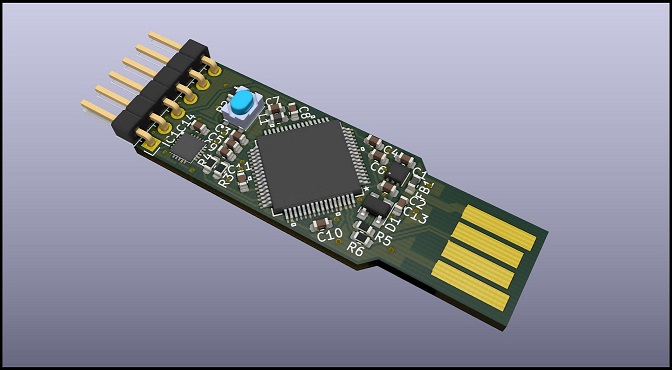

Yast hw is an open source PCB design by mimok, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 46 × 15.2 mm, with 26 components from 16 distinct parts.
Other key parts include the SE050C1HQ1/Z01SCZ, LPC55S28JBD64 and TLV75533PDRV. By type, the board carries 13 capacitors, 5 resistors, 3 ICs, 2 inductors, 1 connector and 1 switch.
From the project
Hardware source files of the YAST security token from OTS Security
From my point of view this is a real problem. I agree some tokens based on secure elements are not exempt from vulnerabilities like the Titan security key from Google. In fact, this token is based on a pretty old secure element A7005 from NXP and therefore things which were secure almost ten years ago are no more secure now. However if a old secure element is now vulnerable (but more than 4 months of work were needed to discover and exploit the vulnerability), old non secure chips are far more vulnerable. For example, it is possible to extract the firmware from an STM32F1 chip using a pure…
Main components on the Yast hw
Yast hw bill of materials (BOM)
26 components, 16 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SE050C1HQ1/Z01SCZ SE050C1HQ1_Z01SCZ | QFN40P300X300X33-21N-D | IC1 |
| 1 | LPC55S28JBD64 | LPC55S28JBD64 | U1 |
| 1 | TLV75533PDRV | WSON-6-1EP_2x2mm_P0.65mm_EP1x1.6mm | U2 |
| 1 | Conn_01x06 | PinHeader_1x06_P2.54mm_Horizontal | J2 |
| 1 | PTS810SJK250SMTRLFS PTS810 SJK 250 SMTR LFS | PTS810SJG250SMTRLFS | SW1 |
| 1 | PRTR5V0U2X | SOT-143 | D1 |
| 1 | MI0603L221R-10 221R | L_0603_1608Metric | FB1 |
| 1 | MLZ1608M4R7WT 4.7uH | L_0603_1608Metric | L1 |
| 2 | EMK107BJ105KA-T 1uF | C_0603_1608Metric | C1, C2 |
| 1 | 885012006021 47pF | C_0603_1608Metric | C3 |
| 7 | 0603YC104MAT4A 100nF | C_0603_1608Metric | C4, C5, C6, C8, C10, C11, C14 |
| 2 | EMK107BBJ106MA-T 10uF | C_0603_1608Metric | C7, C9 |
| 1 | EMK107BJ225KA-T 2.2uF | C_0603_1608Metric | C13 |
| 1 | CRCW060310K0JNEBC 10k | R_0603_1608Metric | R2 |
| 2 | RC0603FR-07560RL 560R | R_0603_1608Metric | R3, R4 |
| 2 | CRCW060333R0FKEAC 33R | R_0603_1608Metric | R5, R6 |
Yast hw design files
The KiCad project lives in the mimok/yast-hw repository on GitHub; these links point at the commit this page was built from.
- Layouttots.kicad_pcb
- BOMdocs/BOM.csv
Yast hw: common questions
How big is the Yast hw PCB?
The Yast hw measures 46 × 15.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Yast hw?
26 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Yast hw design files?
From the mimok/yast-hw repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Yast hw design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which mimok chose for the repository.
