Speeduino mini-2c-SMD
About the Speeduino mini-2c-SMD PCB

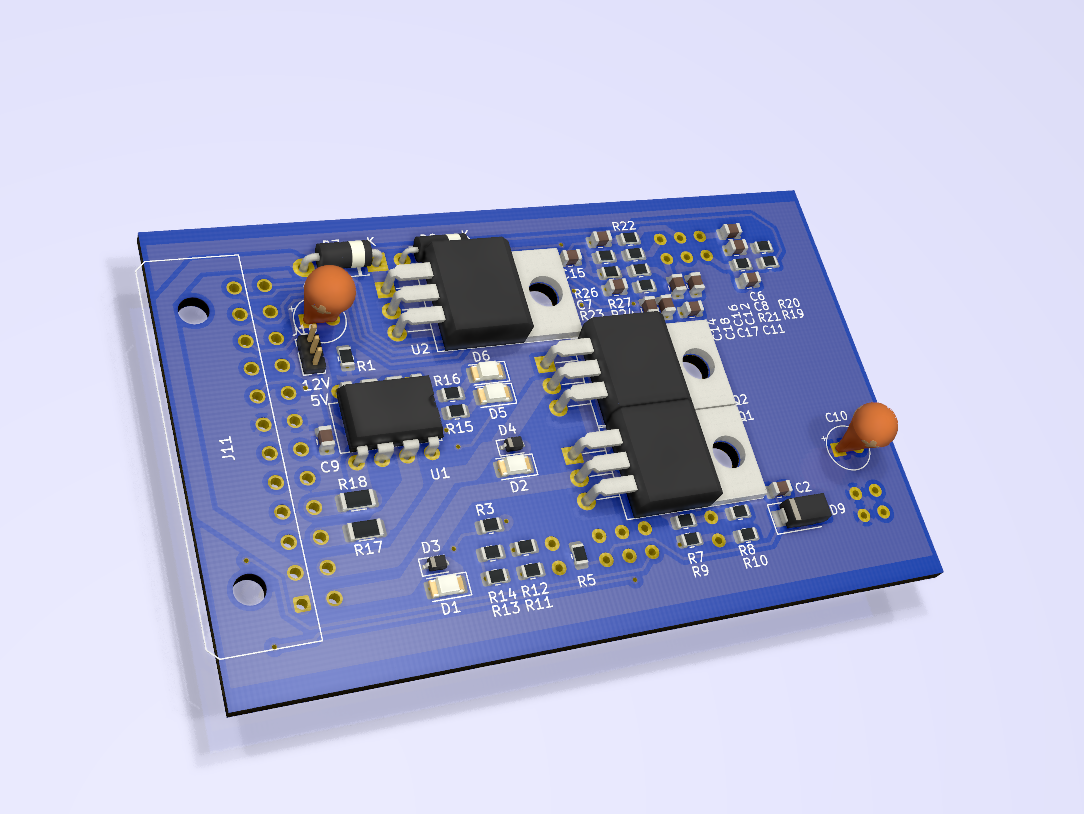

Speeduino mini-2c-SMD is an open source PCB design by MIsfitMatty, published on GitHub. It is a 2-layer board measuring 75.9 × 48.5 mm, with 58 components from 27 distinct parts.
Other key parts include the TC4424EPA, LM2940T and Mega2560-PRO. By type, the board carries 25 resistors, 17 capacitors, 9 diodes, 3 ICs, 2 transistors and 2 connectors.
From the project
Updated verison of: https://github.com/digmorepaka/speeduino-mini-2-channel
Main components on the Speeduino mini-2c-SMD
Speeduino mini-2c-SMD bill of materials (BOM)
58 components, 27 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TC4424EPA | DIP-8_W7.62mm | U1 |
| 1 | LM2940T | TO-220-3_Horizontal_TabDown | U2 |
| 1 | Mega2560-PRO | Mega2560-PRO-Stripped | U3 |
| 2 | STP75N04-TO220 | TO-220-3_Horizontal_TabDown | Q1, Q2 |
| 1 | IGN Voltage sel | PinHeader_1x03_P1.27mm_Vertical | J10 |
| 1 | Molex MicroFit 3.0 43045-2400/Amphenol ICC 10127720-242LF | Molex_Micro-Fit_3.0_43045-2400_2x12_P3.00mm_Horizontal | J11 |
| 4 | LED | LED_1206_3216Metric | D1, D2, D5, D6 |
| 2 | 1N4004 | D_SOD-323 | D3, D4 |
| 1 | 1N5818 | D_DO-41_SOD81_P7.62mm_Horizontal | D7 |
| 1 | 1N5919BG | D_A-405_P7.62mm_Horizontal | D8 |
| 1 | 5V1 | D_SMA | D9 |
| 1 | 0.01uF | C_0805_2012Metric | C2 |
| 1 | 1uF | C_0805_2012Metric | C3 |
| 1 | 10uF 35V | CP_Radial_Tantal_D5.0mm_P2.50mm | C4 |
| 2 | 0.1uF 50V | C_0805_2012Metric | C5, C9 |
| 1 | 0.3uF | C_0805_2012Metric | C6 |
| 5 | 0.1uF | C_0805_2012Metric | C7, C8, C13, C14, C15 |
| 1 | 47uF 10V | CP_Radial_Tantal_D5.0mm_P2.50mm | C10 |
| 5 | 0.22uF | C_0805_2012Metric | C11, C12, C16, C17, C18 |
| 7 | 1K | R_0805_2012Metric | R1, R5, R7, R9, R11, R12, R20 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 680R | R_0805_2012Metric | R2, R3 |
| 4 | 100K | R_0805_2012Metric | R8, R10, R13, R14 |
| 2 | 2.4K | R_0805_2012Metric | R15, R16 |
| 2 | 160R 2W | R_1206_3216Metric | R17, R18 |
| 1 | 3.9K | R_0805_2012Metric | R19 |
| 5 | 470R | R_0805_2012Metric | R21, R22, R24, R25, R27 |
| 2 | 2.49K | R_0805_2012Metric | R23, R26 |
Speeduino mini-2c-SMD design files
The KiCad project lives in the MIsfitMatty/speeduino-mini-2c-SMD repository on GitHub; these links point at the commit this page was built from.
Speeduino mini-2c-SMD: common questions
How big is the Speeduino mini-2c-SMD PCB?
The Speeduino mini-2c-SMD measures 75.9 × 48.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Speeduino mini-2c-SMD?
58 components, from 27 distinct parts. The full bill of materials is listed on this page.
Where can I download the Speeduino mini-2c-SMD design files?
From the MIsfitMatty/speeduino-mini-2c-SMD repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Speeduino mini-2c-SMD design in my own project?
The repository has no license, so all rights stay with MIsfitMatty. Use it as a reference, and ask the author before reusing the design.
