Unix60
About the Unix60 PCB
Unix60 is an open source PCB design by mkdl, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 285.8 × 107.2 mm, with 133 components from 13 distinct parts.
Other key parts include the ProMicro. By type, the board carries 67 relays, 63 diodes, 1 IC, 1 connector and 1 switch.
It belongs with the keyboards designs in this gallery.
From the project

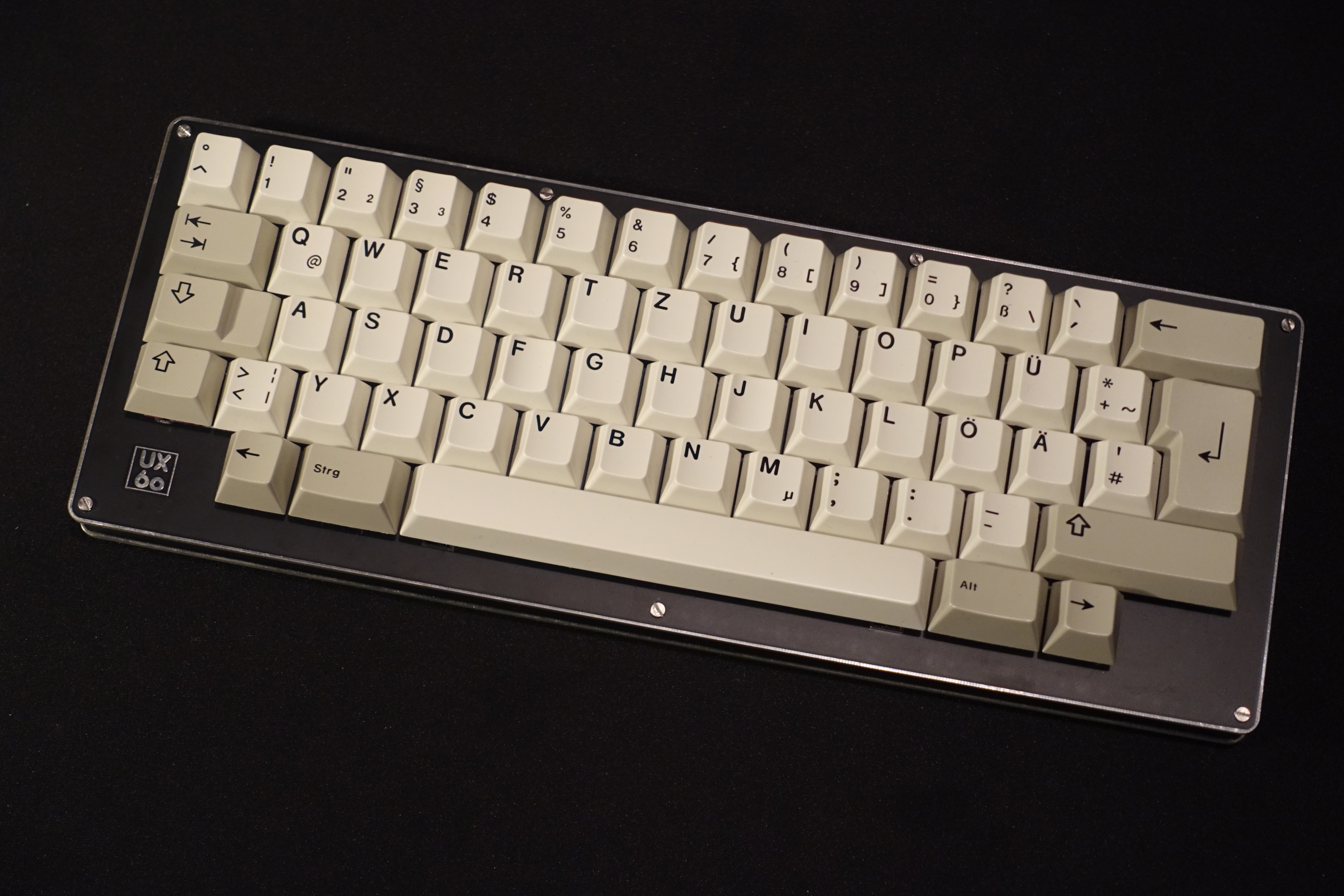

HHKB Layouted and QMK compatible keyboard built from FR4
If you have any questions or need help, please join the FR4 Discord: https://discord.gg/z7mpQX5YJQ
Main components on the Unix60
Unix60 bill of materials (BOM)
133 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro | ProMicro | U1 |
| 1 | Expansion | PinSocket_1x04_P2.54mm_Vertical | J1 |
| 53 | KEYSW | MXOnly-1U-NoLED | K1, K2, K3, K4, K5, K6, K7, K8 +45 |
| 1 | KEYSW | MXOnly-2U-NoLED | K15 |
| 4 | KEYSW | MXOnly-1.5U-NoLED | K17, K30, K60, K62 |
| 2 | KEYSW | MXOnly-1.75U-NoLED | K31, K57-2 |
| 2 | KEYSW | MXOnly-1.25U-NoLED | K31-2, K45-2 |
| 2 | KEYSW | MXOnly-2.25U-NoLED | K44, K45 |
| 1 | KEYSW | MXOnly-ISO-ROTATED-ReversedStabilizers-NoLED | K44-2 |
| 1 | KEYSW | MXOnly-2.75U-NoLED | K57 |
| 1 | KEYSW | MXOnly-7U-NoLED | K61 |
| 1 | Reset | SW_SPST_TL3342 | SW1 |
| 63 | D | D_SOD123_axial-dual | D1, D2, D3, D4, D5, D6, D7, D8 +55 |
Unix60 design files
The KiCad project lives in the mkdl/Unix60 repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/unix60pcb.kicad_pcb
Unix60: common questions
How big is the Unix60 PCB?
The Unix60 measures 285.8 × 107.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Unix60?
133 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Unix60 design files?
From the mkdl/Unix60 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Unix60 design in my own project?
Yes, under the terms of its GPL-3.0 license, which mkdl chose for the repository.
