ACOMP01

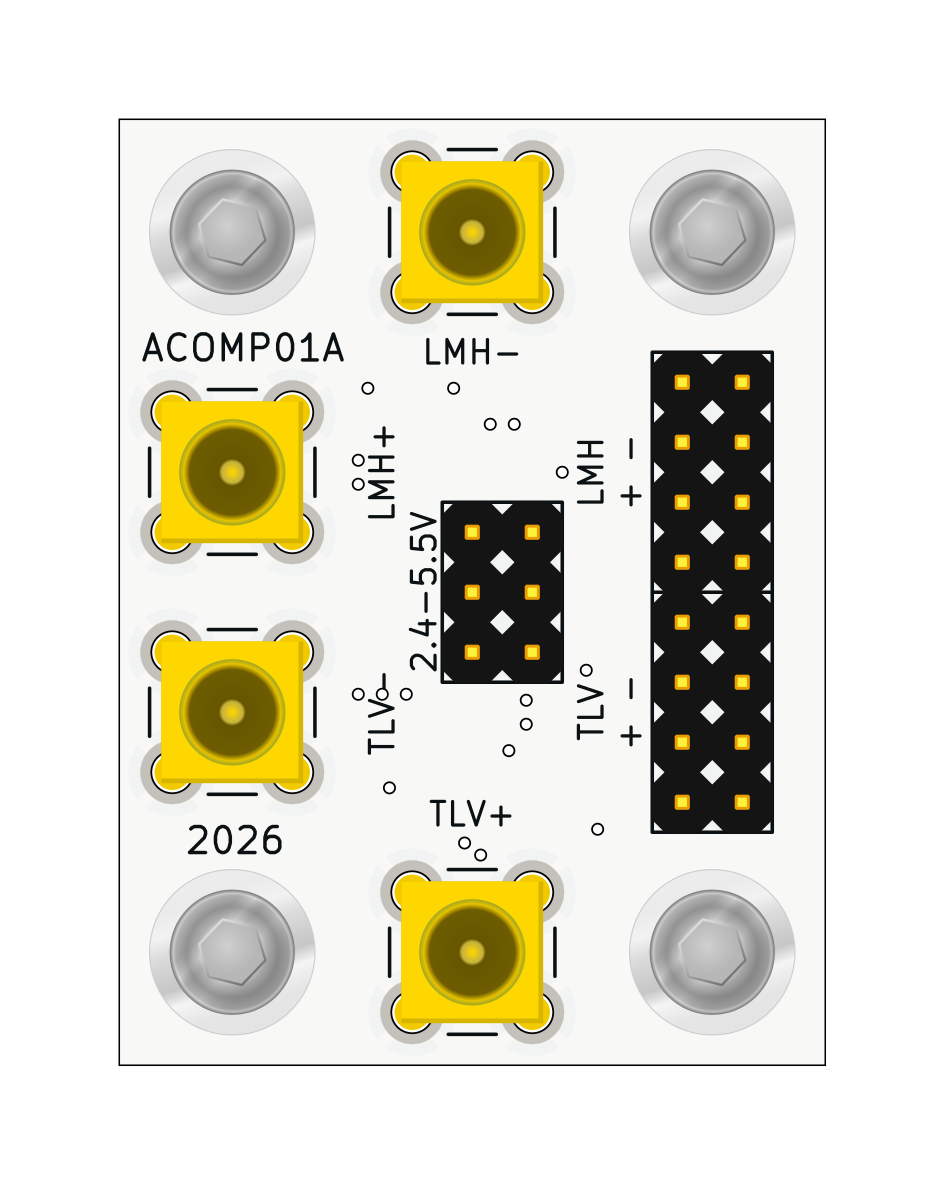

About the ACOMP01 PCB
ACOMP01 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 30 × 40.1 mm, with 16 components from 10 distinct parts.
Other key parts include the TLV3604DCKR and LMH7220MK/NOPB. By type, the board carries 7 connectors, 4 capacitors, 2 ICs, 2 resistors and 1 diode.
It belongs with the test & measurement designs in this gallery.
From the project
Fast analog comparator module
The ACOMP01 module is a high-speed dual comparator board with differential LVDS outputs. It is designed for fast signal discrimination in nanosecond-scale timing systems. Each comparator features coaxial MCX input connectors and differential output for integration into high-speed digital acquisition or timing logic circuits.
- High-speed pulse discrimination - Oscilloscope triggering - LIDAR and ToF sensing - Nuclear and particle physics detectors - Time interval measurement systems
Main components on the ACOMP01
ACOMP01 bill of materials (BOM)
16 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TLV3604DCKR | SOT-363_SC-70-6 | IC1 |
| 1 | LMH7220MK/NOPB LMH7220MK_NOPB | SOT-23-6 | IC2 |
| 1 | 2,4 - 5,5V | Straight_2x03 | J1 |
| 4 | Conn_Coaxial | SMA6251A13G50 | J2, J3, J4, J5 |
| 2 | HEADER_2x04_PARALLEL | Straight_2x04 | J6, J7 |
| 1 | BZV55C-5,6V | D_SMA | D1 |
| 1 | 10UF 10uF | C_0805_2012Metric | C1 |
| 1 | 1UF 1uF | C_0805_2012Metric | C2 |
| 2 | 100nF | C_0805_2012Metric | C3, C4 |
| 2 | DNF | R_0805_2012Metric | R1, R2 |
ACOMP01 design files
The KiCad project lives in the mlab-modules/ACOMP01 repository on GitHub; these links point at the commit this page was built from.
ACOMP01: common questions
How big is the ACOMP01 PCB?
The ACOMP01 measures 30 × 40.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ACOMP01?
16 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ACOMP01 design files?
From the mlab-modules/ACOMP01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ACOMP01 design in my own project?
Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
