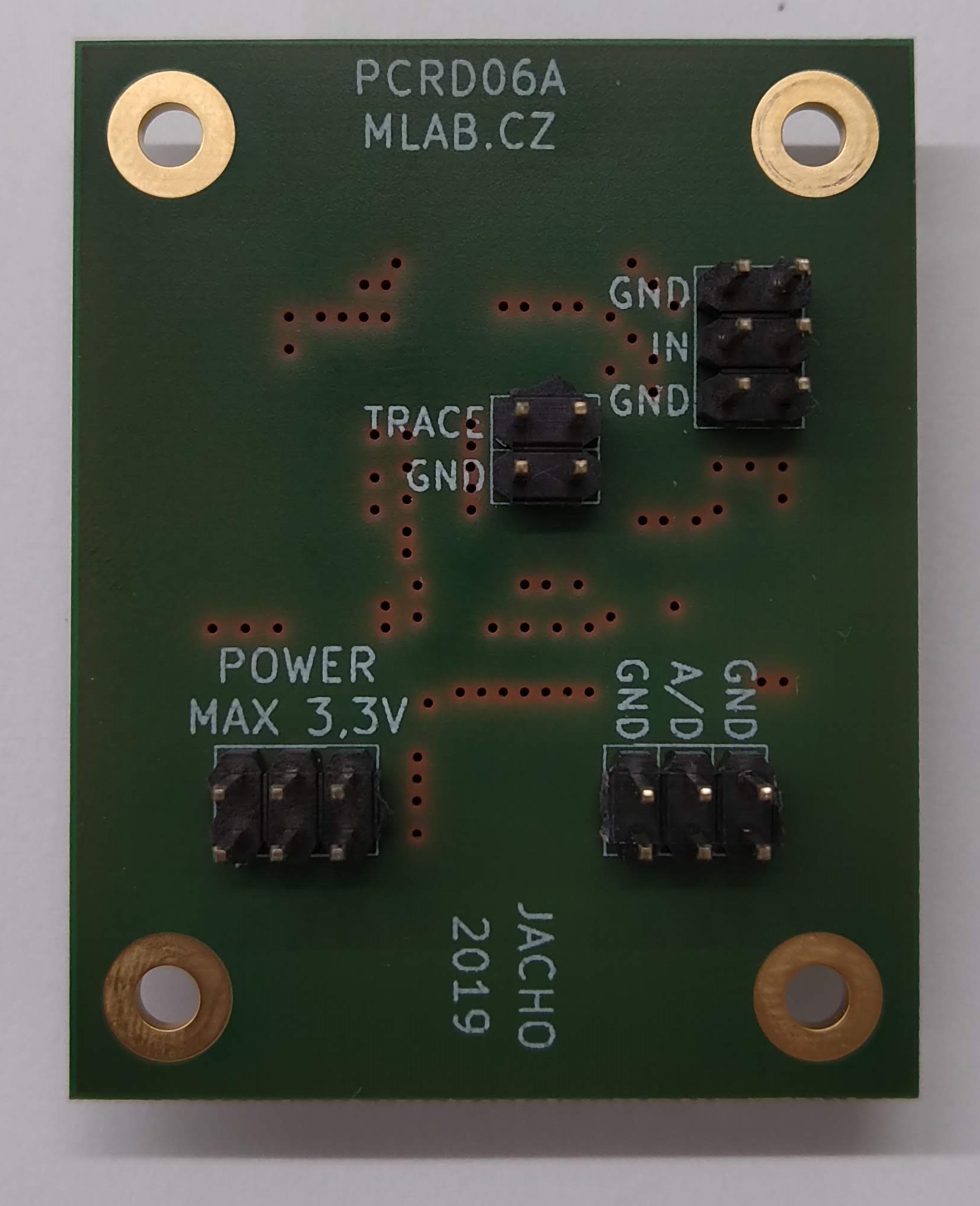

PCRD06
About the PCRD06 PCB
PCRD06 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 50.3 × 40.1 mm, with 29 components from 18 distinct parts.
Other key parts include the TS3021ILT, AD8691 and TS5A4594. By type, the board carries 11 capacitors, 7 connectors, 6 resistors, 3 ICs, 1 module and 1 diode.
From the project
Sample and hold circuit for photomultiplier pulse signal processig
Signal follower with analog memory. It is a circuit equivalent to a sample-hold circuit triggered by a falling edge of signal or a circuit equivalent to a peak detector. The PCRD06A module is normally used in combination with SiPM based scintillation detector.
Examples of detectors that could be connected to the PCRD analog-backend.
The circuit is able to operate in multiple modes. The operation mode depends on the logic used to control the circuit.
Main components on the PCRD06
PCRD06 bill of materials (BOM)
29 components, 18 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TS3021ILT | SOT-23-5_HandSoldering | U1 |
| 1 | AD8691 | TSOT-23-5_HandSoldering | U2 |
| 1 | TS5A4594 | SOT-23-5_HandSoldering | U5 |
| 1 | HOLE | Laird_Technologies_BMI-S-204-F_32.00x32.00mm | M5 |
| 1 | 3.6V | Straight_2x03 | J1 |
| 5 | HEADER_2x01_PARALLEL | Straight_2x01 | J2, J3, J5, J6, J7 |
| 1 | HEADER_2x03_PARALLEL | Straight_2x03 | J8 |
| 1 | M4 | Diode-SMA_Standard | D1 |
| 1 | 47uF | TantalC_SizeC_Reflow | C1 |
| 1 | 220pF | SMD-0805 | C2 |
| 4 | 10uF | SMD-0805 | C4, C7, C8, C9 |
| 3 | 100nF | SMD-0805 | C12, C13, C14 |
| 1 | 100pF FILM,PPS | SMD-0805 | C19 |
| 1 | 1uF | FIR_0805 | C21 |
| 1 | 10R | SMD-0805 | R1 |
| 3 | 100 | SMD-0805 | R3, R4, R5 |
| 1 | 1k | SMD-0805 | R12 |
| 1 | 100R | SMD-0805 | R13 |
PCRD06 design files
The KiCad project lives in the mlab-modules/PCRD06 repository on GitHub; these links point at the commit this page was built from.
- Layouthw/sch_pcb/PCRD06.kicad_pcb
- Schematichw/sch_pcb/PCRD06.kicad_sch
PCRD06: common questions
How big is the PCRD06 PCB?
The PCRD06 measures 50.3 × 40.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PCRD06?
29 components, from 18 distinct parts. The full bill of materials is listed on this page.
Where can I download the PCRD06 design files?
From the mlab-modules/PCRD06 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the PCRD06 design in my own project?
Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
