Smart-Energy-Meter-With-Load-Monitoring

moksh-pcb-design·Smart-Energy-Meter-With-Load-Monitoring

Smart-Energy-Meter-With-Load-Monitoring PCB layout, top view — open source board by moksh-pcb-design

About the Smart-Energy-Meter-With-Load-Monitoring PCB

Smart-Energy-Meter-With-Load-Monitoring is an open source PCB design by moksh-pcb-design, published on GitHub. It is a 2-layer board measuring 155.5 × 107.5 mm, with 13 components from 9 distinct parts.

By type, the board carries 4 connectors, 2 switches, 2 diodes and 2 resistors.

It belongs with the displays & leds, iot & wireless and sensors designs in this gallery.

From the project

ESP32-based Smart Energy Meter with Load Monitoring featuring voltage, current, power and energy monitoring, relay-based load control, LCD display, web dashboard and custom KiCad PCB design.

Smart Energy Meter with Load Monitoring is an ESP32-based IoT energy monitoring and load control system designed to measure electrical parameters, monitor energy consumption, calculate electricity cost, and provide remote load control through a web dashboard.

The project combines embedded firmware development, hardware prototyping, custom PCB design, and web-based monitoring into a complete smart energy management solution.

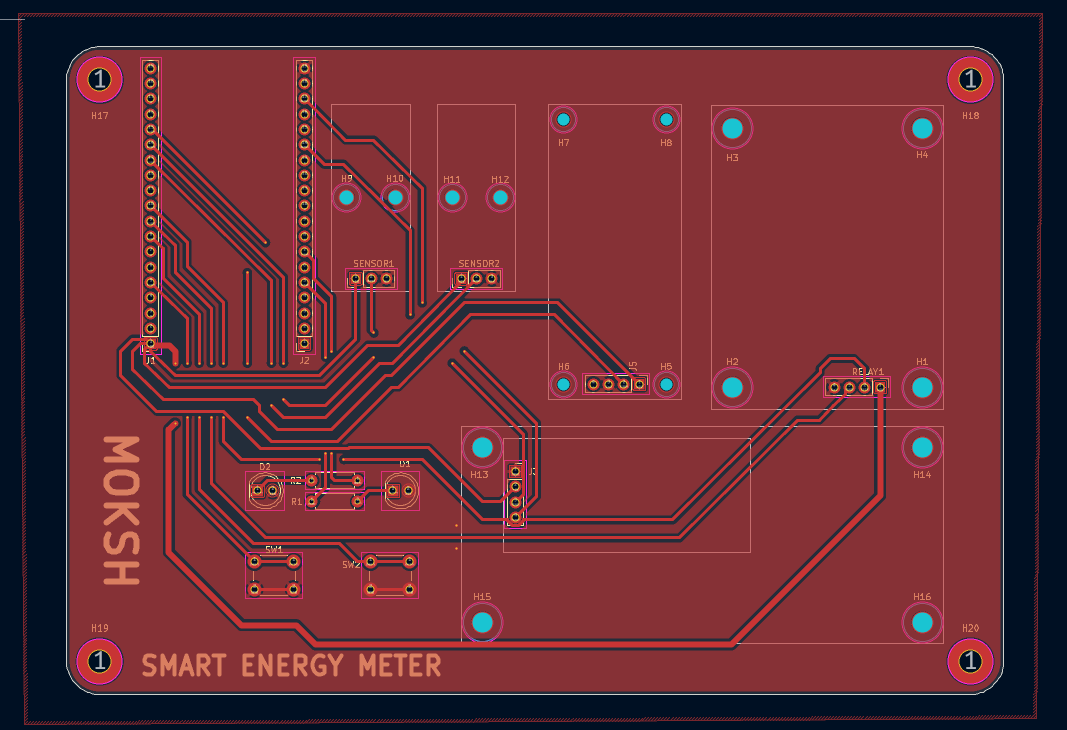

Smart-Energy-Meter-With-Load-Monitoring, from the project README
From the project README

Smart-Energy-Meter-With-Load-Monitoring bill of materials (BOM)

13 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
CONN_01X19_PIN
Conn_01x19_Pin
J1, J2
1
CONN_01X04_PIN
Conn_01x04_Pin
J3
1
CONN_01X04_PIN
Conn_01x04_Pin
J5
1
CONN_01X04_PIN
Conn_01x04_Pin
RELAY1
2
CONN_01X03_PIN
Conn_01x03_Pin
SENSOR1, SENSOR2
2
SW_Push
SW1, SW2
1
GREEN
D1
1
RED
D2
2
1K
R1, R2

Smart-Energy-Meter-With-Load-Monitoring design files

The KiCad project lives in the moksh-pcb-design/Smart-Energy-Meter-With-Load-Monitoring repository on GitHub; these links point at the commit this page was built from.

Smart-Energy-Meter-With-Load-Monitoring: common questions

How big is the Smart-Energy-Meter-With-Load-Monitoring PCB?

The Smart-Energy-Meter-With-Load-Monitoring measures 155.5 × 107.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Smart-Energy-Meter-With-Load-Monitoring?

13 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Smart-Energy-Meter-With-Load-Monitoring design files?

From the moksh-pcb-design/Smart-Energy-Meter-With-Load-Monitoring repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Smart-Energy-Meter-With-Load-Monitoring design in my own project?

The repository has no license, so all rights stay with moksh-pcb-design. Use it as a reference, and ask the author before reusing the design.
