About the Coconut PCB

Coconut is an open source AVR/Arduino PCB design by morikoudayo, published on GitHub. It is a 2-layer board measuring 212.6 × 79.2 mm, with 77 components from 7 distinct parts.

Its main chip is the Sparkfun_Pro_Micro, from the AVR/Arduino family.

It belongs with the keyboards designs in this gallery.

From the project

40％ Keyboard

This project was developped using a lot of software, etc. and I couldn't understand license of all. If there are any infringement, please contact me.

As shown above, this project is basically licensed under MIT license, but The files in /qmk-firmware and firmware.hex in releases page are licensed under GPL v3 license.

Sharing gerber_nonfree.zip in releases page is prohibited.

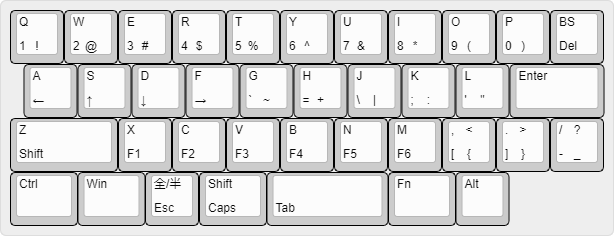

Coconut, from the project README
From the project README

Coconut bill of materials (BOM)

77 components, 7 distinct parts.

QtyPartRefs
38
D
D_0, D_1, D_2, D_3, D_4, D_5, D_6, D_7 +30
1
Sparkfun_Pro_Micro
U_1
31
KEYSW
K_0, K_1, K_2, K_3, K_4, K_5, K_6, K_7 +23
1
KEYSW
K_20
1
KEYSW
K_21
4
KEYSW
K_31, K_32, K_34, K_36
1
KEYSW
K_35

Coconut design files

The KiCad project lives in the morikoudayo/coconut repository on GitHub; these links point at the commit this page was built from.

Coconut: common questions

What microcontroller does the Coconut use?

The Coconut is built around the Sparkfun_Pro_Micro, from the AVR/Arduino family.

How big is the Coconut PCB?

The Coconut measures 212.6 × 79.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Coconut?

77 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Coconut design files?

From the morikoudayo/coconut repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Coconut design in my own project?

The repository has no license, so all rights stay with morikoudayo. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Coconut without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
