2023-2024 4GP NGO-TRAN
About the 2023-2024 4GP NGO-TRAN PCB
2023-2024 4GP NGO-TRAN is an open source PCB design by MOSH-Insa-Toulouse, published on GitHub under the MIT license. It is a 2-layer board measuring 68.6 × 53.3 mm, with 19 components from 17 distinct parts.
Other key parts include the LTC1050, Capteur_Graphite, Bluetooth, MCP41050 and OLED. By type, the board carries 6 ICs, 5 resistors, 4 connectors and 3 capacitors.
From the project
INSA 4GP MOSH Project - NGO/TRAN

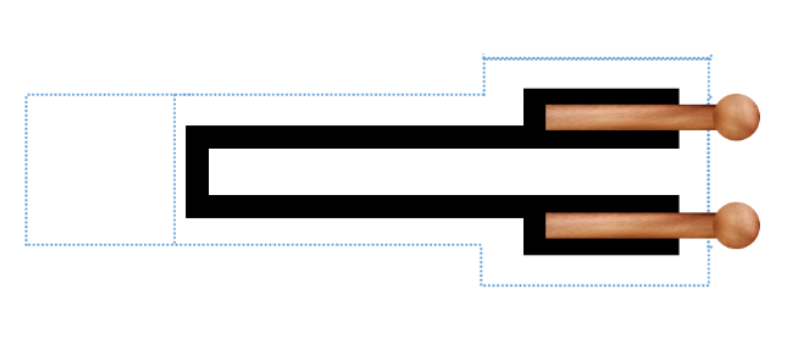

Le principe de fonctionnement repose sur l'observation que la déformation du papier entraîne une variation du nombre de particules de graphite interconnectées. Cette modification de la structure granulaire du graphite se traduit par une variation de la résistance et de la conductance du capteur. En exploitant cette propriété, il devient possible de remonter à la déformation subie, à l'instar d'une jauge de contrainte classique.
Main components on the 2023-2024 4GP NGO-TRAN
2023-2024 4GP NGO-TRAN bill of materials (BOM)
19 components, 17 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LTC1050 | LTC1050 | U1 |
| 1 | Capteur_Graphite | Capteur Graphite | U2 |
| 1 | Bluetooth | Bluetooth HC05-20 | U3 |
| 1 | MCP41050 | Pot_Digital | U4 |
| 1 | OLED | Ecran OLED | U5 |
| 1 | Encode_Rota | Encodeur rotatoire | U6 |
| 1 | Power | PinSocket_1x08_P2.54mm_Vertical | J1 |
| 1 | Digital/PWM | PinSocket_1x10_P2.54mm_Vertical | J2 |
| 1 | Analog | PinSocket_1x06_P2.54mm_Vertical | J3 |
| 1 | Digital/PWM | PinSocket_1x08_P2.54mm_Vertical | J4 |
| 1 | Flex_sensor | Flex | Flex_Sensor1 |
| 2 | 100n | CP_Radial_Tantal_D5.5mm_P2.50mm | C1, C3 |
| 1 | 1u | C_Rect_L7.0mm_W4.5mm_P5.00mm | C2 |
| 1 | 10k | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R1 |
| 2 | 100k | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R3, R4 |
| 1 | 1k | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R5 |
| 1 | 30k | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R7 |
2023-2024 4GP NGO-TRAN design files
The KiCad project lives in the MOSH-Insa-Toulouse/2023-2024_4GP_NGO-TRAN repository on GitHub; these links point at the commit this page was built from.
- LayoutKICAD/project_kicad.kicad_pcb
- SchematicKICAD/project_kicad.kicad_sch
2023-2024 4GP NGO-TRAN: common questions
How big is the 2023-2024 4GP NGO-TRAN PCB?
The 2023-2024 4GP NGO-TRAN measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 2023-2024 4GP NGO-TRAN?
19 components, from 17 distinct parts. The full bill of materials is listed on this page.
Where can I download the 2023-2024 4GP NGO-TRAN design files?
From the MOSH-Insa-Toulouse/2023-2024_4GP_NGO-TRAN repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the 2023-2024 4GP NGO-TRAN design in my own project?
Yes, under the terms of its MIT license, which MOSH-Insa-Toulouse chose for the repository.
