Dual swing gate controller

motivemachine·dual_swing_gate_controller·hardware/DrivewayGateControl.kicad_pcb

Dual swing gate controller PCB layout, top view — open source AVR/Arduino board by motivemachine
Simulate this board

About the Dual swing gate controller PCB

Dual swing gate controller is an open source AVR/Arduino PCB design by motivemachine, published on GitHub under the MIT license. It is a 2-layer board measuring 99.7 × 99.1 mm, with 50 components from 29 distinct parts.

Its main chip is the ArduinoProMini_a, from the AVR/Arduino family. Other key parts include the AMS1117-3.3, LoRa_Ra-02 and INA219BIDCNR. By type, the board carries 10 resistors, 8 diodes, 8 capacitors, 6 connectors, 5 ICs and 4 transistors.

It belongs with the rf & radio, robotics & motion and power & battery designs in this gallery.

From the project

A relay-driven dual DC motor controller for a double-swing gate opener. Uses Arduino and LoRa. This repo is a mirror for:

Having built a custom driveway gate and hinge setup I found myself shocked at what a quality dual-swing gate opener costs these days. More importantly, they have rather a lack of customization available in how you control or communicate with them, so I've set out to build my own with a pair of 12v linear actuators and a Semtech SX1287 LORA radio module. This is a work in progress.

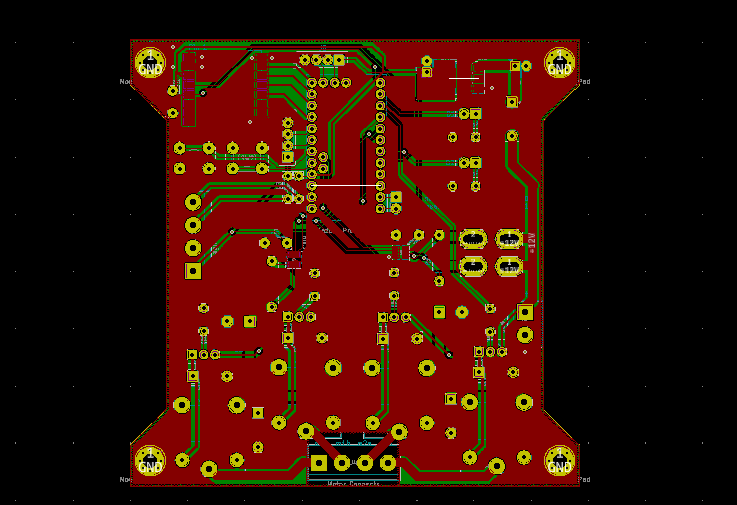

Dual swing gate controller, from the project README
From the project README

Main components on the Dual swing gate controller

AMS1117-3.3ArduinoProMini_aLoRa_Ra-02INA219BIDCNR

Dual swing gate controller bill of materials (BOM)

50 components, 29 distinct parts.

QtyPartRefs
1
AMS1117-3.3
U1
1
ArduinoProMini_a
U2
1
LoRa_Ra-02
U3
2
INA219BIDCNR
U4, U5
4
2N3904
Q1, Q2, Q3, Q4
1
serial_header
J1
1
magnetometer
J2
1
power
J3
1
Motor_Connects
J4
1
gpio1
J5
1
gpio2
J6
1
D
1n4001
2
Fuse
F1, F2
1
relay1
K1
1
relay2
K2
1
relay3
K3
1
relay4
K4
1
close
SW1
1
open
SW2
2
LED
D1, D2
Show 9 more
QtyPartRefs
6
1n4001
D3, D4, D5, D6, D7, D9
1
22uf
C1
4
0.1uf
C3, C4, C6, C8
2
470uf
C5, C7
1
100uf
C9
2
R
R1, R2
2
3k3
R3, R4
4
1k
R5, R6, R8, R9
2
0.1
R7, R10

Dual swing gate controller design files

The KiCad project lives in the motivemachine/dual_swing_gate_controller repository on GitHub; these links point at the commit this page was built from.

Dual swing gate controller: common questions

What microcontroller does the Dual swing gate controller use?

The Dual swing gate controller is built around the ArduinoProMini_a, from the AVR/Arduino family.

How big is the Dual swing gate controller PCB?

The Dual swing gate controller measures 99.7 × 99.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Dual swing gate controller?

50 components, from 29 distinct parts. The full bill of materials is listed on this page.

Where can I download the Dual swing gate controller design files?

From the motivemachine/dual_swing_gate_controller repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Dual swing gate controller design in my own project?

Yes, under the terms of its MIT license, which motivemachine chose for the repository.

Can I test firmware for the Dual swing gate controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
