About the Numpad PCB
Numpad is an open source PCB design by mouse625, published on GitHub under the MIT license. It is a 2-layer board measuring 67.1 × 85.7 mm, with 21 components from 3 distinct parts.
Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 10 switches, 10 diodes and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project

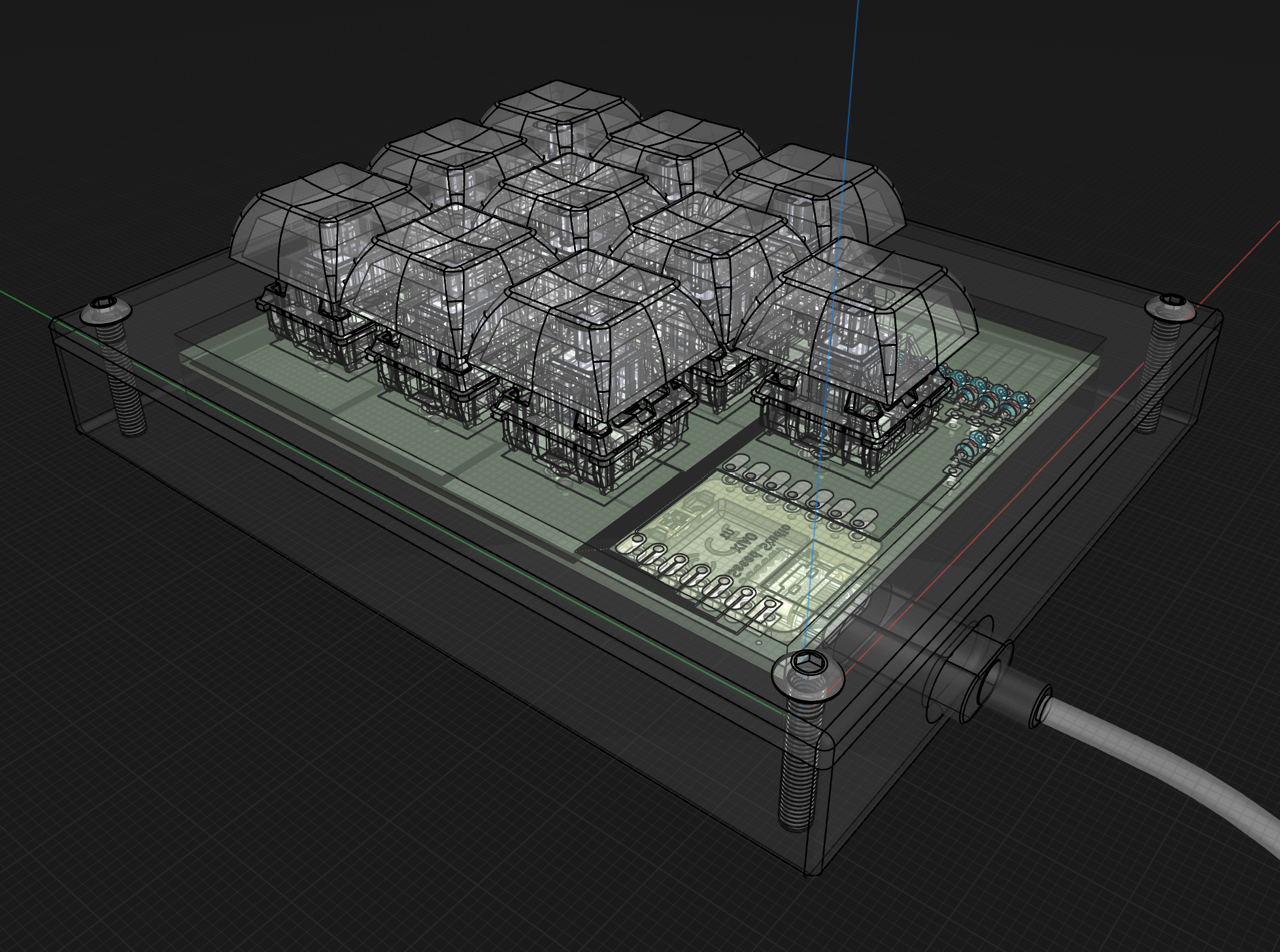

A custom macropad (which functions as guess what, a numpad) created for Hackpad (a mission for Stardance, an event run by Hack Club).
Numpad is a Macropad, a custom sort of mini-keyboard usually designed for faster inputting of hardcoded shortcuts/strings or specific functions. However, this macropad is made as a Numpad accessory for inputting an assortment of Unicode characters.
This project is made possible by Hackpad, a YSWS (you ship we ship) event on making a custom Macropad run by Hack Club.

Main components on the Numpad
Numpad bill of materials (BOM)
21 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MOUDLE-SEEEDUINO-XIAO | XIAO-Generic-Hybrid-14P-2.54-21X17.8MM | U1 |
| 10 | SW_Push_45deg | SW_Cherry_MX_1.00u_PCB | SW0, SW1, SW2, SW3, SW4, SW5, SW6, SW7 +2 |
| 10 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D0, D1, D2, D3, D4, D5, D6, D7 +2 |
Numpad design files
The KiCad project lives in the mouse625/Numpad repository on GitHub; these links point at the commit this page was built from.
- Layoutsource/PCB/hackpad.kicad_pcb
- Schematicsource/PCB/hackpad.kicad_sch
Numpad: common questions
How big is the Numpad PCB?
The Numpad measures 67.1 × 85.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Numpad?
21 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the Numpad design files?
From the mouse625/Numpad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Numpad design in my own project?
Yes, under the terms of its MIT license, which mouse625 chose for the repository.
